Dormer E5472NO1 5976379 G(BSP) machine tap with straight flute, 6 flutes, 2-inch diameter, 11 TPI, ISO 2284 standard. High Speed Steel (HSS) construction for steel and cast steel applications. 140mm overall length, 40mm connection diameter, 57mm pre-machined hole diameter. Coolant-through capability.

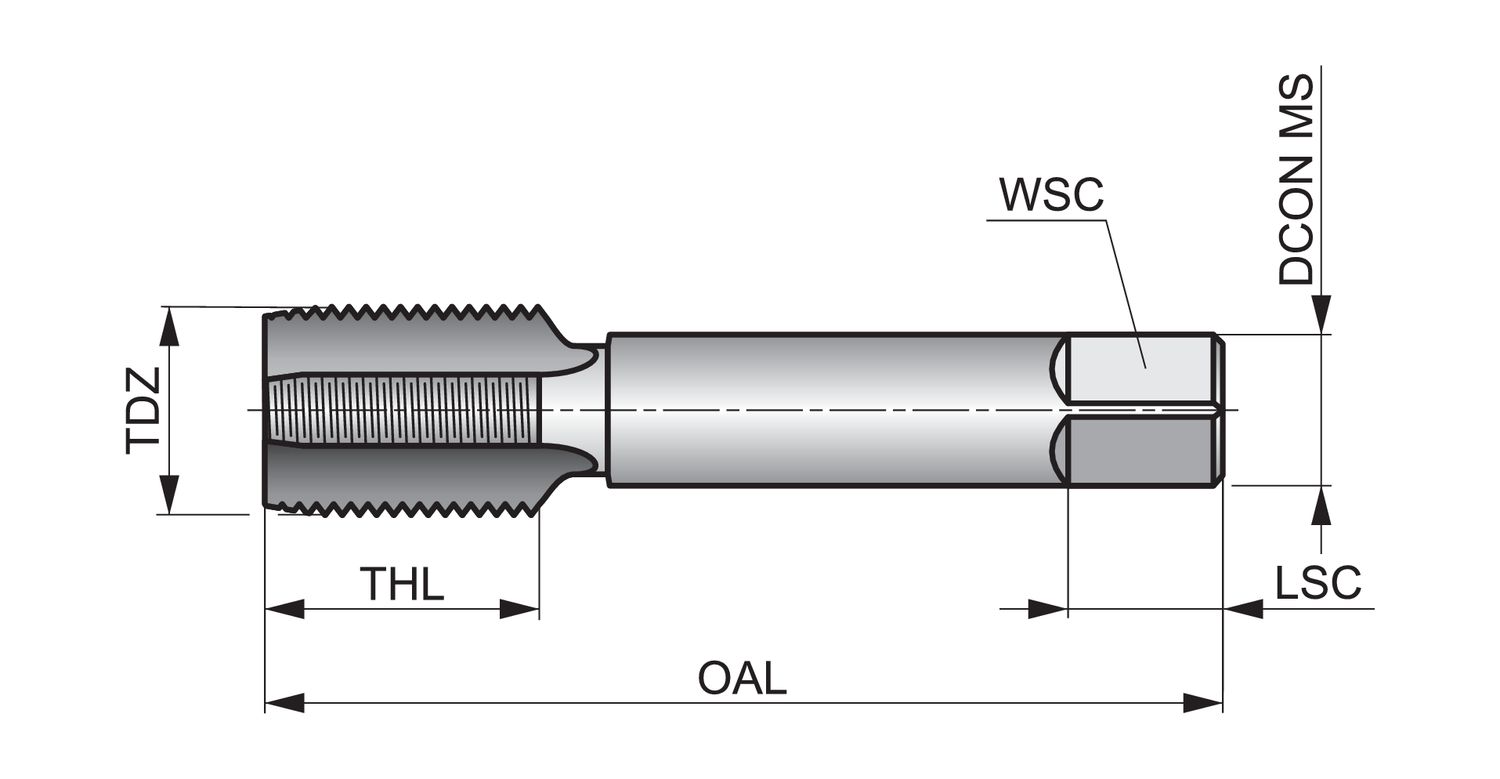

Basic Standard

ISO 2284

Clamping Length - millimeter (LSC)

34

Clamping width - fractional inch (WSC)

31.5

Clamping width - inch

1.2402

Coating

Bright

Connection diameter - inch (DCON MS)

1.5748

Connection diameter - millimeter (DCON MS)

40

Coolant supply property (CSP)

59.614

EDP number

157367

Flute count (NOF)

6

Flute Geometry (FDC)

Straight Flute Geometry

Hand (Cutting direction)

Right

Material

HSS

Material application

P - Steel and cast steel

MID number

5976379

Ordering code ANSI

E5472NO1

Overall length - inch (OAL)

5.5118

Overall length - millimeter (OAL)

140

Premachined hole diameter - inch (PHD)

2.2441

Premachined hole diameter - millimeter (PHD)

57

Shank

Cylindrical shank with Square

Thread diameter - inch (TD)

2.347

Thread diameter - millimeter (TD)

59.614

Thread diameter size (TDZ)

2"

Thread form (THFT)

G - British standard pipe fastening - G series

Threading length - inch (THL)

1.6142

Threading length - millimeter (THL)

41

Threads per inch (TPI)

11

Usable length (ULDR)

1.5
