Dormer E008M16 5973824 spiral flute machine tap, M16 x 2.00 mm thread, 45° helix, 3 flutes, HSS-E-PM (Powder Metallurgy Cobalt HSS), ANSI standard. For P - Steel and cast steel. Pre-drill hole diameter 14 mm. Overall length 0.48 mm.

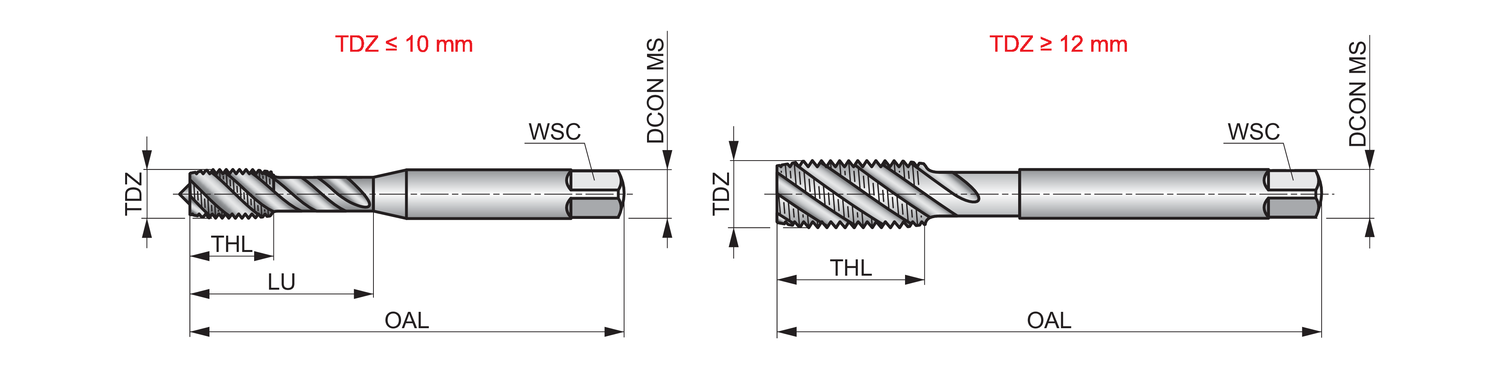

Basic Standard

ANSI

Clamping width - inch

0.36

Coating

Steam Tempered

Connection diameter - inch (DCON MS)

0.48

Connection diameter - millimeter (DCON MS)

12.19

Coolant supply property (CSP)

35/64

EDP number

580776

Flute count (NOF)

3

Flute Geometry (FDC)

Spiral Flute Geometry

Flute helix angle (FHA)

45

Hand (Cutting direction)

Right

Material

HSS-E-PM

Material application

P - Steel and cast steel

MID number

5973824

Ordering code ANSI

E008M16

Overall length - fractional inch (OAL)

3.13/16

Overall length - inch (OAL)

3.8125

Overall length - millimeter (OAL)

96.8

Premachined hole diameter - imperial (PHD)

35/64

Premachined hole diameter - inch (PHD)

0.5512

Premachined hole diameter - millimeter (PHD)

45

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

C 2 - 3

Thread diameter - millimeter (TD)

14

Thread diameter size (TDZ)

16

Thread form (THFT)

M - Metric coarse

Thread pitch - inch (TP)

0.0787

Thread pitch - millimeter (TP)

2

Threading length - inch (THL)

0.7087

Tolerance limit

D7

Usable length (ULDR)

2.5
