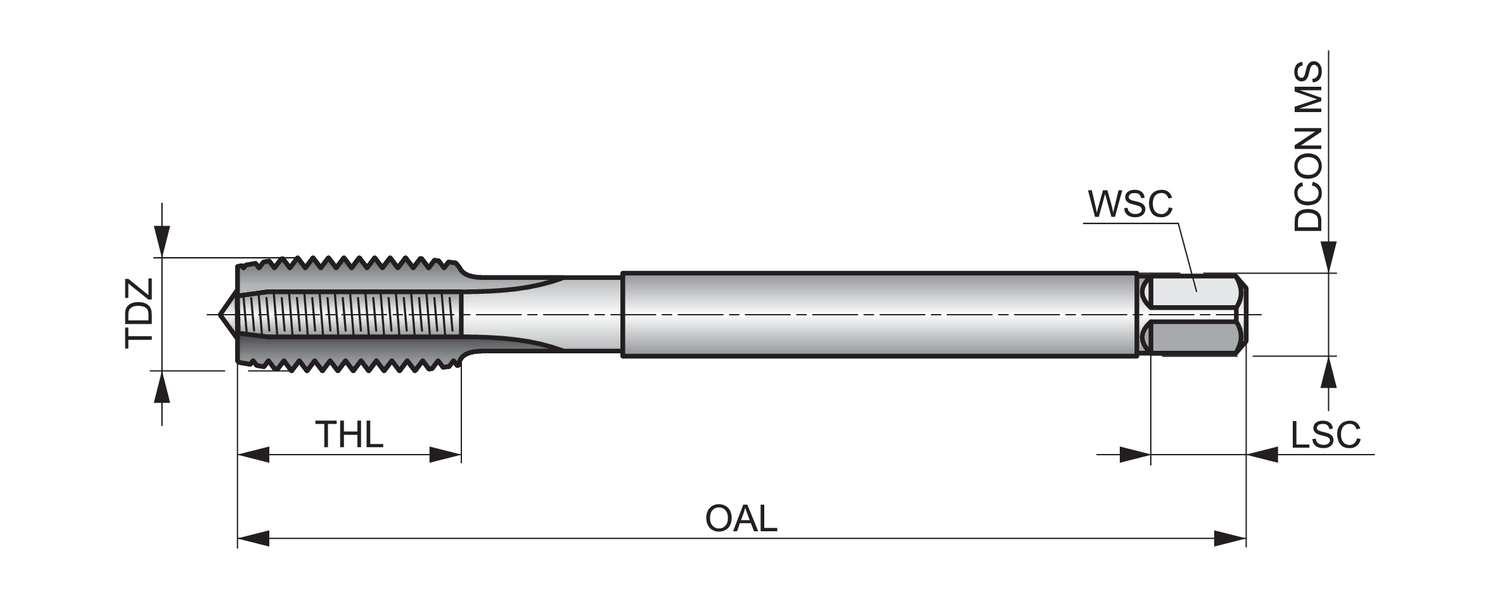

Dormer E251M14 5975894 M14x2.00 straight flute machine tap, 4-flute, DIN 376 standard, powder metallurgy cobalt HSS (HSS-E-PM) for steel and cast steel. 110mm overall length, 11mm shank diameter, 12mm pre-drill hole diameter.

Basic Standard

DIN 376

Clamping Length - millimeter (LSC)

12

Clamping width - fractional inch (WSC)

9

Clamping width - inch

0.3543

Coating

Bright

Connection diameter - inch (DCON MS)

0.4331

Connection diameter - millimeter (DCON MS)

11

EDP number

87206

Flute count (NOF)

4

Flute Geometry (FDC)

Straight Flute Geometry

Hand (Cutting direction)

Left

Material

HSS-E-PM

Material application

P - Steel and cast steel

MID number

5975894

Ordering code ANSI

E251M14

Overall length - inch (OAL)

4.3307

Overall length - millimeter (OAL)

110

Premachined hole diameter - inch (PHD)

0.4724

Premachined hole diameter - millimeter (PHD)

12

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

C 2 - 3

Thread diameter size (TDZ)

14

Thread form (THFT)

M - Metric coarse

Thread pitch - inch (TP)

0.0787

Thread pitch - millimeter (TP)

2

Threading length - inch (THL)

0.9843

Threading length - millimeter (THL)

25

Usable length (ULDR)

1.5
