Dormer E768M18X1.5 7350390 Machine Tap Blue Shark for Stainless Steel Spiral Flute 4FL M18 x 1.50 mm
MODEL 7350390
$155.55 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN/ANSI
Clamping Length - millimeter (LSC)
16
Clamping width - inch
0.404
Coating
SUPER-B
Coating property (CTP)
1
Connection diameter - inch (DCON MS)
0.542
Connection diameter - millimeter (DCON MS)
13.77
Coolant supply property (CSP)
41/64
EDP number
7350390
Flute count (NOF)
4
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
40
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
M - Stainless steel
MID number
7350390
Ordering code ANSI
E768M18X1.5
Overall length - inch (OAL)
4.3307
Overall length - millimeter (OAL)
0.542
Premachined hole diameter - imperial (PHD)
41/64
Premachined hole diameter - inch (PHD)
0.6496
Premachined hole diameter - millimeter (PHD)
40
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
C 2 - 3
Thread diameter - millimeter (TD)
16.5
Thread diameter size (TDZ)
18
Thread form (THFT)
MF - Metric fine
Thread pitch - inch (TP)
0.0591
Thread pitch - millimeter (TP)
1.5
Threading length - inch (THL)
0.6693
Threading length - millimeter (THL)
17
Tolerance limit
D7
Usable length (ULDR)
2.5

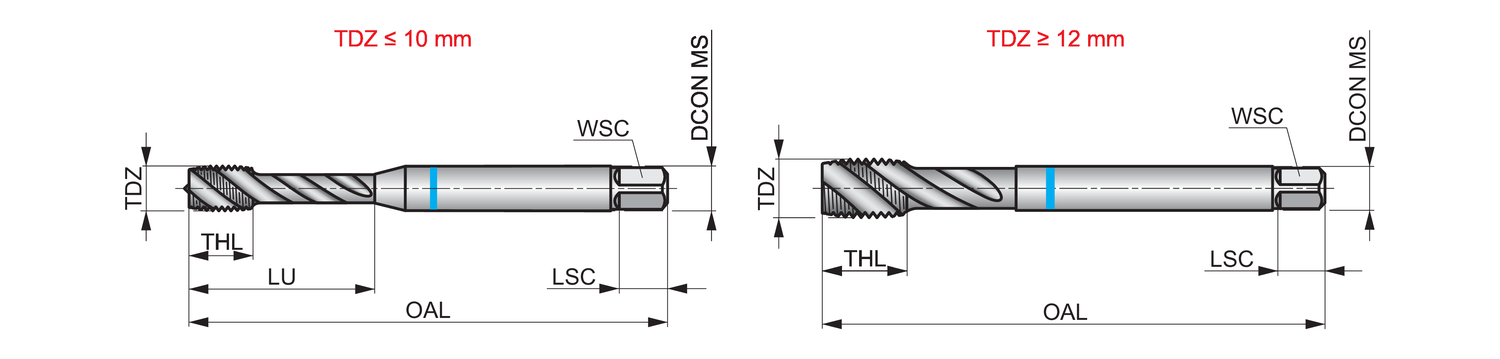

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M18 with 1.50 mm pitch and D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5420" shank and 0.4040" square drive, powder metallurgical HSS-E with Super-B coating and 40° helix angle for 2.5xD blind hole threading in stainless steel.
