Dormer E9121/2H3 7350365 Machine Tap Blue Shark for Stainless Steel Spiral Flute 4FL 1/2 inch x 20
MODEL 7350365
$57.33 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN/ANSI

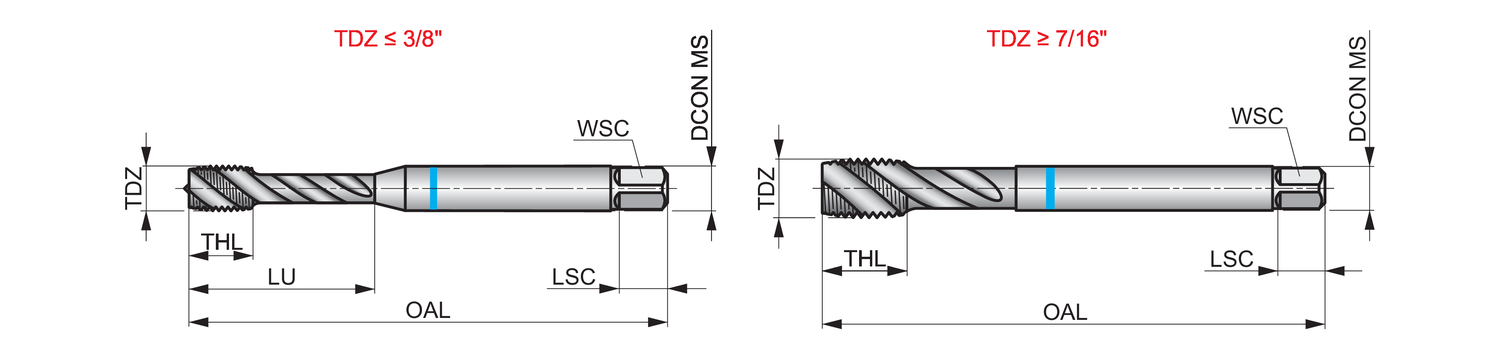

Clamping width - inch
0.273
Coating
SUPER-B
Coating property (CTP)
1
Connection diameter - inch (DCON MS)
0.367
Connection diameter - millimeter (DCON MS)
9.32
Coolant supply property (CSP)
29/64
EDP number
7350365
Flute count (NOF)
4
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
40
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
M - Stainless steel
MID number
7350365
Ordering code ANSI
E9121/2H3
Overall length - inch (OAL)
3.937
Overall length - millimeter (OAL)
0.367
Premachined hole diameter - imperial (PHD)
29/64
Premachined hole diameter - inch (PHD)
0.4528
Premachined hole diameter - millimeter (PHD)
40
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
C 2 - 3
Thread diameter - millimeter (TD)
11.5
Thread diameter size (TDZ)
1/2
Thread form (THFT)
UNF - Unified Fine
Threading length - inch (THL)
0.709
Threads per inch (TPI)
20
Tolerance limit
H3
Usable length (ULDR)
2.5
Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 1/2" with 20 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with Super-B coating and 40° helix angle for 2.5xD blind hole threading in stainless steel.
