Dormer EP00M7 5973445 Machine Tap Spiral Point 3FL M7 x 1.00 mm
MODEL 5973445
$23.59 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 371

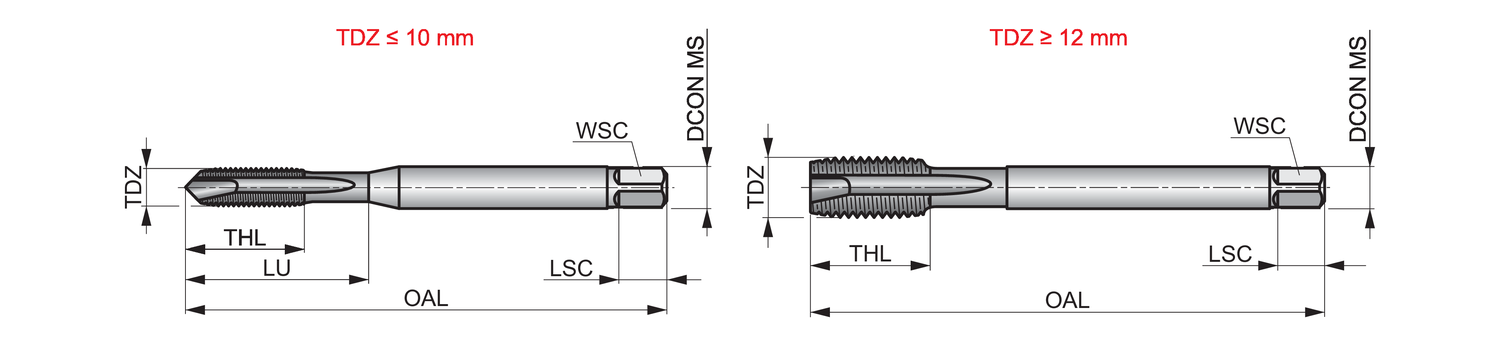

Clamping Length - millimeter (LSC)
8
Clamping width - fractional inch (WSC)
5.5
Clamping width - inch
0.2165
Coating
Bright
Connection diameter - inch (DCON MS)
7
EDP number
135884
Flute count (NOF)
3
Flute Geometry (FDC)
Spiral Point Geometry
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5973445
Ordering code ANSI
EP00M7
Overall length - inch (OAL)
3.1496
Overall length - millimeter (OAL)
80
Premachined hole diameter - inch (PHD)
0.2362
Premachined hole diameter - millimeter (PHD)
6
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
B 3.5 - 5
Thread diameter size (TDZ)
7
Thread form (THFT)
M - Metric coarse
Thread pitch - inch (TP)
0.0394
Thread pitch - millimeter (TP)
1
Threading length - inch (THL)
0.5906
Threading length - millimeter (THL)
15
Tolerance limit
D5
Usable length (ULDR)
2.5
Usable Length - inch (LU)
1.1811
Usable Length - millimeter (LU)
30
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M7 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium.
