Dormer EP206-32 5973745 spiral point machine tap, No.6-32 UNC thread, 3-flute, powder metallurgy cobalt HSS (HSS-E-PM), DIN 2184-1 standard. For through-hole threading in steel, cast steel, and non-ferrous metals. Pre-drill hole diameter 2.85 mm. Usable length factor 2.5.

Basic Standard

DIN 2184-1

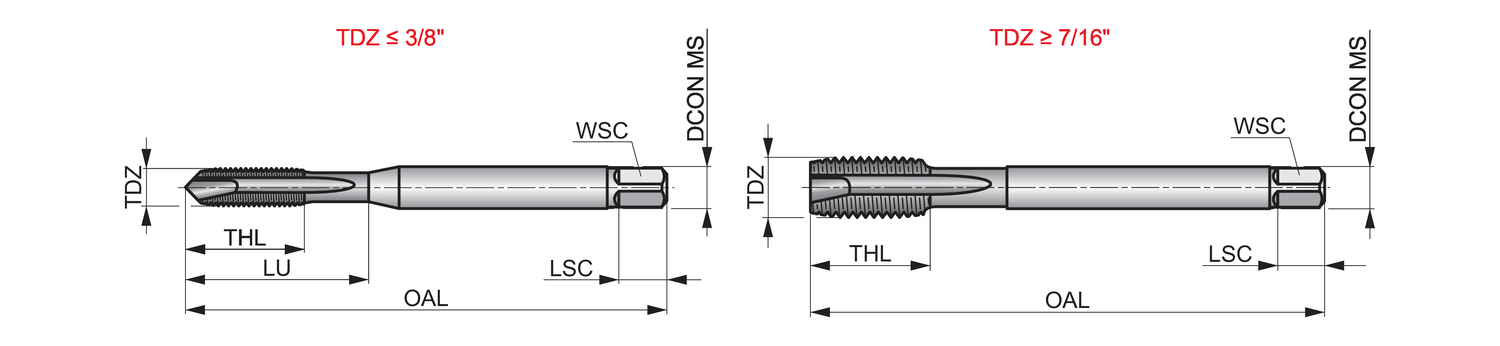

Clamping Length - millimeter (LSC)

6

Clamping width - fractional inch (WSC)

3

Clamping width - inch

0.1181

Coating

Bright

Connection diameter - inch (DCON MS)

4

Coolant supply property (CSP)

3.505

EDP number

138045

Flute count (NOF)

3

Flute Geometry (FDC)

Spiral Point Geometry

Hand (Cutting direction)

Right

Material

HSS-E-PM

Material application

N - Non-ferrous metals, P - Steel and cast steel

MID number

5973745

Ordering code ANSI

EP206-32

Overall length - inch (OAL)

2.2047

Overall length - millimeter (OAL)

56

Premachined hole diameter - inch (PHD)

0.1122

Premachined hole diameter - millimeter (PHD)

2.85

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

B 3.5 - 5

Thread diameter - inch (TD)

0.138

Thread diameter - millimeter (TD)

3.505

Thread diameter size (TDZ)

6

Thread form (THFT)

UNC - Unified Coarse

Threading length - inch (THL)

0.4331

Threading length - millimeter (THL)

11

Threads per inch (TPI)

32

Tolerance limit

H2

Usable length (ULDR)

2.5

Usable Length - inch (LU)

0.7874

Usable Length - millimeter (LU)

20
