Dormer EP411 5973963 G(BSP) spiral point machine tap, 1" x 11 thread, 4-flute, powder metallurgy cobalt HSS (HSS-E-PM), DIN 5156 standard. For steel and cast steel (P material group). Pre-drill hole diameter 30.75 mm. Usable length factor 2.5, coolant-through capable.

Name: Dormer EP411 5973963 G(BSP) spiral point machine tap, 1" x 11 thread, 4-flute, powder metallurgy cobalt HSS (HSS-E-PM), DIN 5156 standard. For steel a
Brand: Dormer Pramet
Price: 320.57 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5973963

BRAND

Dormer Pramet

SKU

6082615

WEIGHT

1.389 lb

UOM

each

$320.57 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DIN 5156

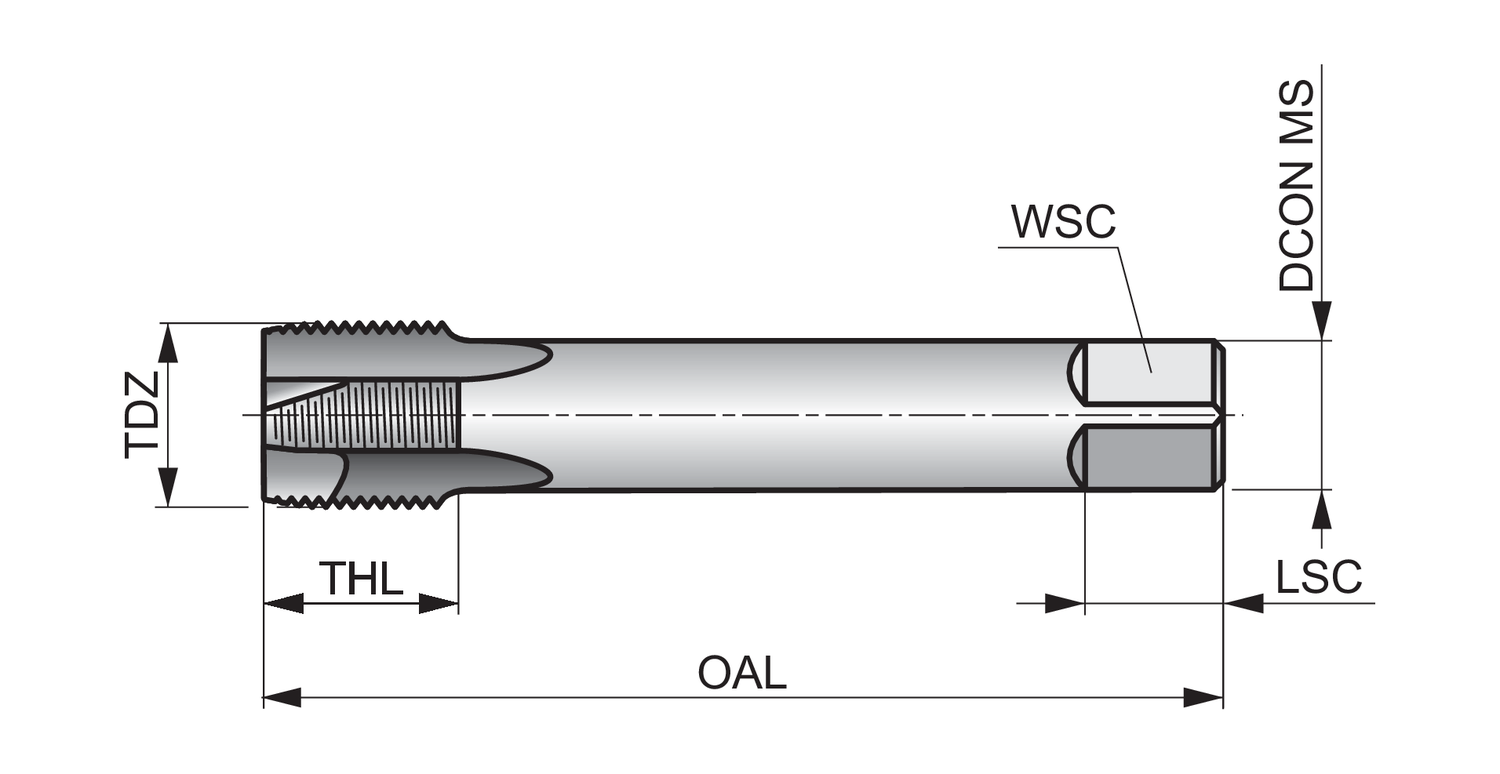

Clamping Length - millimeter (LSC)

Clamping width - fractional inch (WSC)

Clamping width - inch

0.7874

Coating

Steam Tempered

Connection diameter - inch (DCON MS)

Coolant supply property (CSP)

33.249

EDP number

149652

Flute count (NOF)

Flute Geometry (FDC)

Spiral Point Geometry

Hand (Cutting direction)

Right

Material

HSS-E-PM

Material application

P - Steel and cast steel

MID number

5973963

Ordering code ANSI

EP411

Overall length - inch (OAL)

6.2992

Overall length - millimeter (OAL)

160

Premachined hole diameter - inch (PHD)

1.2106

Premachined hole diameter - millimeter (PHD)

30.75

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

B 3.5 - 5

Thread diameter - inch (TD)

1.309

Thread diameter - millimeter (TD)

33.249

Thread diameter size (TDZ)

Thread form (THFT)

G - British standard pipe fastening - G series

Threading length - inch (THL)

1.1811

Threading length - millimeter (THL)

Threads per inch (TPI)

Usable length (ULDR)

2.5

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for British Standard Pipe thread G 1" with 11 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 25.0mm shank and 20.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
