Image for Illustration purposes only. Actual product may vary
Dormer EX00M36 5973616 Machine Tap Spiral Flute 45° 4FL M36 x 4.00 mm
MODEL 5973616
$317.75 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DIN 376

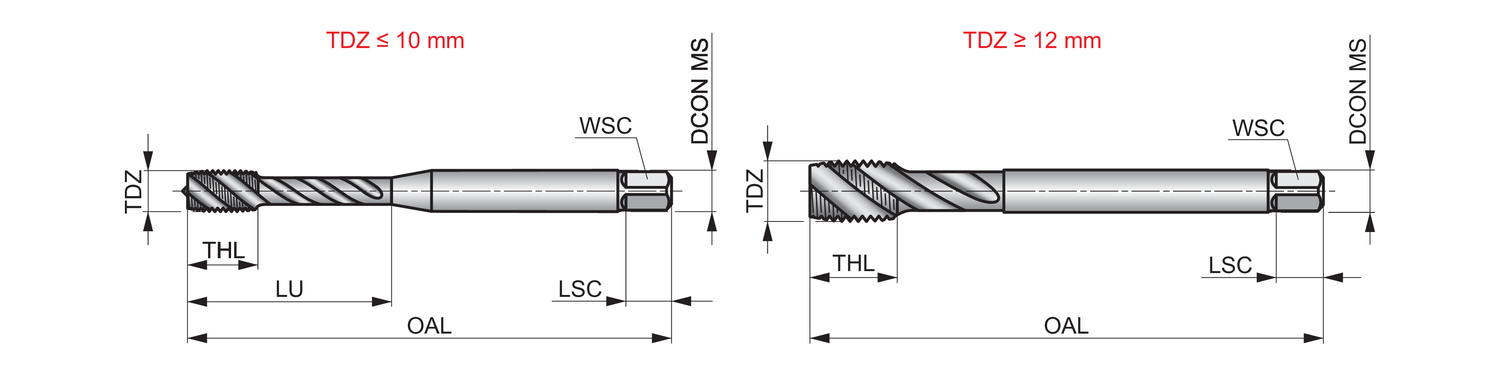

Clamping Length - millimeter (LSC)
25
Clamping width - inch
0.8661
Clamping width - millimeter (WSC)
22
Coating
Bright
Connection diameter - inch (DCON MS)
28
Connection diameter - millimeter (DCON MS)
22
EDP number
136874
Flute count (NOF)
4
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
45
Hand (Cutting direction)
Right
Material
HSS-E-PM
Material application
N - Non-ferrous metals, P - Steel and cast steel
MID number
5973616
Ordering code ANSI
EX00M36
Overall length - inch (OAL)
7.874
Overall length - millimeter (OAL)
200
Premachined hole diameter - inch (PHD)
1.2598
Premachined hole diameter - millimeter (PHD)
45
Shank
Cylindrical shank with Square
Tap chamfer style (TCS)
C 2 - 3
Thread diameter - millimeter (TD)
32
Thread diameter size (TDZ)
36
Thread form (THFT)
M - Metric coarse
Thread pitch - inch (TP)
0.1575
Thread pitch - millimeter (TP)
4
Threading length - inch (THL)
1.5748
Threading length - millimeter (THL)
40
Tolerance limit
D9
Usable length (ULDR)
2.5
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M36 with 4.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 28.0mm shank and 22.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium.
