Dormer EX00M86G 5973701 spiral flute machine tap, M8 x 1.25 mm thread, 3-flute, 45° helix, powder metallurgy cobalt HSS (HSS-E-PM), DIN 371 standard. Pre-drill hole diameter 6.8 mm. For non-ferrous metals and steel/cast steel.

Basic Standard

DIN 371

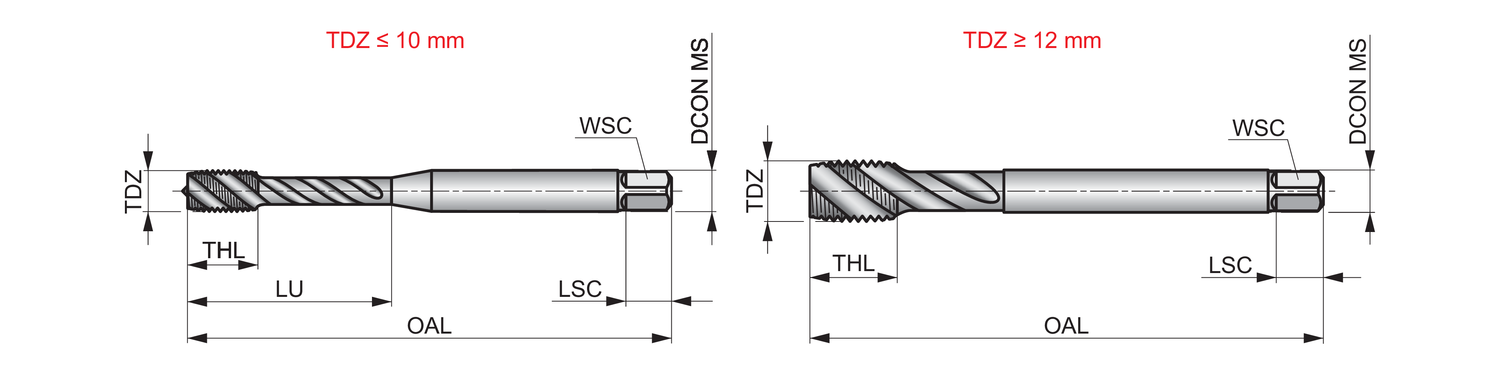

Clamping Length - millimeter (LSC)

9

Clamping width - inch

0.2441

Clamping width - millimeter (WSC)

6.2

Coating

Bright

Connection diameter - inch (DCON MS)

8

Connection diameter - millimeter (DCON MS)

6.2

EDP number

136430

Flute count (NOF)

3

Flute Geometry (FDC)

Spiral Flute Geometry

Flute helix angle (FHA)

45

Hand (Cutting direction)

Right

Material

HSS-E-PM

Material application

N - Non-ferrous metals, P - Steel and cast steel

MID number

5973701

Ordering code ANSI

EX00M86G

Overall length - inch (OAL)

3.5433

Overall length - millimeter (OAL)

90

Premachined hole diameter - inch (PHD)

0.2677

Premachined hole diameter - millimeter (PHD)

45

Shank

Cylindrical shank with Square

Tap chamfer style (TCS)

C 2 - 3

Thread diameter - millimeter (TD)

6.8

Thread diameter size (TDZ)

8

Thread form (THFT)

M - Metric coarse

Thread pitch - inch (TP)

0.0492

Thread pitch - millimeter (TP)

1.25

Threading length - inch (THL)

0.4724

Threading length - millimeter (THL)

12

Usable length (ULDR)

2.5

Usable Length - inch (LU)

1.378

Usable Length - millimeter (LU)

35
