Dormer F100M14 5978260 M14x2.00 ISO 2568 Gun ...

$81.49 Each Prices subject to change

Know When You’re Overpaying
The MROSupply Chrome Extension instantly alerts you when the part you’re viewing is available for less at MROSupply.
Download Now
We never track your browsing or search history
We never sell your data to third parties
5978260

Image for Illustration purposes only. Actual product may vary

View in markdown

Dormer F100M14 5978260 M14x2.00 ISO 2568 gun nosed threading die, 38mm body diameter, 14mm overall length. High Speed Steel (HSS) for threading cast iron, stainless steel, non-ferrous metals, and steel. Die chamfer to pitch ratio 1.75.

MODEL 5978260

BRAND

Dormer Pramet

SKU

6082877

WEIGHT

0.203 lb

UOM

each

$81.49 Each

Prices are subject to change

ADD $18.51 MORE FOR FREE SHIPPING

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ISO 2568

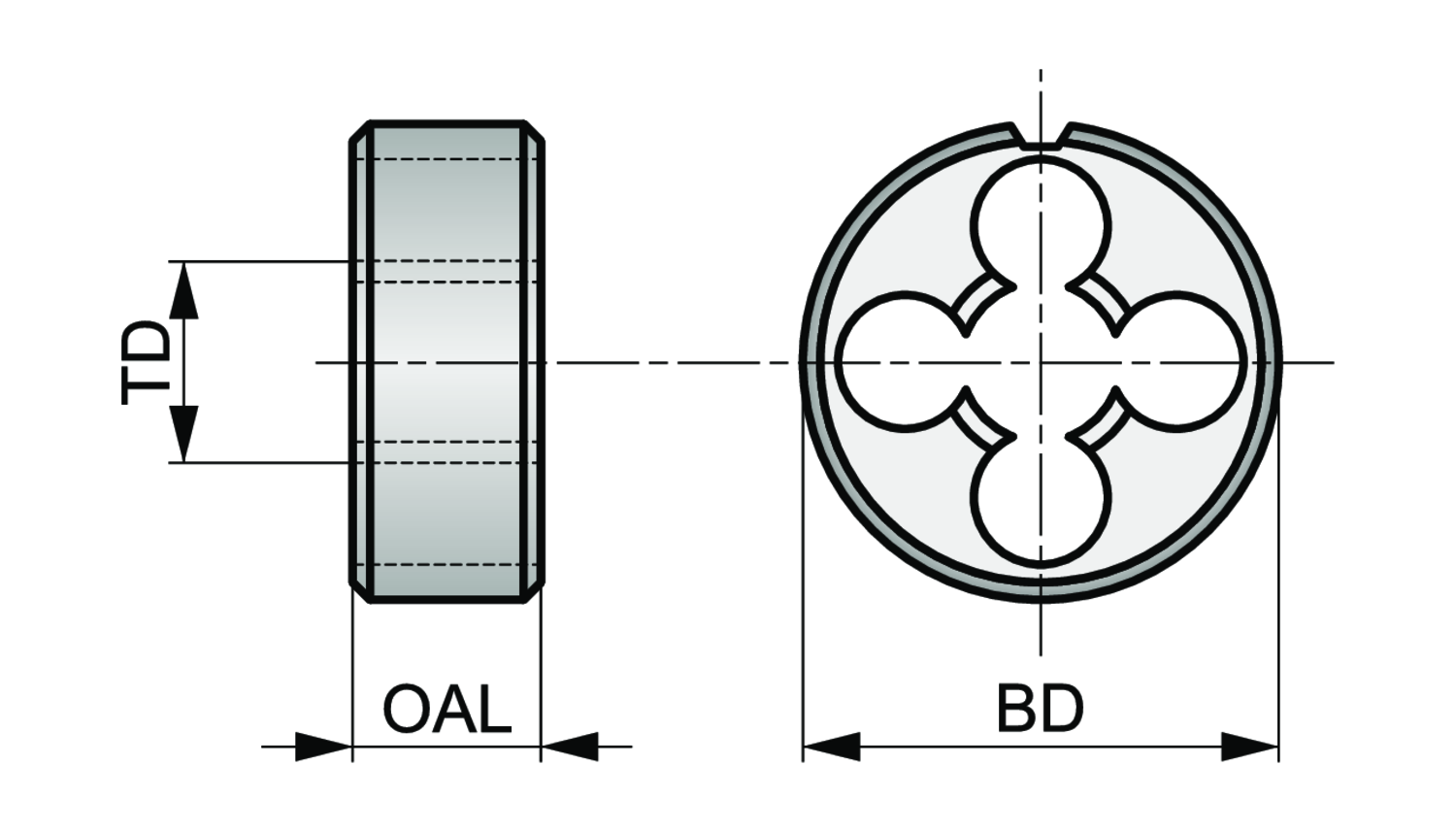

Body diameter - inch (BD)

1.4961

Body diameter - millimeter (BD)

38

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

EDP number

103784

Hand (Cutting direction)

Right

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5978260

Ordering code ANSI

F100M14

Overall length - inch (OAL)

0.5512

Overall length - millimeter (OAL)

14

Thread diameter - millimeter (TD)

14

Thread diameter size (TDZ)

14

Thread form (THFT)

M - Metric coarse

Thread pitch - millimeter (TP)

2

Solid round die with a gun nose, for ISO-Metric thread M14 with 2.00 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 38mm outside diameter and 14mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
