Dormer F100M2.6 5978284 threading die without gun-nose, M2.6x0.45 thread, 16mm body diameter, 5mm overall length. High Speed Steel (HSS) construction per ISO 2568 standard. Suitable for K (cast iron), M (stainless steel), N (non-ferrous metals), and P (steel/cast steel) materials. 1.75 die chamfer to pitch ratio.

Name: Dormer F100M2.6 5978284 threading die without gun-nose, M2.6x0.45 thread, 16mm body diameter, 5mm overall length. High Speed Steel (HSS) construction
Brand: Dormer Pramet
Price: 50.79 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5978284

BRAND

Dormer Pramet

SKU

6082882

WEIGHT

0.020 lb

UOM

each

$50.79 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ISO 2568

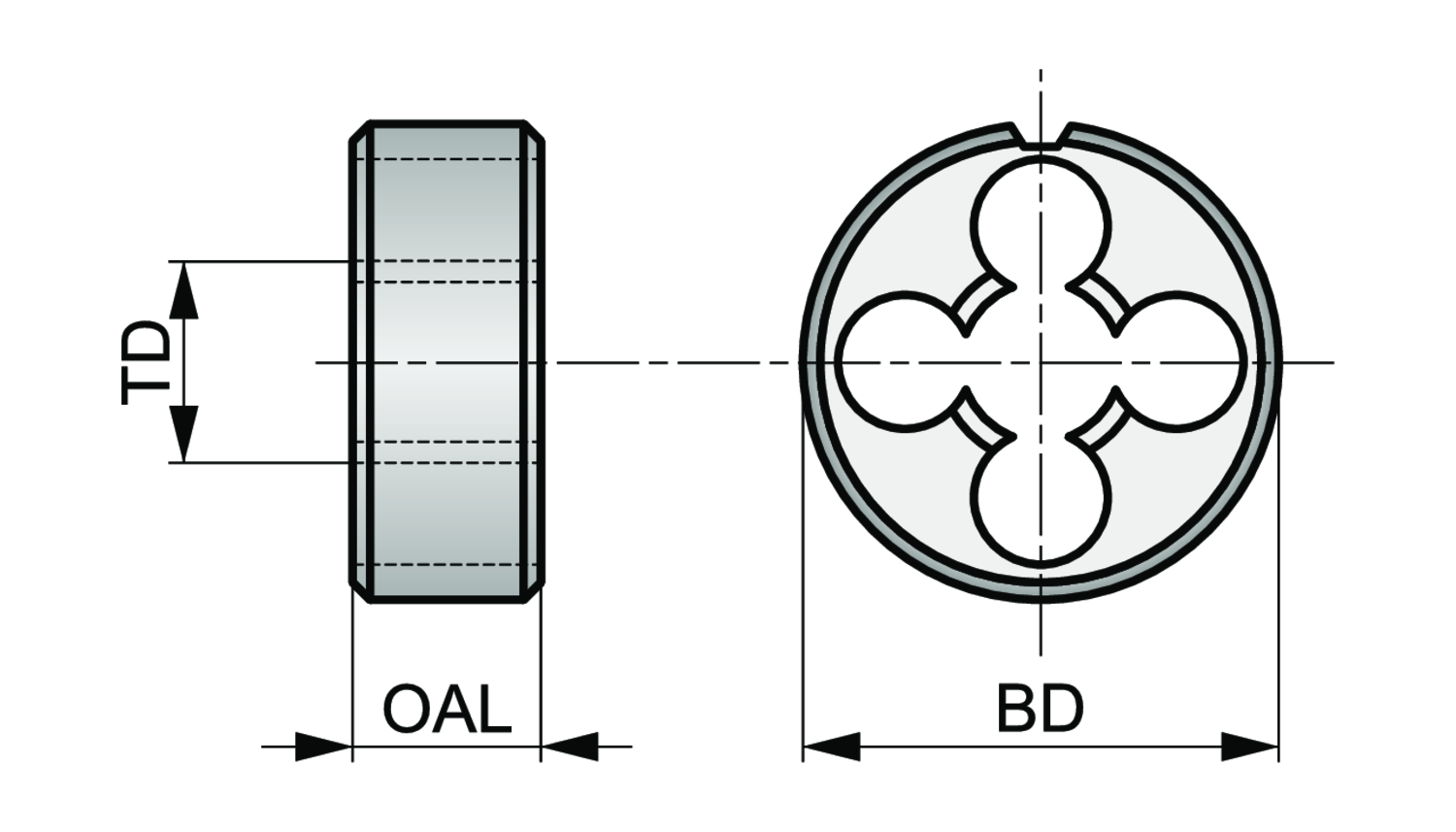

Body diameter - inch (BD)

0.6299

Body diameter - millimeter (BD)

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

EDP number

103838

Hand (Cutting direction)

Right

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5978284

Ordering code ANSI

F100M2.6

Overall length - inch (OAL)

0.1969

Overall length - millimeter (OAL)

Thread diameter - millimeter (TD)

2.6

Thread diameter size (TDZ)

2.6

Thread form (THFT)

M - Metric coarse

Thread pitch - millimeter (TP)

0.45

Solid round die with a gun nose, for ISO-Metric thread M2.6 with 0.45 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 16mm outside diameter and 5mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
