Dormer F108M3 5978568 M3x0.50 gun nosed threading die, ISO 2568 standard, Cobalt High Speed Steel (HSS-E) for threading steel, cast steel, stainless steel, cast iron, and non-ferrous metals. 20mm body diameter, 5mm overall length, 2.25 chamfer to pitch ratio.
MODEL 5978568
$59.17 Each
Prices are subject to change
ADD $40.83 MORE FOR FREE SHIPPING
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
ISO 2568

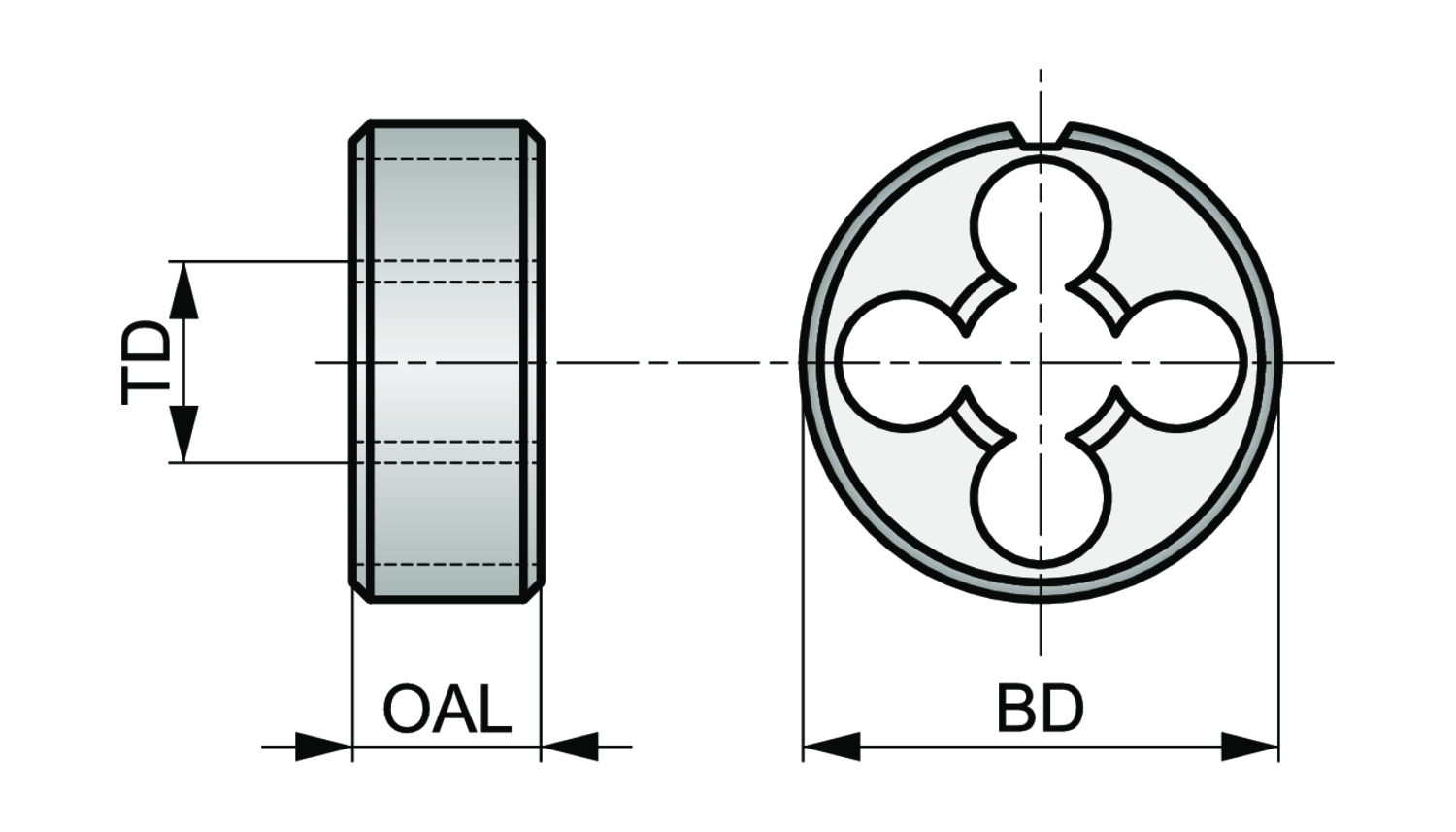

Body diameter - inch (BD)
0.7874
Body diameter - millimeter (BD)
20
Coating
Bright
Die chamfer to pitch ratio (DCPR)
2.25
EDP number
381274
Hand (Cutting direction)
Right
Material
HSS-E
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5978568
Ordering code ANSI
F108M3
Overall length - inch (OAL)
0.1969
Overall length - millimeter (OAL)
5
Thread diameter - millimeter (TD)
3
Thread diameter size (TDZ)
3
Thread form (THFT)
M - Metric coarse
Thread pitch - millimeter (TP)
0.5
Solid round die with a gun nose, for ISO-Metric thread M3 with 0.50 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 20mm outside diameter and 5mm thickness, cobalt based HSS-E with lapped surface finish for threading in alloy and tool steel, martensitic and austenitic stainless steel and austenitic or austempered ductile cast-iron.
