Image for Illustration purposes only. Actual product may vary

Dormer F110M18X1.0 5978652 MF gun nosed threading die, ISO 2568, M18x1.0 thread, 1.0 mm pitch, 45 mm body diameter, 14 mm overall length, 1.75 chamfer to pitch ratio. High Speed Steel (HSS) for steel, cast iron, stainless steel, and non-ferrous metals.

Name: Dormer F110M18X1.0 5978652 MF gun nosed threading die, ISO 2568, M18x1.0 thread, 1.0 mm pitch, 45 mm body diameter, 14 mm overall length, 1.75 chamfer
Brand: Dormer Pramet
Price: 133.4 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5978652

BRAND

Dormer Pramet

SKU

6082929

WEIGHT

0.309 lb

UOM

each

$133.40 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ISO 2568

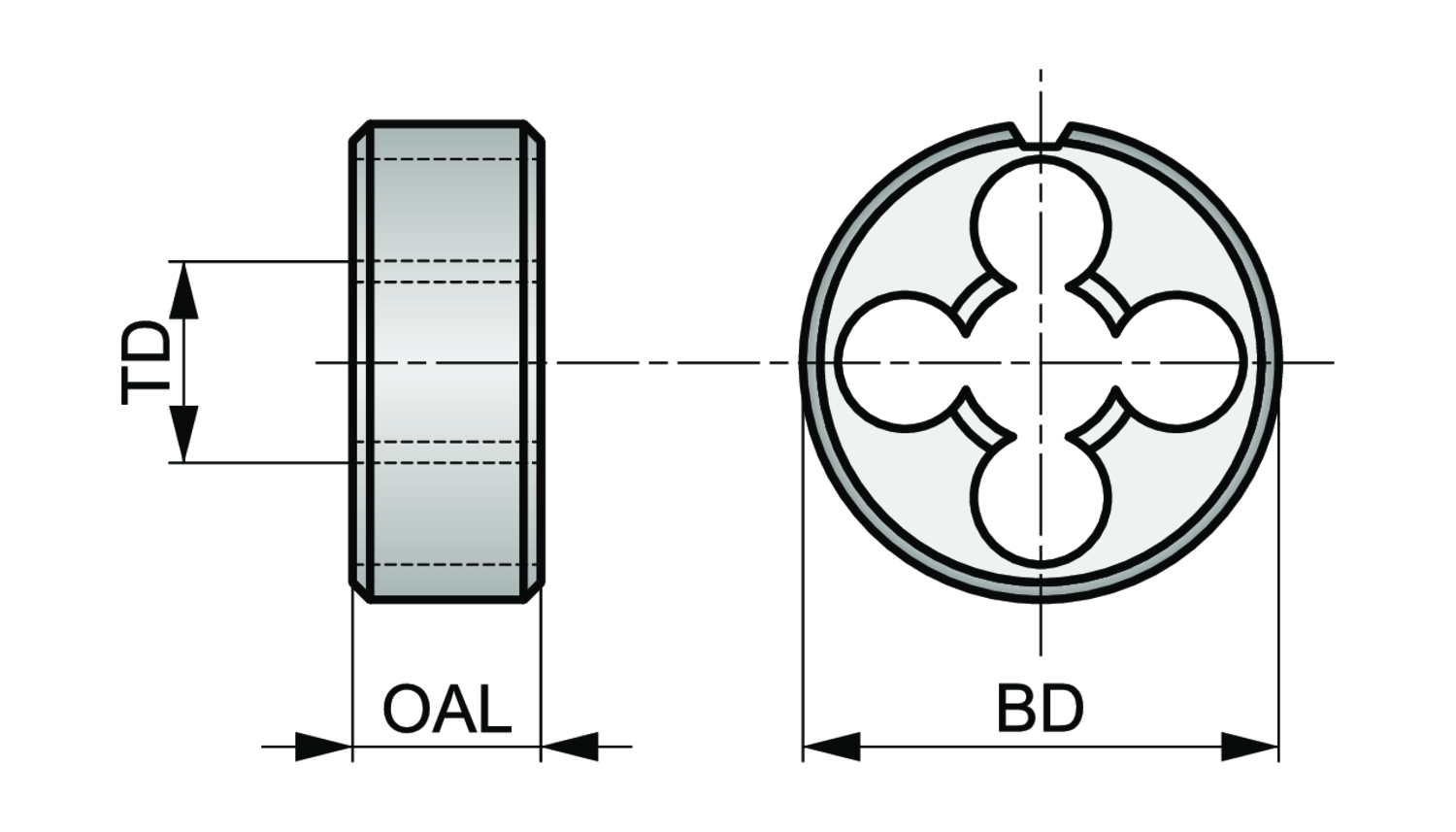

Body diameter - inch (BD)

1.7717

Body diameter - millimeter (BD)

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

EDP number

104101

Hand (Cutting direction)

Right

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5978652

Ordering code ANSI

F110M18X1.0

Overall length - inch (OAL)

0.5512

Overall length - millimeter (OAL)

Thread diameter - millimeter (TD)

Thread diameter size (TDZ)

Thread form (THFT)

MF - Metric fine

Thread pitch - millimeter (TP)

Solid round die with a gun nose, for ISO-Metric Fine thread M18 with 1.00 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 45mm outside diameter and 14mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
