Dormer F1405/16 5977916 BSW gun nosed threading die, 5/16 inch diameter, 18 threads per inch, ISO 2568 standard. Suitable for threading in steel, cast steel, stainless steel, cast iron, and non-ferrous metals. Gun nose design facilitates easy starting and chip evacuation.

Name: Dormer F1405/16 5977916 BSW gun nosed threading die, 5/16 inch diameter, 18 threads per inch, ISO 2568 standard. Suitable for threading in steel, cast
Brand: Dormer Pramet
Price: 62.52 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5977916

BRAND

Dormer Pramet

SKU

6082985

WEIGHT

0.053 lb

UOM

each

$62.52 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ISO 2568

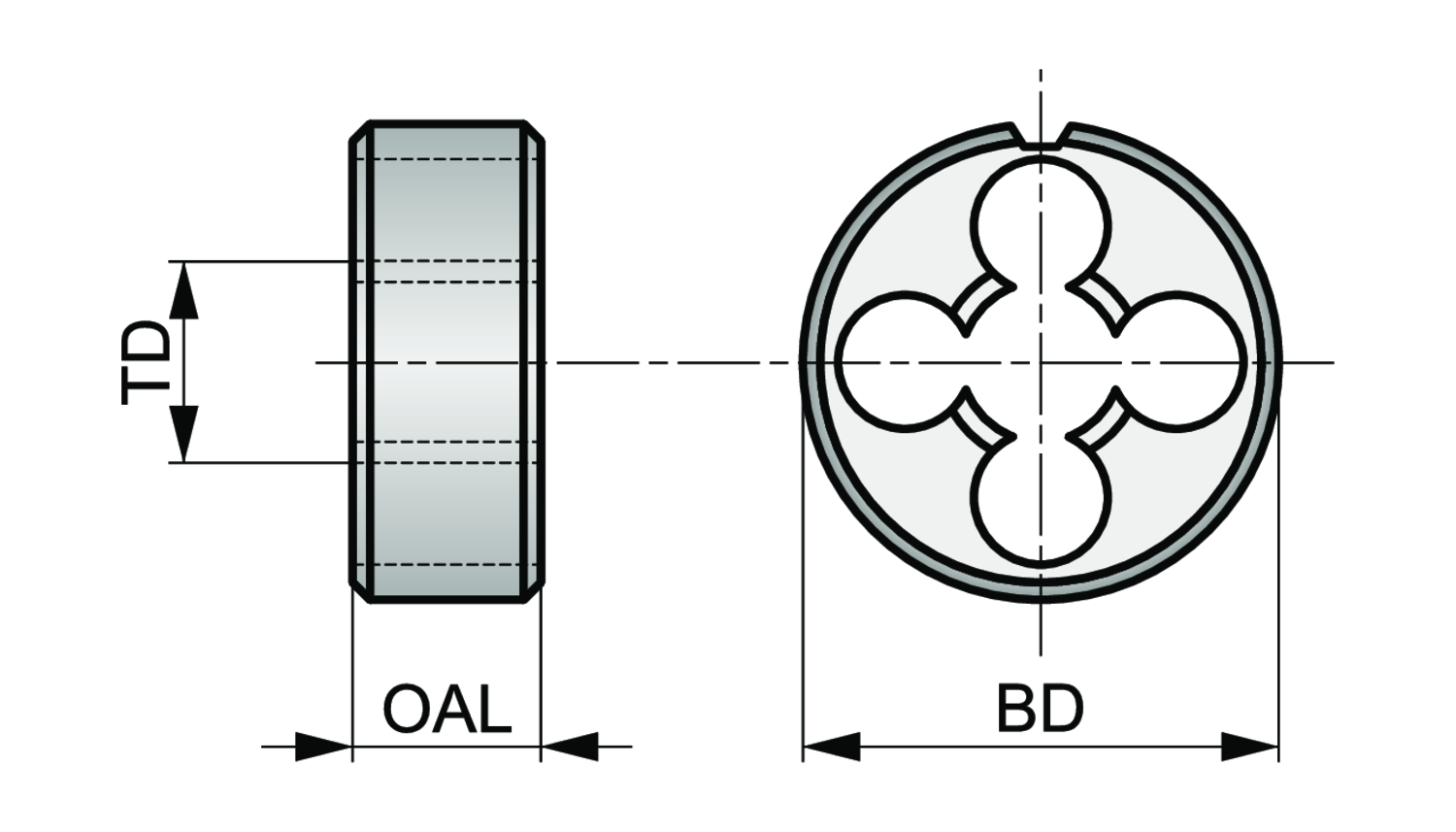

Body diameter - inch (BD)

0.9843

Body diameter - millimeter (BD)

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

EDP number

104675

Hand (Cutting direction)

Right

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

Material code (BMC)

HSS

MID number

5977916

Ordering code ANSI

F1405/16

Overall length - inch (OAL)

0.3543

Overall length - millimeter (OAL)

Thread diameter - millimeter (TD)

7.94

Thread diameter size (TDZ)

5/16

Thread form (THFT)

BSW - British standard Whitworth

Threads per inch (TPI)

Solid round die with a gun nose, for British Standard Whitworth thread BSW 5/16" with 18 TPI and medium class of fit, dimensions according to ISO 2568 standard with 25mm outside diameter and 9mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
