Dormer F1703/4 5977739 G(BSP) gun nosed threading die, 3/4 inch diameter with 14 threads per inch, conforming to ISO 2568. Suitable for threading British Standard Pipe threads in cast iron, stainless steel, non-ferrous metals, and steel/cast steel workpieces.

Name: Dormer F1703/4 5977739 G(BSP) gun nosed threading die, 3/4 inch diameter with 14 threads per inch, conforming to ISO 2568. Suitable for threading Brit
Brand: Dormer Pramet
Price: 200.39 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5977739

BRAND

Dormer Pramet

SKU

6083003

WEIGHT

0.396 lb

UOM

each

$200.39 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ISO 2568

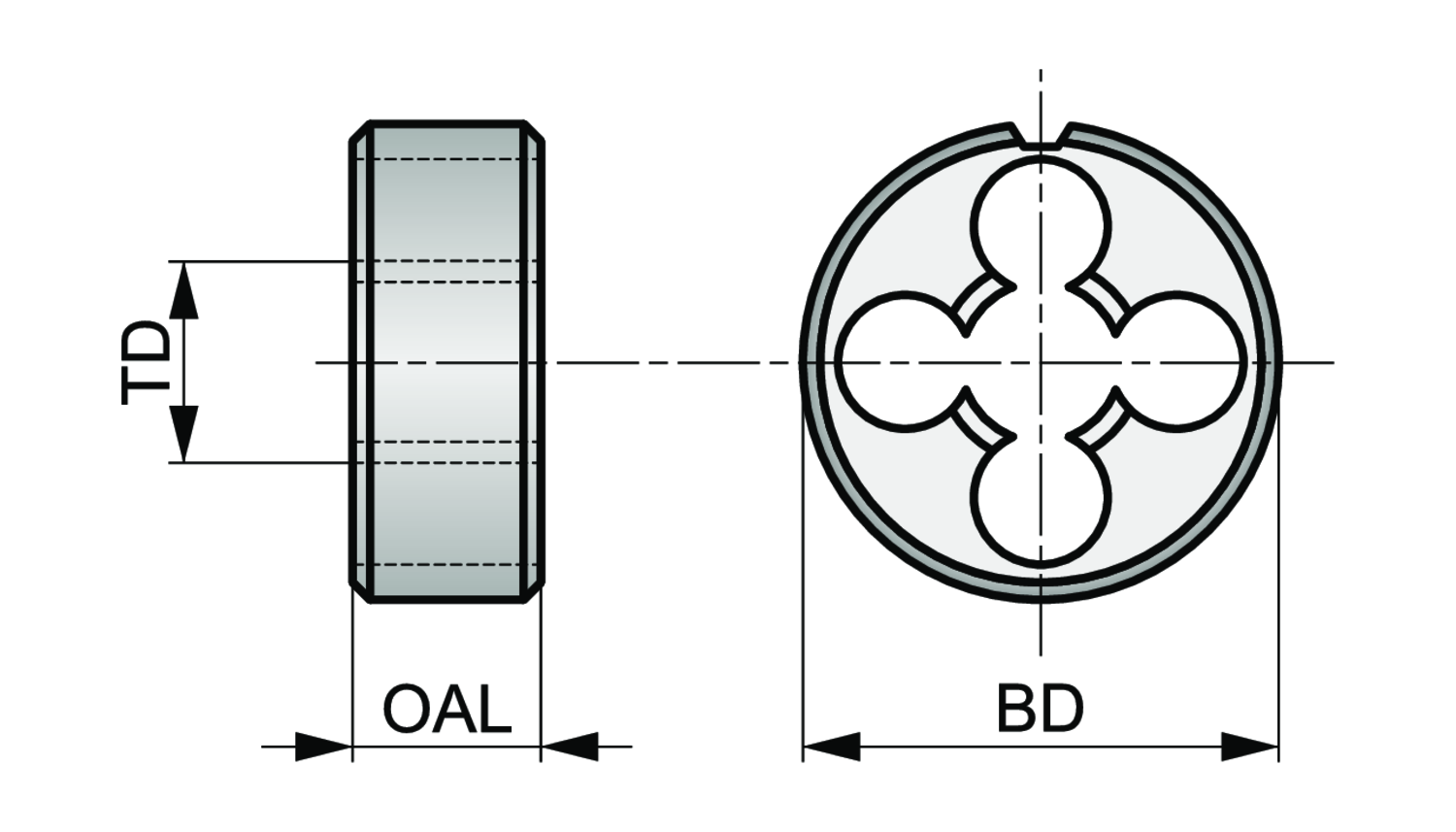

Body diameter - inch (BD)

2.1654

Body diameter - millimeter (BD)

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

EDP number

104873

Hand (Cutting direction)

Right

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

Material code (BMC)

HSS

MID number

5977739

Ordering code ANSI

F1703/4

Overall length - inch (OAL)

0.6299

Overall length - millimeter (OAL)

Thread diameter - millimeter (TD)

26.44

Thread diameter size (TDZ)

3/4

Thread form (THFT)

G - British standard pipe fastening - G series

Threads per inch (TPI)

Solid round die with a gun nose, for British Standard Pipe thread G 3/4" with 14 TPI and class A tolerance, dimensions according to ISO 2568 standard with 55mm outside diameter and 16mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
