Image for Illustration purposes only. Actual product may vary

Dormer F1803/8 5977774 NPT gun nosed threading die, 3/8" x 18 TPI, High Speed Steel (HSS), ISO 2568. 45mm body diameter, 14mm overall length, 1.75 die chamfer to pitch ratio. For K (cast iron), M (stainless steel), N (non-ferrous metals), and P (steel and cast steel) materials.

Name: Dormer F1803/8 5977774 NPT gun nosed threading die, 3/8" x 18 TPI, High Speed Steel (HSS), ISO 2568. 45mm body diameter, 14mm overall length, 1.75 die
Brand: Dormer Pramet
Price: 180.85 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5977774

BRAND

Dormer Pramet

SKU

6083012

WEIGHT

0.258 lb

UOM

each

$180.85 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ISO 2568

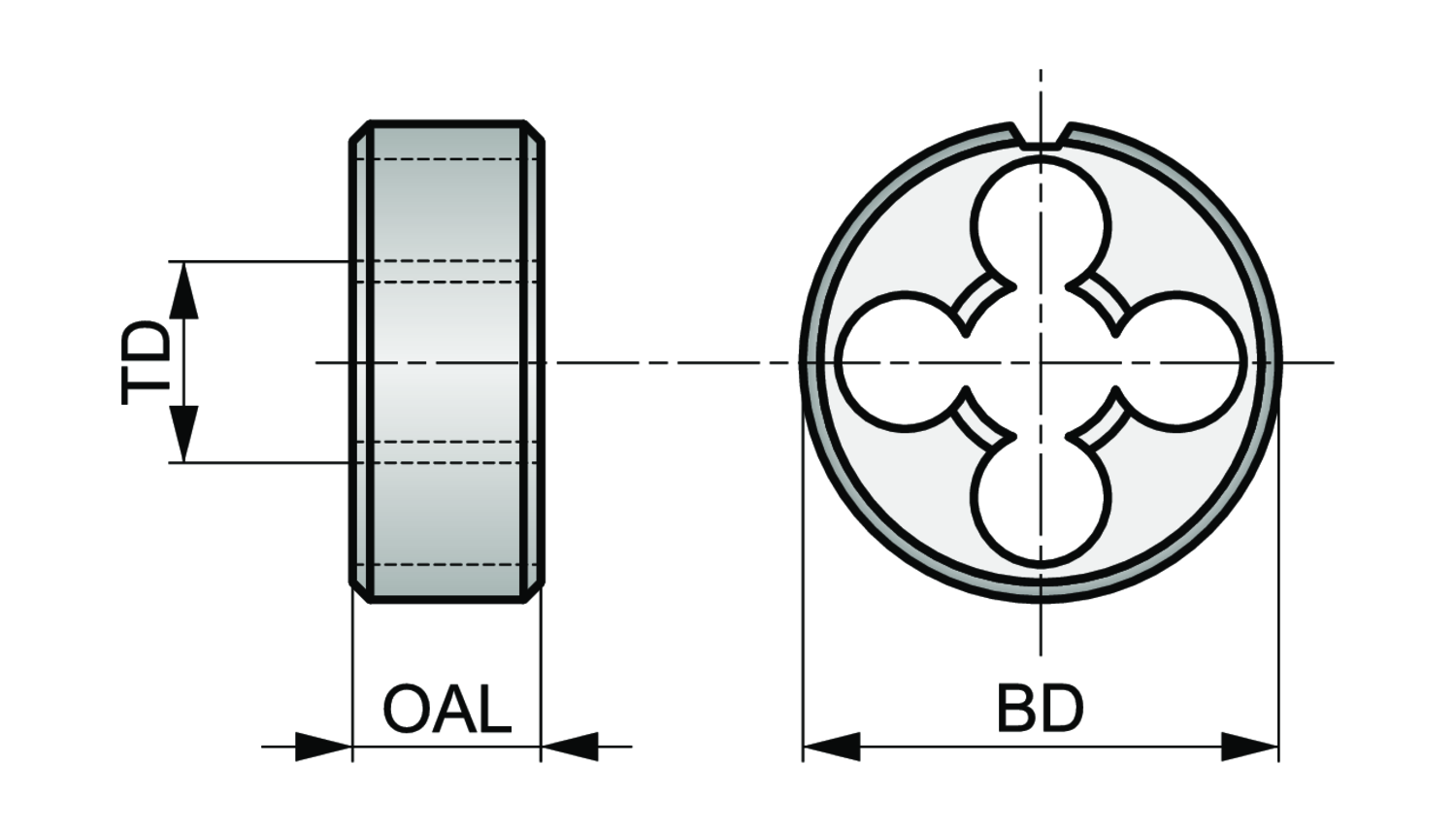

Body diameter - inch (BD)

1.7717

Body diameter - millimeter (BD)

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

EDP number

161609

Hand (Cutting direction)

Right

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5977774

Ordering code ANSI

F1803/8

Overall length - inch (OAL)

0.5512

Overall length - millimeter (OAL)

Thread diameter - millimeter (TD)

15.93

Thread diameter size (TDZ)

3/8

Thread form (THFT)

NPT - National taper pipe

Threads per inch (TPI)

Solid round die with a gun nose, for National Pipe Taper thread NPT 3/8" with 18 TPI and normal class of fit, dimensions according to ISO 2568 standard with 45mm outside diameter and 14mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
