Dormer F190PG13.5 5977785 PG13.5 gun nosed threading die, ISO 2568 standard, HSS, 18 TPI, 20.4mm thread diameter, 45mm body diameter, 14mm overall length. Suitable for K (cast iron), M (stainless steel), N (non-ferrous metals), and P (steel and cast steel) material applications.

Name: Dormer F190PG13.5 5977785 PG13.5 gun nosed threading die, ISO 2568 standard, HSS, 18 TPI, 20.4mm thread diameter, 45mm body diameter, 14mm overall len
Brand: Dormer Pramet
Price: 141.78 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5977785

BRAND

Dormer Pramet

SKU

6083014

WEIGHT

0.221 lb

UOM

each

$141.78 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ISO 2568

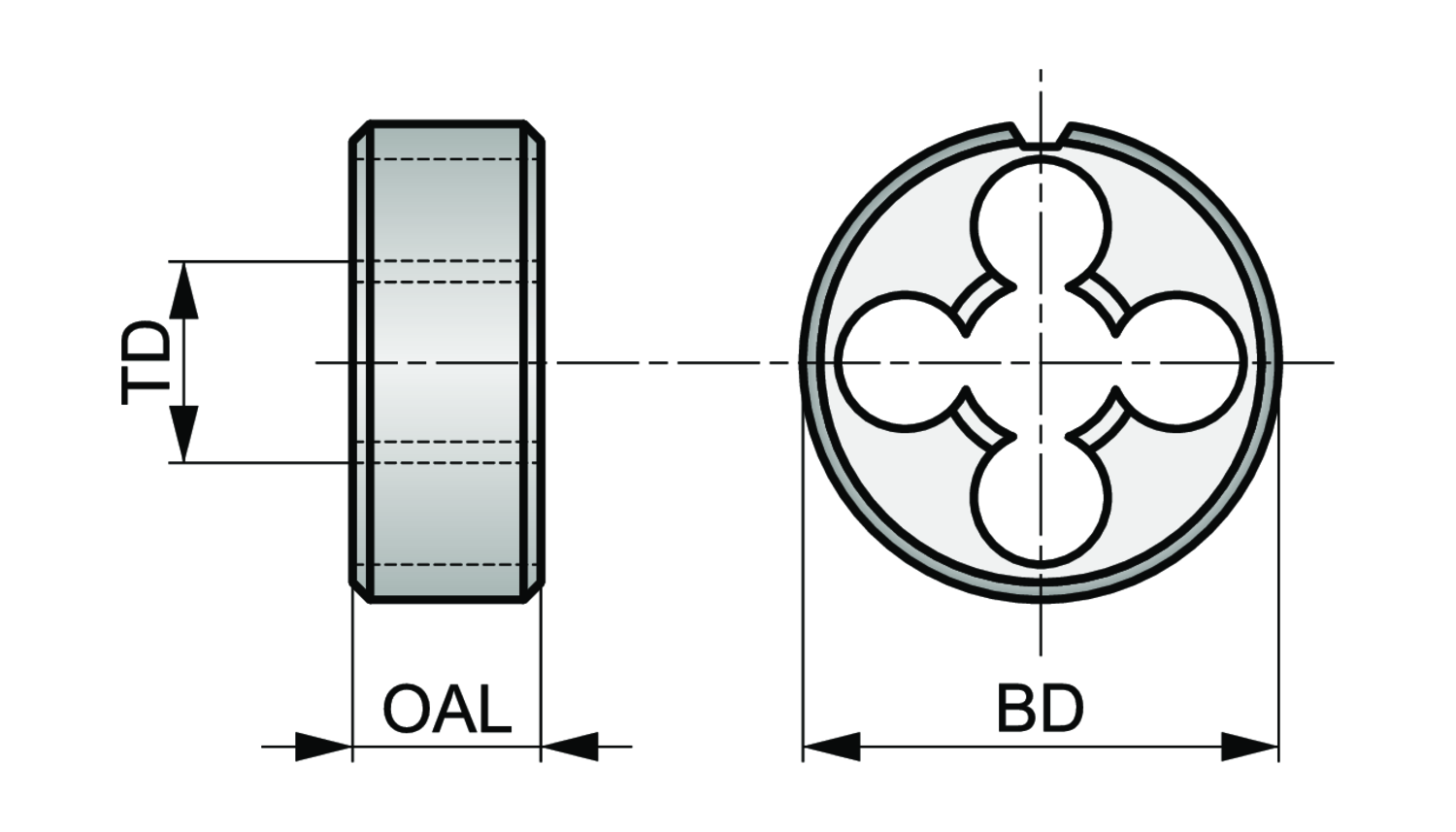

Body diameter - inch (BD)

1.7717

Body diameter - millimeter (BD)

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

EDP number

104927

Hand (Cutting direction)

Right

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5977785

Ordering code ANSI

F190PG13.5

Overall length - inch (OAL)

0.5512

Overall length - millimeter (OAL)

Thread diameter - millimeter (TD)

20.4

Thread diameter size (TDZ)

13.5

Thread form (THFT)

Threads per inch (TPI)

Solid round die with a gun nose, for Panzergewinde (steel conduit thread) PG13.5 with 18 TPI and normal class of fit, dimensions according to ISO 2568 standard with 45mm outside diameter and 14mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
