Image for Illustration purposes only. Actual product may vary
Dormer F190PG9 5977817 PG Gun Nosed Die ISO 2568 PG9
MODEL 5977817
$120.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
ISO 2568

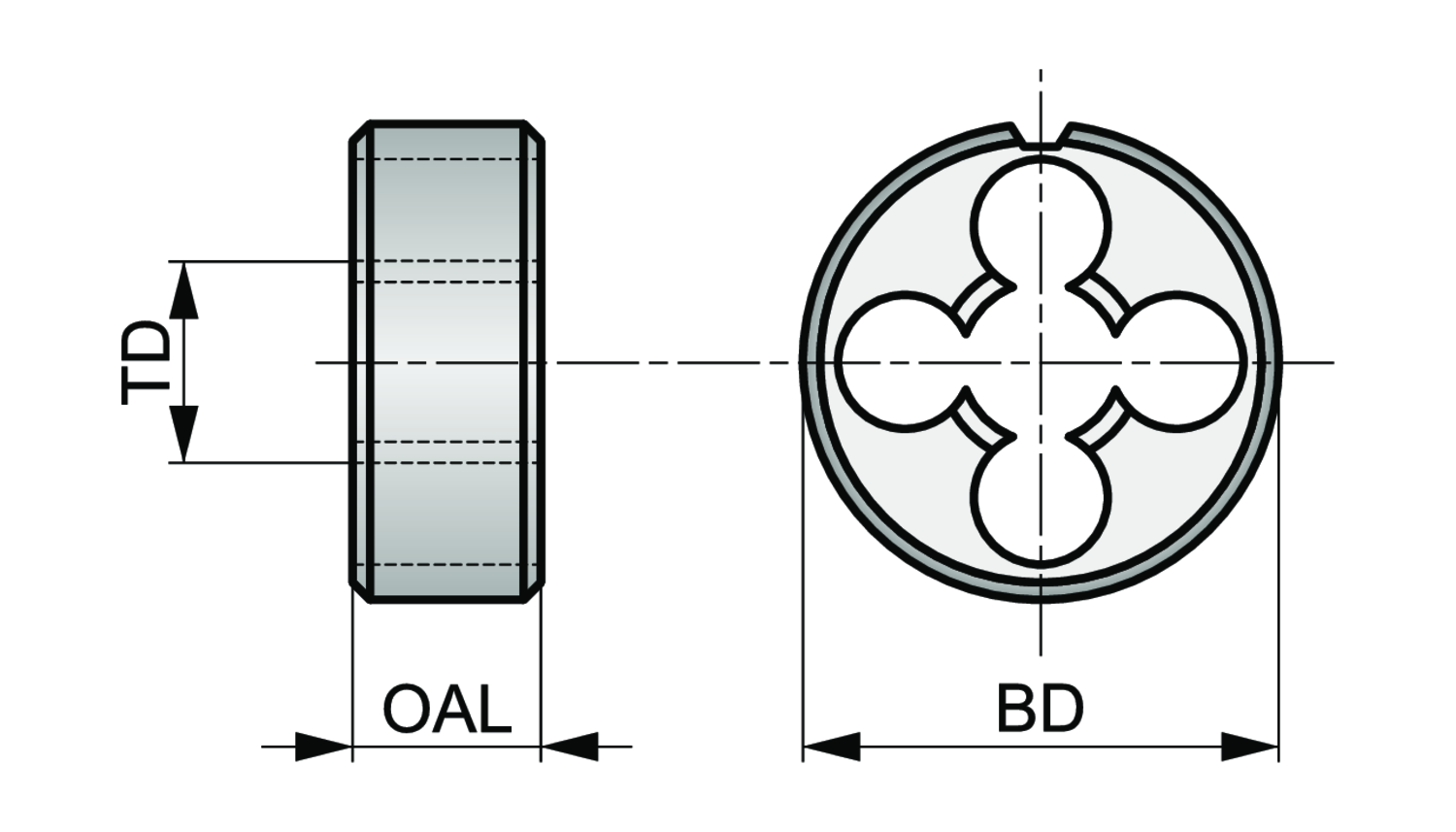

Body diameter - inch (BD)
1.4961
Body diameter - millimeter (BD)
38
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75
EDP number
104989
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5977817
Ordering code ANSI
F190PG9
Overall length - inch (OAL)
0.3937
Overall length - millimeter (OAL)
10
Thread diameter - millimeter (TD)
15.2
Thread diameter size (TDZ)
9
Thread form (THFT)
PG
Threads per inch (TPI)
18
Solid round die with a gun nose, for Panzergewinde (steel conduit thread) PG9 with 18 TPI and normal class of fit, dimensions according to ISO 2568 standard with 38mm outside diameter and 10mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
