Dormer F201M4 5977857 M4x0.70 ISO 2568 gun nosed threading die, 20mm body diameter, 5mm overall length, 1.75 chamfer-to-pitch ratio. High Speed Steel (HSS) for threading cast iron, stainless steel, non-ferrous metals, and steel. Right-hand cutting direction.

Name: Dormer F201M4 5977857 M4x0.70 ISO 2568 gun nosed threading die, 20mm body diameter, 5mm overall length, 1.75 chamfer-to-pitch ratio. High Speed Steel
Brand: Dormer Pramet
Price: 78.14 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5977857

BRAND

Dormer Pramet

SKU

6083028

WEIGHT

0.027 lb

UOM

each

$78.14 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

ISO 2568

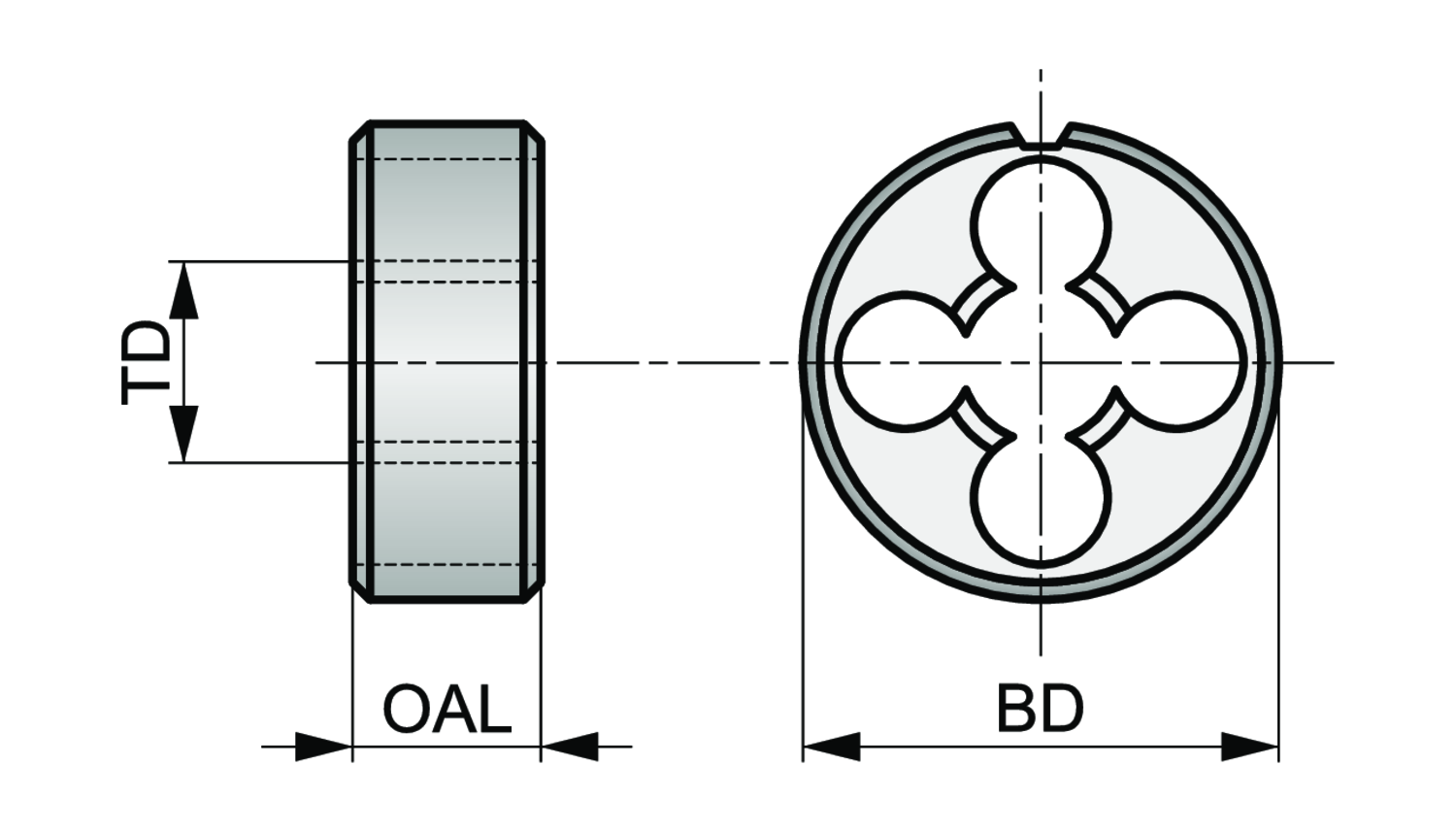

Body diameter - inch (BD)

0.7874

Body diameter - millimeter (BD)

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

EDP number

105030

Hand (Cutting direction)

Left

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5977857

Ordering code ANSI

F201M4

Overall length - inch (OAL)

0.1969

Overall length - millimeter (OAL)

Thread diameter - millimeter (TD)

Thread diameter size (TDZ)

Thread form (THFT)

M - Metric coarse

Thread pitch - millimeter (TP)

0.7

Solid round die with a gun nose, for left hand ISO-Metric thread M4 with 0.70 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 20mm outside diameter and 5mm thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
