Dormer F202M16 5977878 M16x2.00 threading die, DIN 382 standard, High Speed Steel (HSS) for threading steel, cast steel, stainless steel, cast iron, and non-ferrous metals. 18mm overall length, 1.75 die chamfer to pitch ratio. Suitable for manual or machine threading of metric coarse threads.
MODEL 5977878
$120.69 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DIN 382
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75

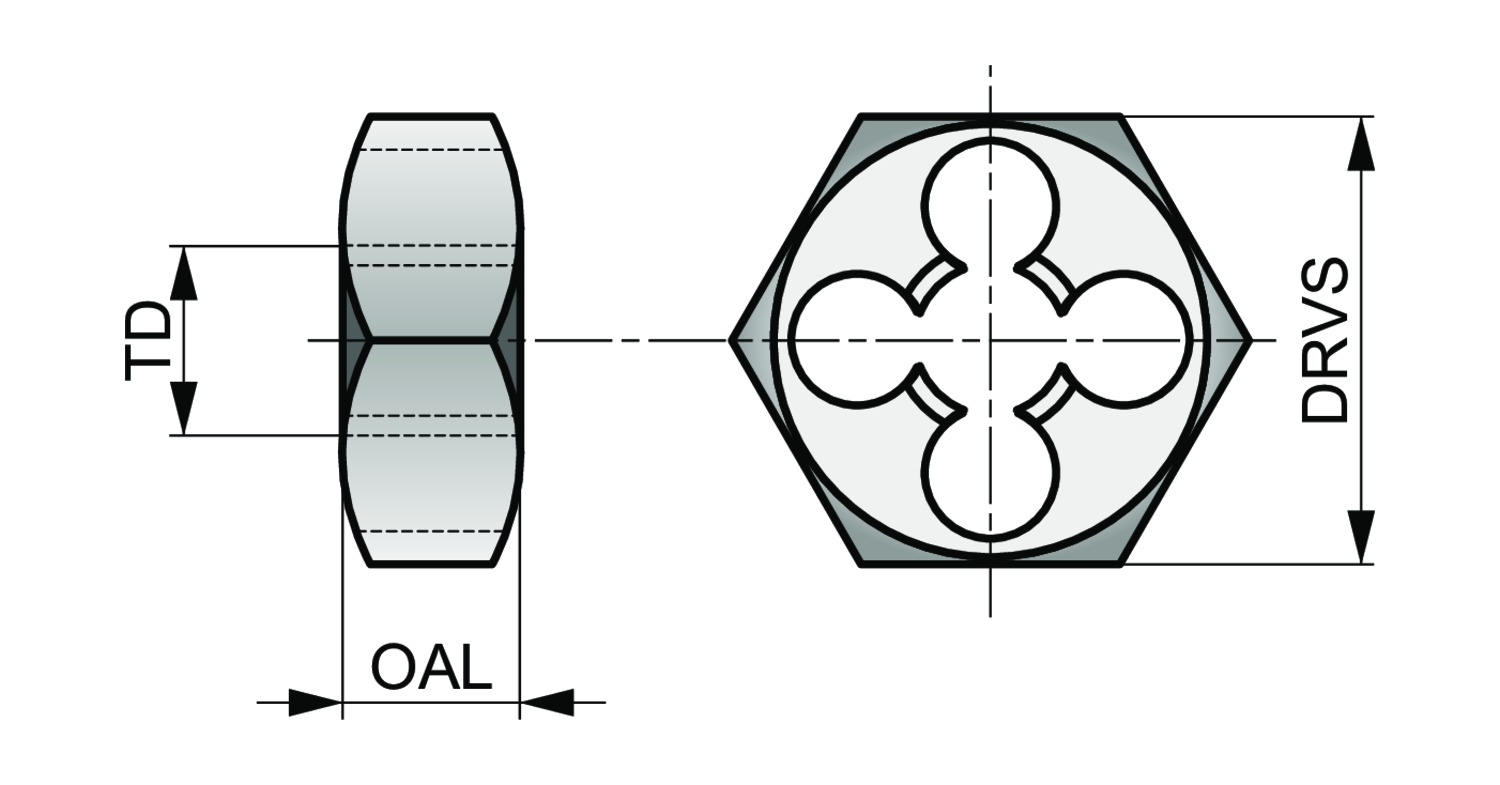

Drive size - inch (DRVS)
1.6142
Drive size - millimeter (DRVS)
41
EDP number
217061
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5977878
Ordering code ANSI
F202M16
Overall length - inch (OAL)
0.7087
Overall length - millimeter (OAL)
18
Thread diameter - millimeter (TD)
16
Thread diameter size (TDZ)
16
Thread form (THFT)
M - Metric coarse
Thread pitch - millimeter (TP)
2
Hexagon die nut, for ISO-Metric thread M16 with 2.00 mm pitch and 6g class of fit, dimensions according to DIN 382 standard with 41mm width across flat and 18mm thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
