Dormer F202M30 5978812 M Dienuts DIN 382 M30 x 3.50 mm
MODEL 5978812
$272.27 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
Basic Standard
DIN 382
Coating
Bright
Die chamfer to pitch ratio (DCPR)
1.75

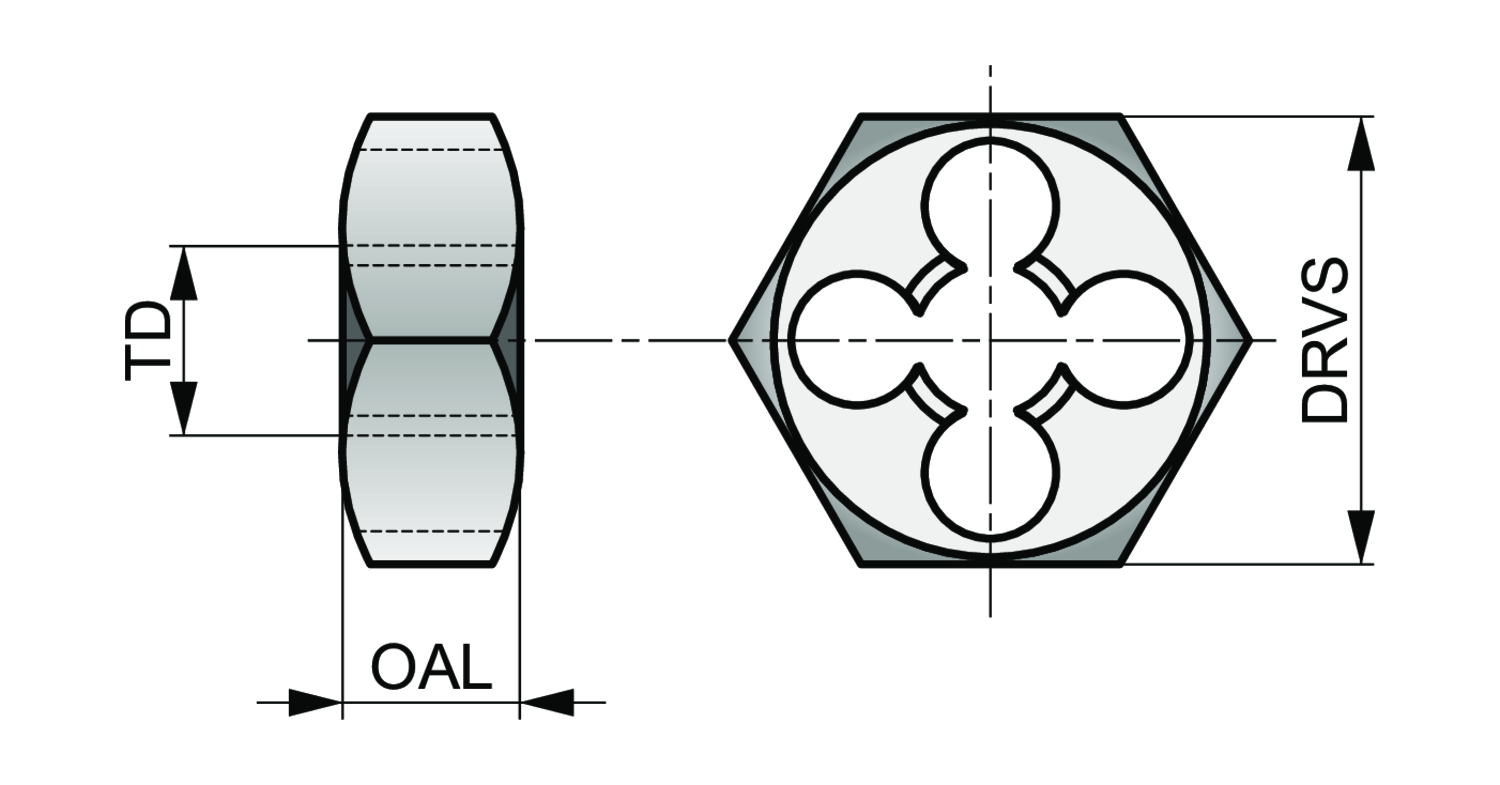

Drive size - inch (DRVS)
2.3622
Drive size - millimeter (DRVS)
60
EDP number
217191
Hand (Cutting direction)
Right
Material
HSS
Material application
K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel
MID number
5978812
Ordering code ANSI
F202M30
Overall length - inch (OAL)
0.9843
Overall length - millimeter (OAL)
25
Thread diameter - millimeter (TD)
30
Thread diameter size (TDZ)
30
Thread form (THFT)
M - Metric coarse
Thread pitch - millimeter (TP)
3.5
Hexagon die nut, for ISO-Metric thread M30 with 3.50 mm pitch and 6g class of fit, dimensions according to DIN 382 standard with 60mm width across flat and 25mm thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
