Dormer F302M16 5978476 threading die, M16x2.00 metric thread, manufactured to BS 1127:1950 standard. Suitable for cutting external threads in steel, cast iron, stainless steel, and non-ferrous metals. Dienuts design for thread repair and general maintenance applications.

Name: Dormer F302M16 5978476 threading die, M16x2.00 metric thread, manufactured to BS 1127:1950 standard. Suitable for cutting external threads in steel, c
Brand: Dormer Pramet
Price: 130.08 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5978476

BRAND

Dormer Pramet

SKU

6083096

WEIGHT

0.174 lb

UOM

each

$130.08 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Returnable: Yes

Basic Standard

BS 1127:1950

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

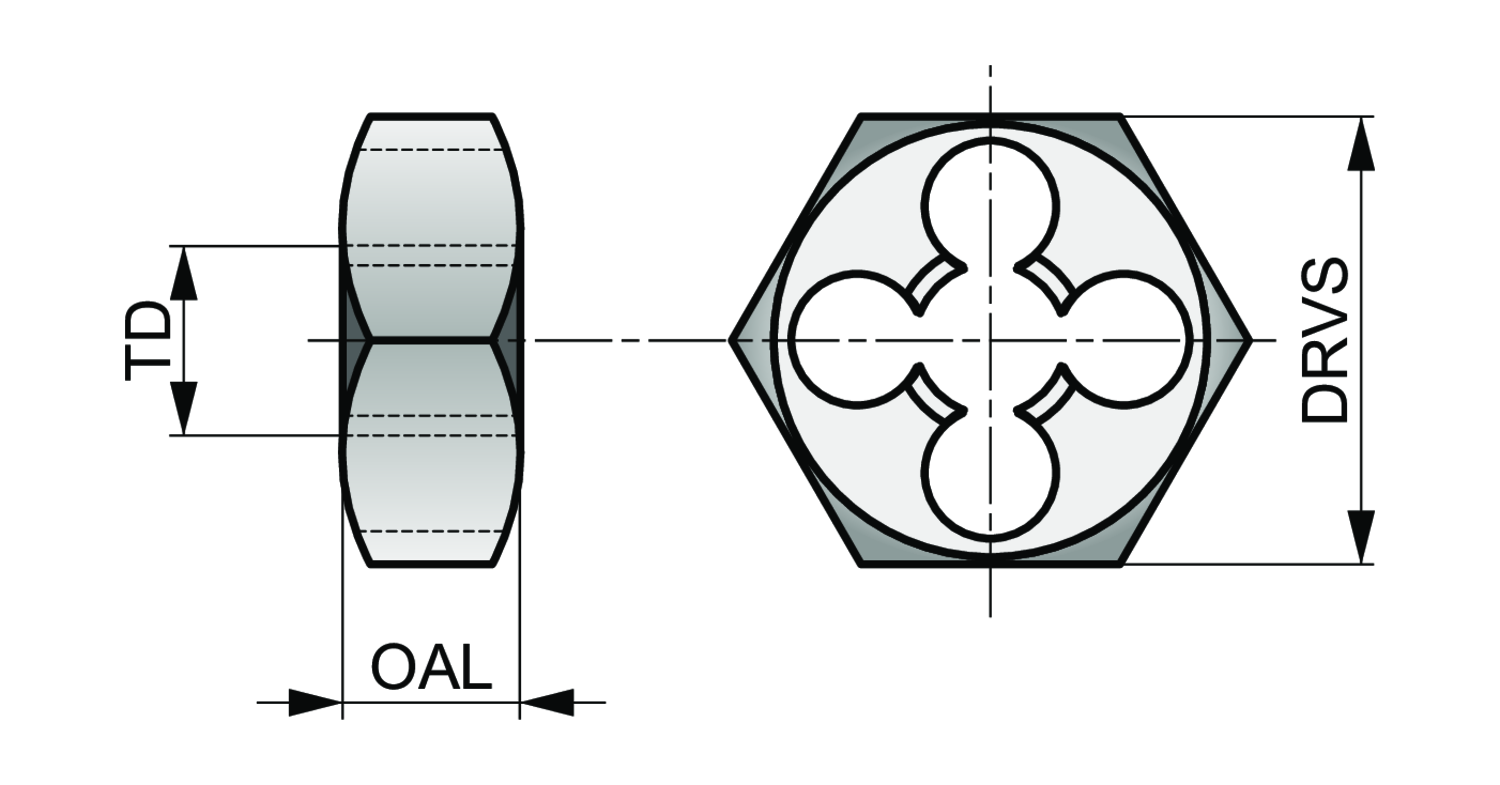

Drive size - inch (DRVS)

1.3

Drive size - millimeter (DRVS)

33.02

EDP number

105566

Hand (Cutting direction)

Right

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

Material code (BMC)

HSS

MID number

5978476

Ordering code ANSI

F302M16

Overall length - fractional inch (OAL)

5/8

Overall length - inch (OAL)

0.625

Overall length - millimeter (OAL)

15.88

Thread diameter - millimeter (TD)

Thread diameter size (TDZ)

Thread form (THFT)

M - Metric coarse

Thread pitch - millimeter (TP)

Hexagon die nut, for ISO-Metric thread M16 with 2.00 mm pitch and 6g class of fit, dimensions according to BS 1127:1950 standard with 1.3000" width across flat and 5/8" thickness, HSS with bright finish for repairing damaged thread in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
