Dormer F3201.1/8X3 5977972 UNC adjustable threading die, 1-1/4"-7 TPI thread size, 3" body diameter, 7/8" overall length. High Speed Steel (HSS) for cutting external threads on steel, cast steel, stainless steel, cast iron, and non-ferrous metals. 1.75 die chamfer to pitch ratio. Suitable for manual or machine threading applications.

Name: Dormer F3201.1/8X3 5977972 UNC adjustable threading die, 1-1/4"-7 TPI thread size, 3" body diameter, 7/8" overall length. High Speed Steel (HSS) for c
Brand: Dormer Pramet
Price: 393.96 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 5977972

BRAND

Dormer Pramet

SKU

6083156

WEIGHT

1.094 lb

UOM

each

$393.96 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

BS 1127:1950

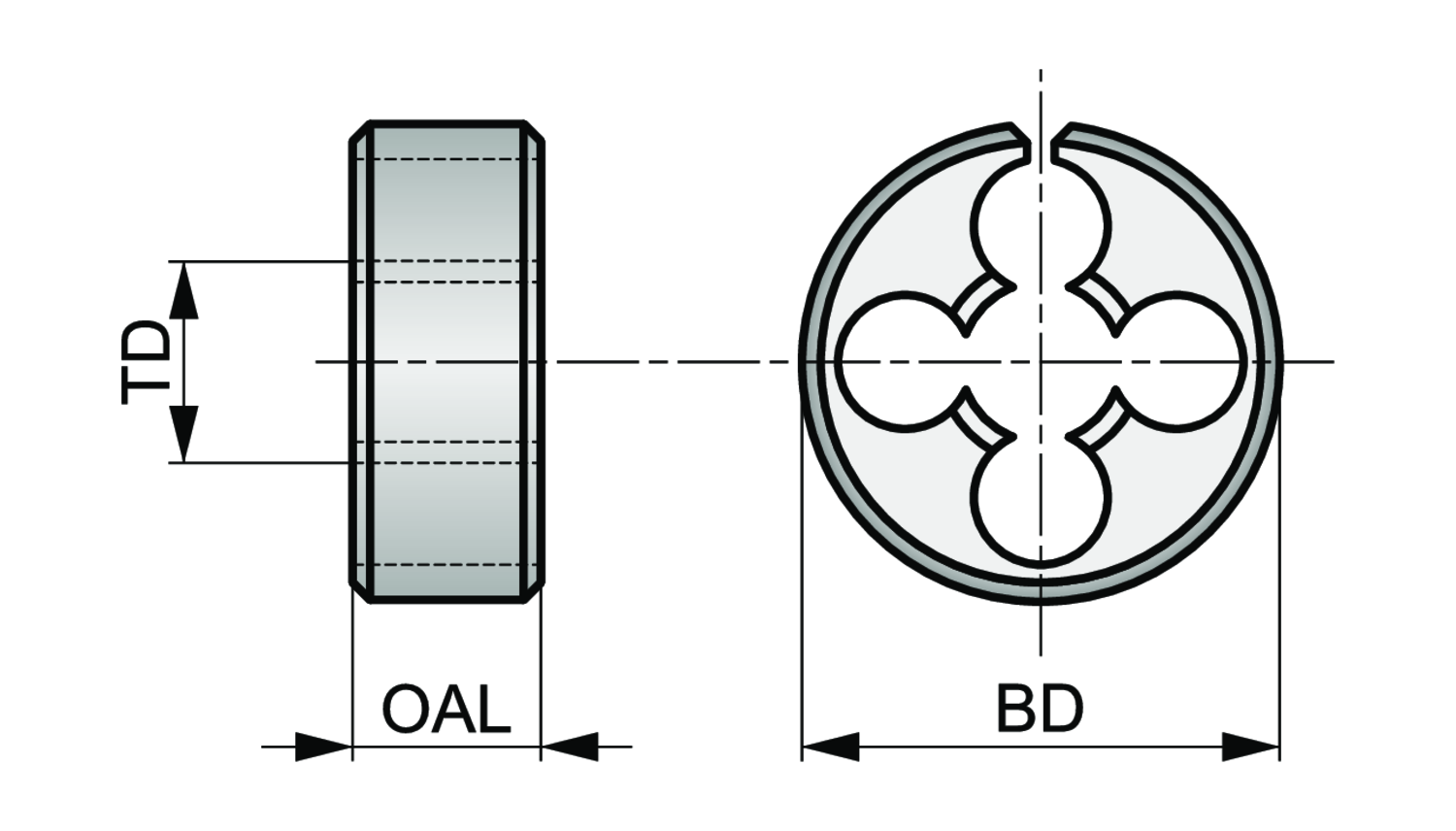

Body diameter - fractional inch (BD)

Body diameter - millimeter (BD)

76.2

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

EDP number

206997

Hand (Cutting direction)

Right

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5977972

Ordering code ANSI

F3201.1/8X3

Overall length - fractional inch (OAL)

7/8

Overall length - millimeter (OAL)

22.23

Thread diameter - millimeter (TD)

31.75

Thread diameter size (TDZ)

1.1/4

Thread form (THFT)

UNC - Unified Coarse

Threads per inch (TPI)

Adjustable circular split die, for Unified National Coarse thread UNC 1.1/8" with 7 TPI, to reduce the torque when cutting by hand split dies can be adjusted in small increments up to a maximum of approximately 0.006", dimensions according to BS 1127:1950 standard with 3" outside diameter and 7/8" thickness, HSS with bright finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron.
