Dormer F3201X2 5978001 adjustable threading die, 1" body diameter, 8 threads per inch UNC, High Speed Steel (HSS). For cutting external threads on steel, cast steel, stainless steel, cast iron, and non-ferrous metals. 3/8" overall length, 1.75 die chamfer to pitch ratio.

Basic Standard

BS 1127:1950

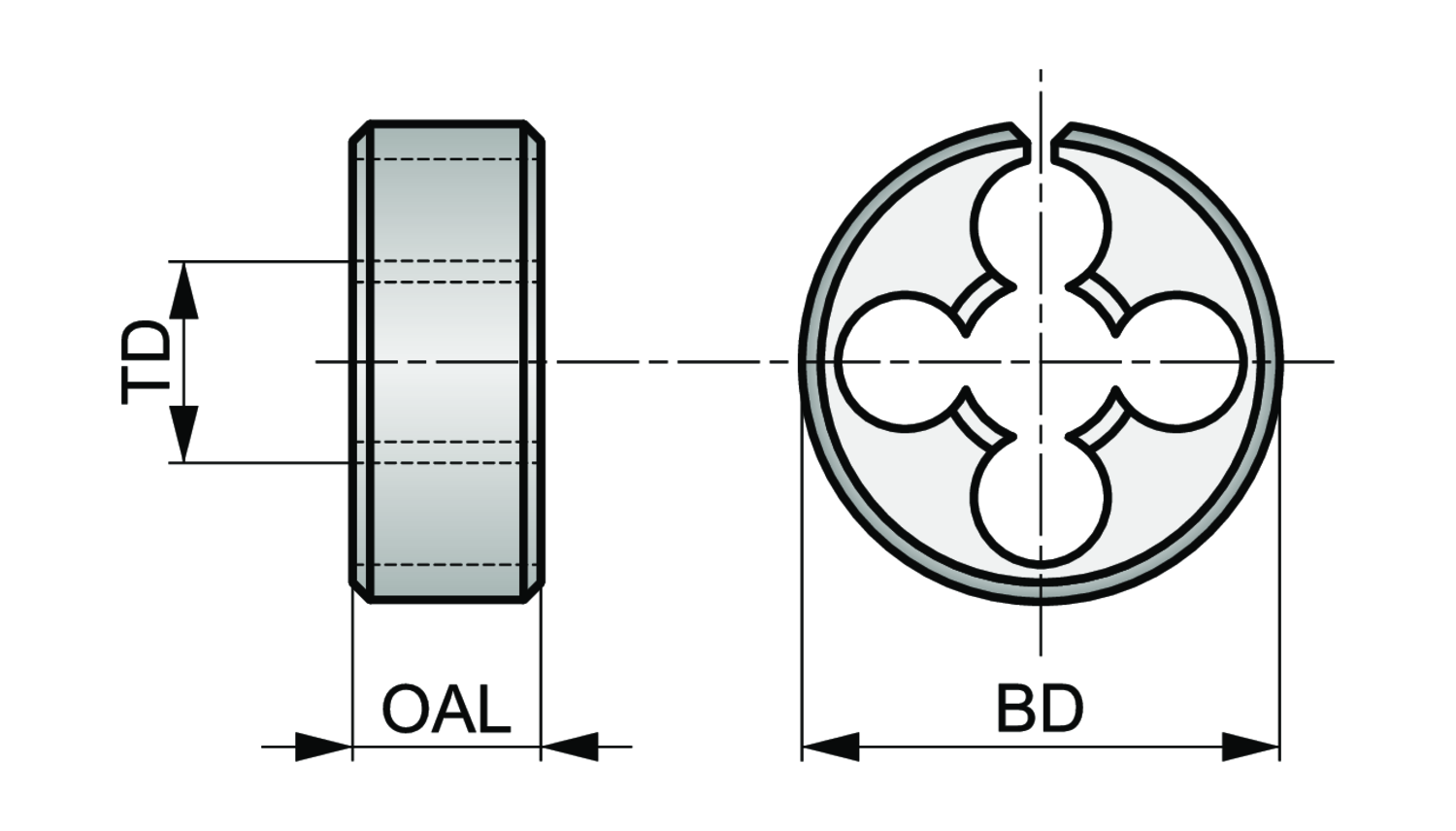

Body diameter - fractional inch (BD)

1"

Body diameter - inch (BD)

2

Body diameter - millimeter (BD)

50.8

Coating

Bright

Die chamfer to pitch ratio (DCPR)

1.75

EDP number

206980

Hand (Cutting direction)

Right

Material

HSS

Material application

K - Cast iron, M - Stainless steel, N - Non-ferrous metals, P - Steel and cast steel

MID number

5978001

Ordering code ANSI

F3201X2

Overall length - fractional inch (OAL)

3/8

Overall length - millimeter (OAL)

15.88

Thread diameter - millimeter (TD)

4.83

Thread diameter size (TDZ)

10

Thread form (THFT)

UNC - Unified Coarse

Threads per inch (TPI)

8
