Dormer J2003.2X.7 6821169 solid carbide thread mill, M4 x 0.70 mm thread, 3-flute, 10° spiral flute, 3.2 mm cutting diameter, 57 mm overall length, 8.4 mm max depth of cut, 6 mm shank. Suitable for K, M, N, P, S materials. DORMER standard.

Basic Standard

DORMER

Coating

Alcrona Pro

Coating property (CTP)

1

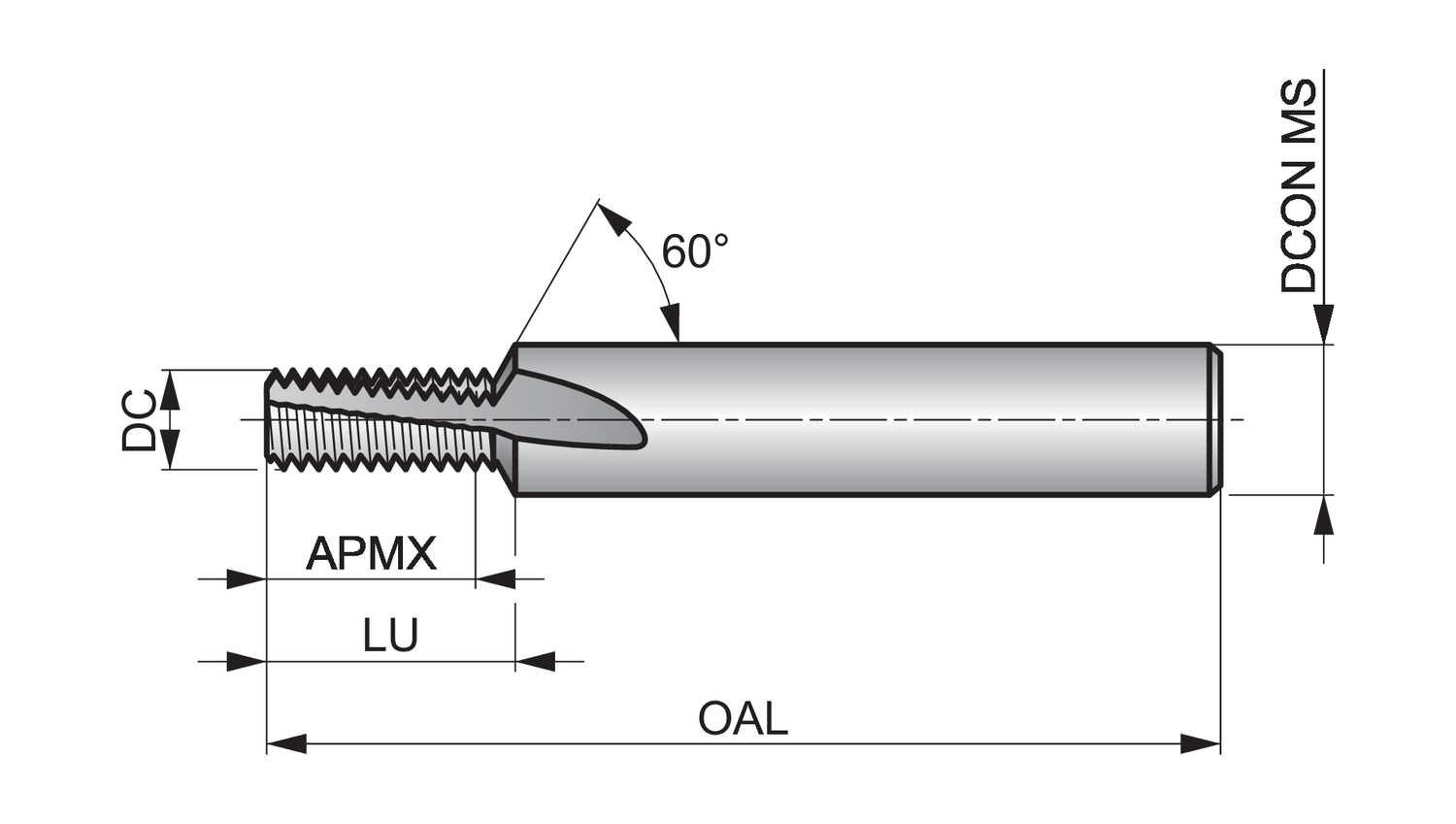

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

6

Cutting diameter - inch (DC)

0.126

Cutting diameter - millimeter (DC)

3.2

Depth of cut maximum - millimeter (APMX)

8.4

EDP number

46821169

Flute count (NOF)

3

Flute Geometry (FDC)

Spiral Flute Geometry

Flute helix angle (FHA)

10

Hand (Cutting direction)

Right

Material

HM

MID number

6821169

Ordering code ANSI

J2003.2X.7

Overall length - inch (OAL)

2.2441

Overall length - millimeter (OAL)

57

Shank

Cylindrical shank DIN 6535 HA

Thread diameter size (TDZ)

M4

Thread form (THFT)

M - Metric coarse

Thread pitch - millimeter (TP)

0.7

Usable length (ULDR)

2

Usable Length - millimeter (LU)

9.5
