Dormer J20511.6X2.0 6821295 thread mill with spiral flute and 10° helix angle, M14x2.00 thread, 11.6mm cutting diameter, 92mm overall length, 30mm max depth of cut, 16mm connection diameter, 4 flutes, solid carbide, oil feed coolant through. For K, M, N, P, S materials.

Name: Dormer J20511.6X2.0 6821295 thread mill with spiral flute and 10° helix angle, M14x2.00 thread, 11.6mm cutting diameter, 92mm overall length, 30mm max
Brand: Dormer Pramet
Price: 686.85 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6821295

BRAND

Dormer Pramet

SKU

6083419

WEIGHT

0.417 lb

UOM

each

$686.85 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Coating

Alcrona Pro

Coating property (CTP)

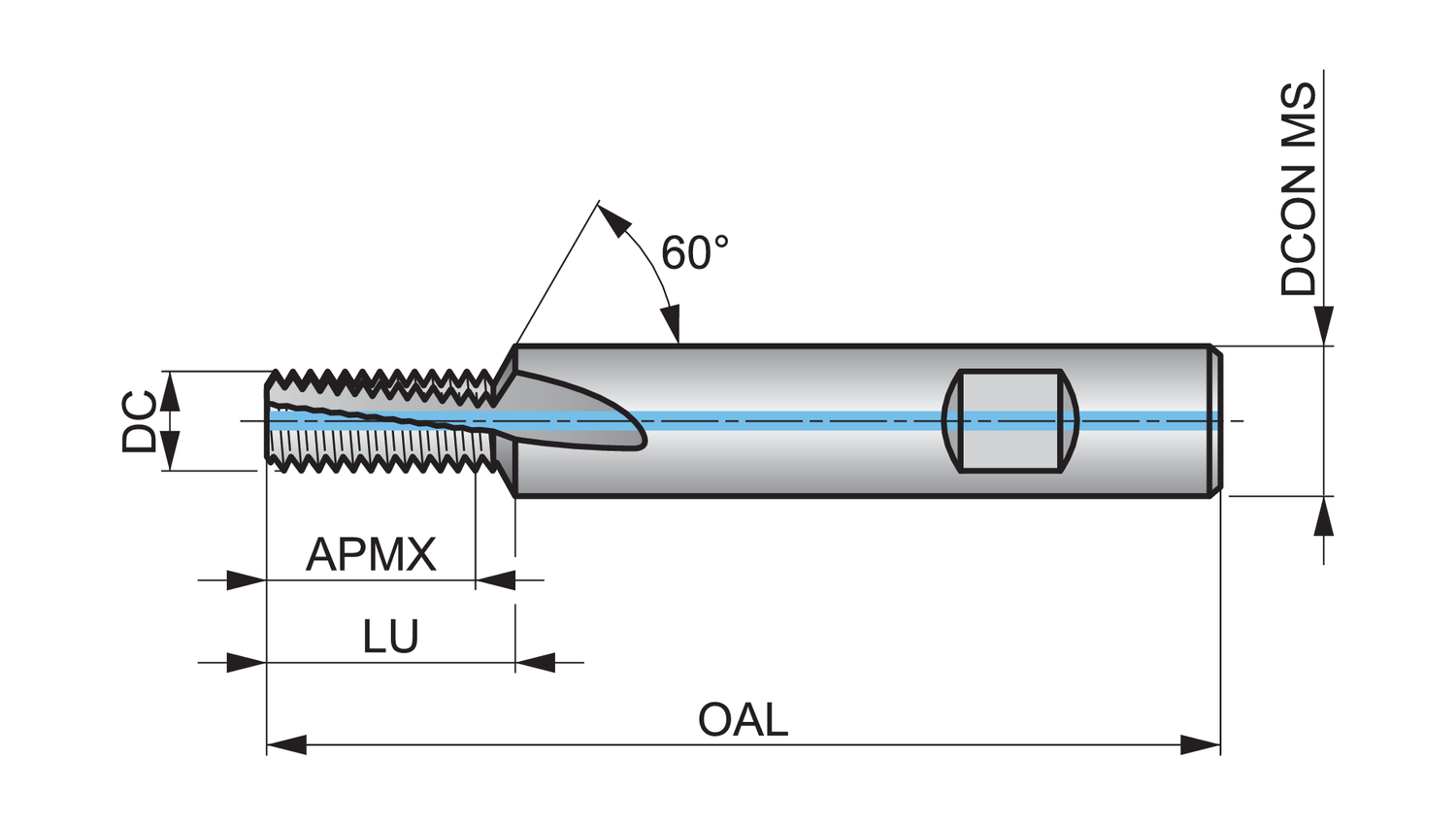

Connection diameter - inch (DCON MS)

0.6299

Connection diameter - millimeter (DCON MS)

Coolant exit style (CXSC)

axial concentric exit

Coolant supply property (CSP)

Cutting diameter - inch (DC)

0.4567

Cutting diameter - millimeter (DC)

11.6

Depth of cut maximum - millimeter (APMX)

EDP number

46821295

Flute count (NOF)

Flute Geometry (FDC)

Spiral Flute Geometry

Flute helix angle (FHA)

Hand (Cutting direction)

Right

Material

MID number

6821295

Ordering code ANSI

J20511.6X2.0

Overall length - inch (OAL)

3.622

Overall length - millimeter (OAL)

Shank

Cylindrical shank DIN 6535 HB

Thread diameter size (TDZ)

M14

Thread form (THFT)

M - Metric coarse

Thread pitch - millimeter (TP)

Usable length (ULDR)

Usable Length - millimeter (LU)

32.2

Thread and chamfer milling cutter, for ISO-Metric thread ≥ M14 with 2.00 mm pitch, dimensions according to DORMER standard with 4 flutes, 11.6mm cutting diameter and 16mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 30mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals and titanium or titanium alloys.
