Dormer J21010.0X2.0 6821300 solid carbide thread mill, M14x2.00 thread, 10mm cutting diameter, 83mm overall length, 27° spiral flute, 4 flutes. For hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard.

Name: Dormer J21010.0X2.0 6821300 solid carbide thread mill, M14x2.00 thread, 10mm cutting diameter, 83mm overall length, 27° spiral flute, 4 flutes. For ha
Brand: Dormer Pramet
Price: 560.38 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6821300

BRAND

Dormer Pramet

SKU

6083424

WEIGHT

0.179 lb

UOM

each

$560.38 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Coating

Alcrona Pro

Coating property (CTP)

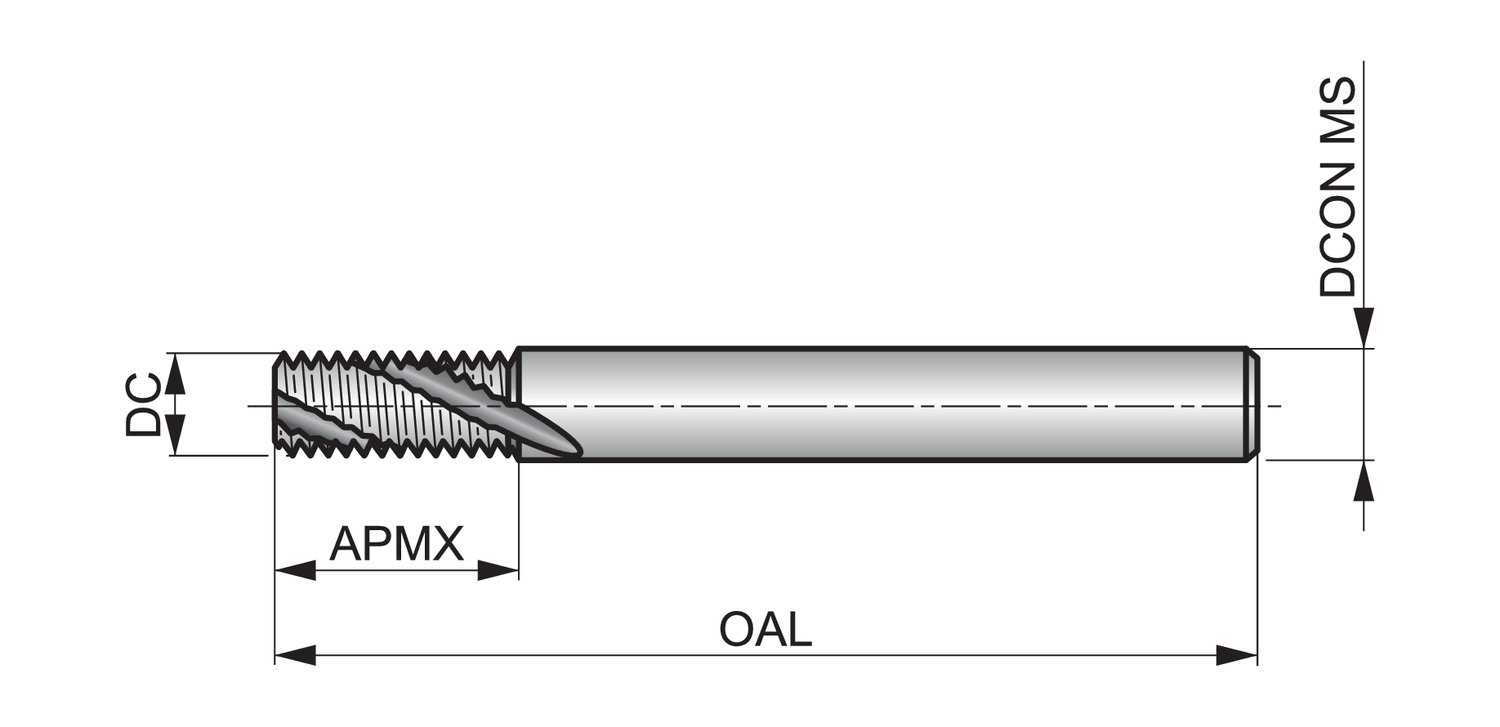

Connection diameter - inch (DCON MS)

0.3937

Connection diameter - millimeter (DCON MS)

Cutting diameter - inch (DC)

0.3937

Cutting diameter - millimeter (DC)

Depth of cut maximum - millimeter (APMX)

EDP number

46821300

Flute count (NOF)

Flute Geometry (FDC)

Spiral Flute Geometry

Flute helix angle (FHA)

Hand (Cutting direction)

Right

Material

MID number

6821300

Ordering code ANSI

J21010.0X2.0

Overall length - inch (OAL)

3.2677

Overall length - millimeter (OAL)

Shank

Cylindrical shank DIN 6535 HA

Thread diameter size (TDZ)

M14

Thread form (THFT)

M - Metric coarse

Thread pitch - millimeter (TP)

Usable length (ULDR)

Thread milling cutter, for ISO-Metric thread ≥ M14 with 2.00 mm pitch, dimensions according to DORMER standard with 4 flutes, 10mm cutting diameter and 10mm parallel shank according to DIN 6535 HA, solid carbide with Alcrona Pro coating and 27° helix angle for milling a maximum of 30mm long right or left hand internal thread in steel and cast steel, stainless steel, cast-iron, non-ferrous metals, chilled cast-iron.
