Dormer J22514.0X1.5 6821327 MF Thread Mill Spiral Flute 10° Oil Feed M16 x 1.50 mm
MODEL 6821327
$539.82 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Coating
Alcrona Pro
Coating property (CTP)
1

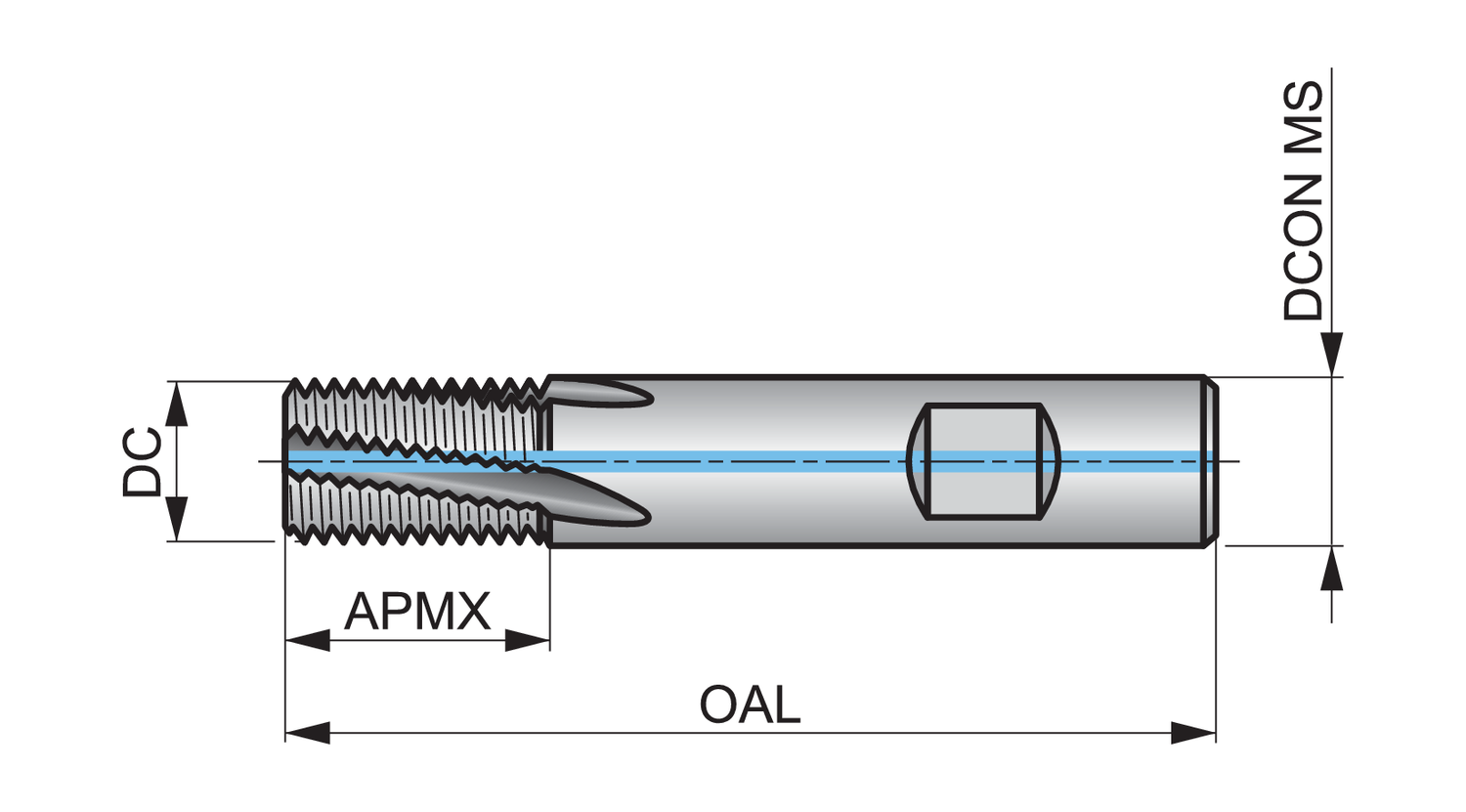

Connection diameter - inch (DCON MS)
0.5512
Connection diameter - millimeter (DCON MS)
14
Coolant exit style (CXSC)
axial concentric exit
Coolant supply property (CSP)
1
Cutting diameter - inch (DC)
0.5512
Cutting diameter - millimeter (DC)
14
Depth of cut maximum - millimeter (APMX)
26
EDP number
46821327
Flute count (NOF)
5
Flute Geometry (FDC)
Spiral Flute Geometry
Flute helix angle (FHA)
10
Hand (Cutting direction)
Right
Material
HM
MID number
6821327
Ordering code ANSI
J22514.0X1.5
Overall length - inch (OAL)
3.2677
Overall length - millimeter (OAL)
83
Shank
Cylindrical shank DIN 6535 HB
Thread diameter size (TDZ)
M16
Thread form (THFT)
MF - Metric fine
Thread pitch - millimeter (TP)
1.5
Usable length (ULDR)
1.5
Thread milling cutter, for ISO-Metric Fine thread ≥ M16 with 1.50 mm pitch, dimensions according to DORMER standard with 5 flutes, 14mm cutting diameter and 14mm Weldon shank according to DIN 6535 HB, solid carbide with Alcrona Pro coating, through coolant holes and 10° helix angle for milling a maximum of 26mm long right or left hand internal thread in steel and cast steel, ferritic, martensitic and austenitic stainless steel, cast-iron, non-ferrous metals, titanium or titanium alloys and Co-based high-temperature alloys, chilled cast-iron.
