Dormer B40012.0 5987250 machine reamer with 12.00mm cutting diameter, solid carbide construction, and 6 flutes with extremely unequal spacing for smooth cutting. DIN 8093 standard, 10mm connection diameter with h6 tolerance. Suitable for cast iron, non-ferrous metals, and steel.
MODEL 5987250
$236.67 Each
Prices are subject to change
THIS ORDER SHIPS FREE
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
H7
Basic Standard
DIN 8093

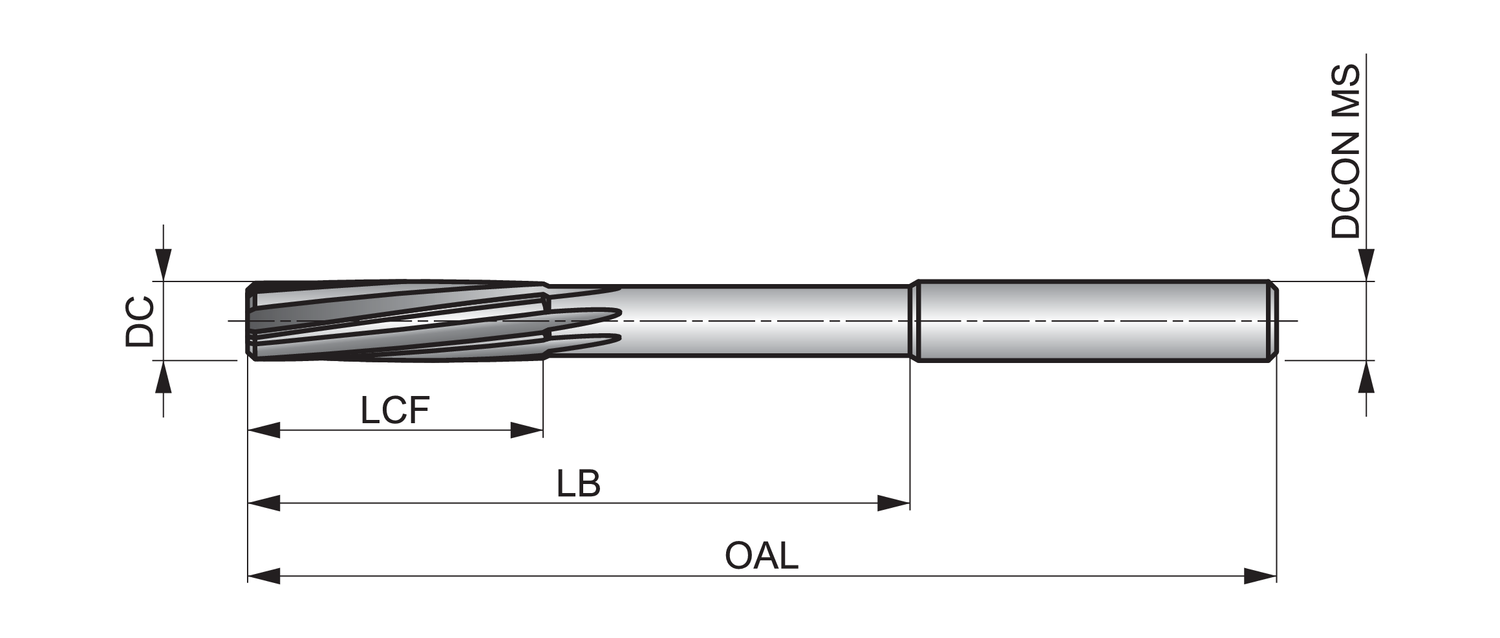

Body length - millimeter (LB)
111
Coating
Bright
Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
EDP number
144282
Flute count (NOF)
6
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
44
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5987250
Ordering code ANSI
B40012.0
Overall length - inch (OAL)
5.9449
Overall length - millimeter (OAL)
151
Shank
Cylindrical shank
Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 12.00mm with an overall length of 151mm, a flute length of 44mm and 111mm reach with neck relief, according to DIN 8093 standard for reaming precise holes within H7 tolerance, solid carbide with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
