Dormer B41112.0 5987166 Machine Reamer Extremely Unequal Spacing 6FL 12.00 mm
MODEL 5987166
$285.79 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
H7
Basic Standard
DIN 8094

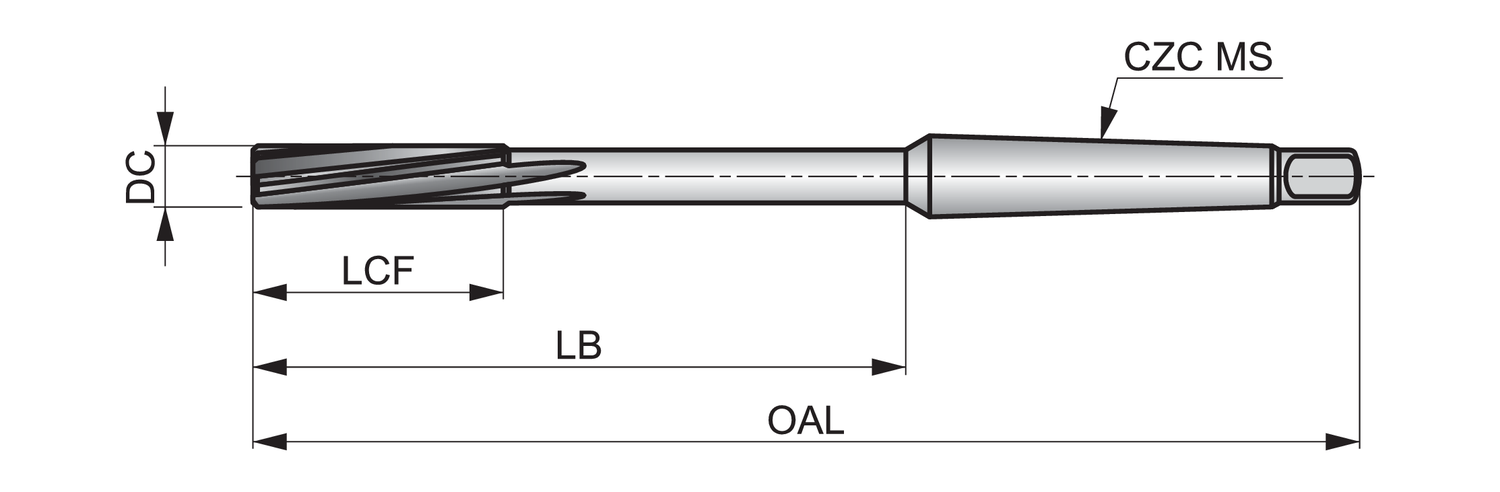

Body length - millimeter (LB)
116.5
Coating
Bright
Connection size code machine side (CZC MS)
MK 1
Cutting diameter - inch (DC)
0.4724
Cutting diameter - millimeter (DC)
12
EDP number
53140
Flute count (NOF)
6
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
44
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5987166
Ordering code ANSI
B41112.0
Overall length - inch (OAL)
7.1654
Overall length - millimeter (OAL)
182
Shank
Morse Taper Shank
Machine reamer with left hand slow spiral flutes which are extremely unequally spaced and a Morse taper shank, diameter 12.00mm with an overall length of 182mm, a flute length of 44mm and 116.5mm reach with neck relief, according to DIN 8094 standard for reaming precise holes within H7 tolerance, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
