Dormer B44110.0 5987160 machine reamer with 10.00mm cutting diameter, solid carbide construction, and 6 flutes with extremely unequal spacing for vibration-free reaming. DIN 8050 standard, cylindrical shank with 10mm connection diameter and h9 tolerance. Suitable for cast iron, non-ferrous metals, and steel/cast steel applications.
MODEL 5987160
$141.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
H7
Basic Standard
DIN 8050

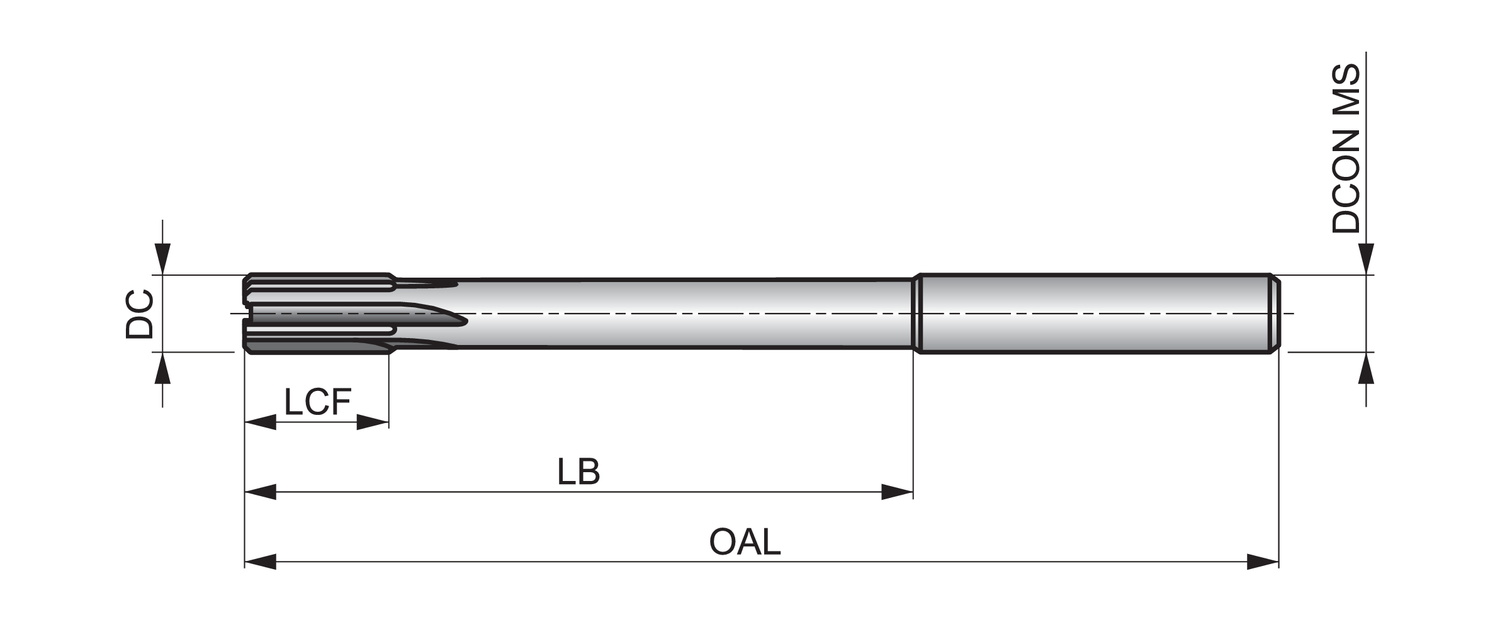

Body length - millimeter (LB)
87
Coating
Bright
Connection diameter - inch (DCON MS)
0.3937
Connection diameter - millimeter (DCON MS)
10
Connection diameter tolerance machine side (TCDCONMS)
h9
Cutting diameter - inch (DC)
0.3937
Cutting diameter - millimeter (DC)
10
EDP number
421086
Flute count (NOF)
6
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
19
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5987160
Ordering code ANSI
B44110.0
Overall length - inch (OAL)
5.2362
Overall length - millimeter (OAL)
133
Shank
Cylindrical shank
Machine reamer with straight flutes which are extremely unequally spaced and a cylindrical shank, diameter 10.00mm with an overall length of 133mm, a flute length of 19mm and 87mm reach with neck relief, according to DIN 8050 standard for reaming precise holes within H7 tolerance, carbide tipped with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
