Image for Illustration purposes only. Actual product may vary
Dormer B4818.03 5986965 NC - Centesimal Reamer for High Precision Chucks 6FL 8.03 mm
MODEL 5986965
$240.57 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningAchievable hole tolerance (TCHA)
0.004
Basic Standard
DIN 8093

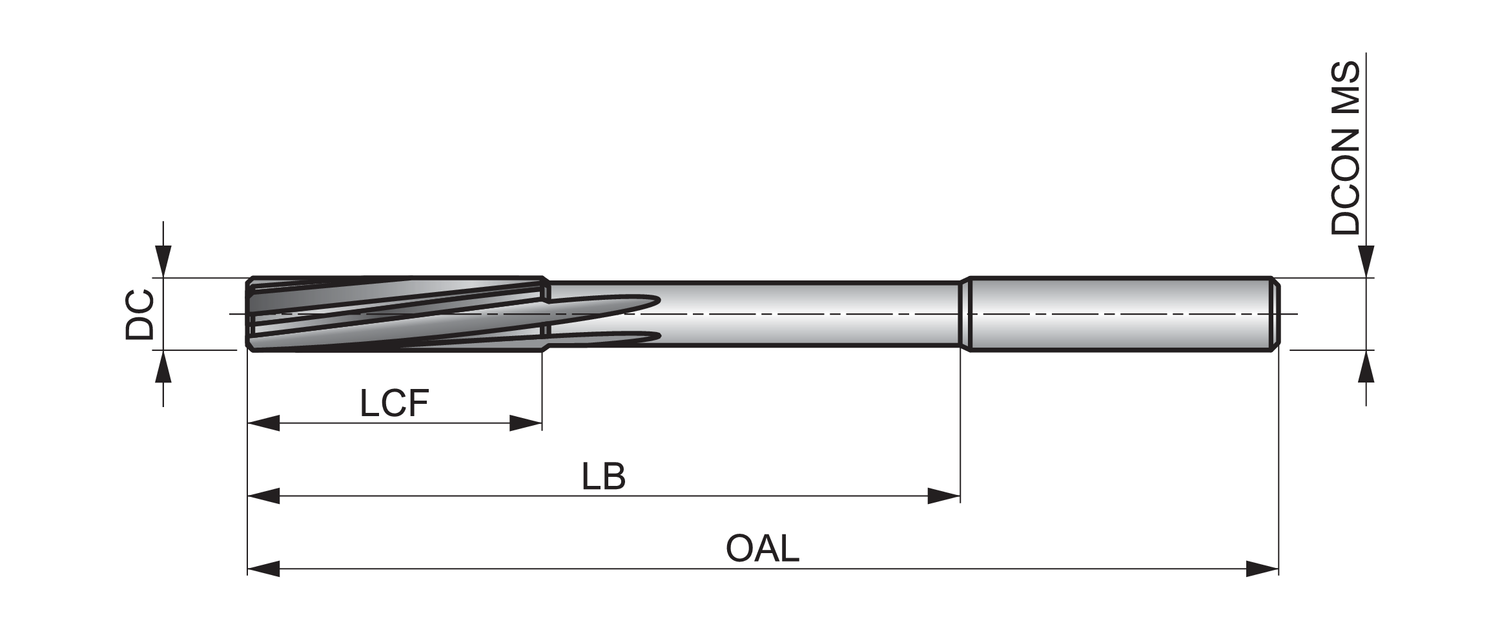

Body length - millimeter (LB)
81
Coating
Bright
Connection diameter - inch (DCON MS)
0.315
Connection diameter - millimeter (DCON MS)
8
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.3161
Cutting diameter - millimeter (DC)
8.03
EDP number
422298
Flute count (NOF)
6
Hand (Cutting direction)
Right
Length chip flute - millimeter (LCF)
33
Material
HM
Material application
K - Cast iron, N - Non-ferrous metals, P - Steel and cast steel
MID number
5986965
Ordering code ANSI
B4818.03
Overall length - inch (OAL)
4.6063
Overall length - millimeter (OAL)
117
Shank
Cylindrical shank DIN 6535 HA
Centesimal reamer with left hand slow spiral flutes which are extremely unequally spaced and a cylindrical shank, diameter 8.03mm with an overall length of 117mm, a flute length of 33mm and 81mm reach with neck relief, according to DIN 8093 standard with a diameter tolerance of 0/+0.005mm to produce holes within diameter-tolerance 8F9, carbide head with bright finish for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys.
