Dormer P1009.3 7806114 Rotary Burr - Cylinder with End-Cut only for bolt removing
MODEL 7806114
$23.05 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER

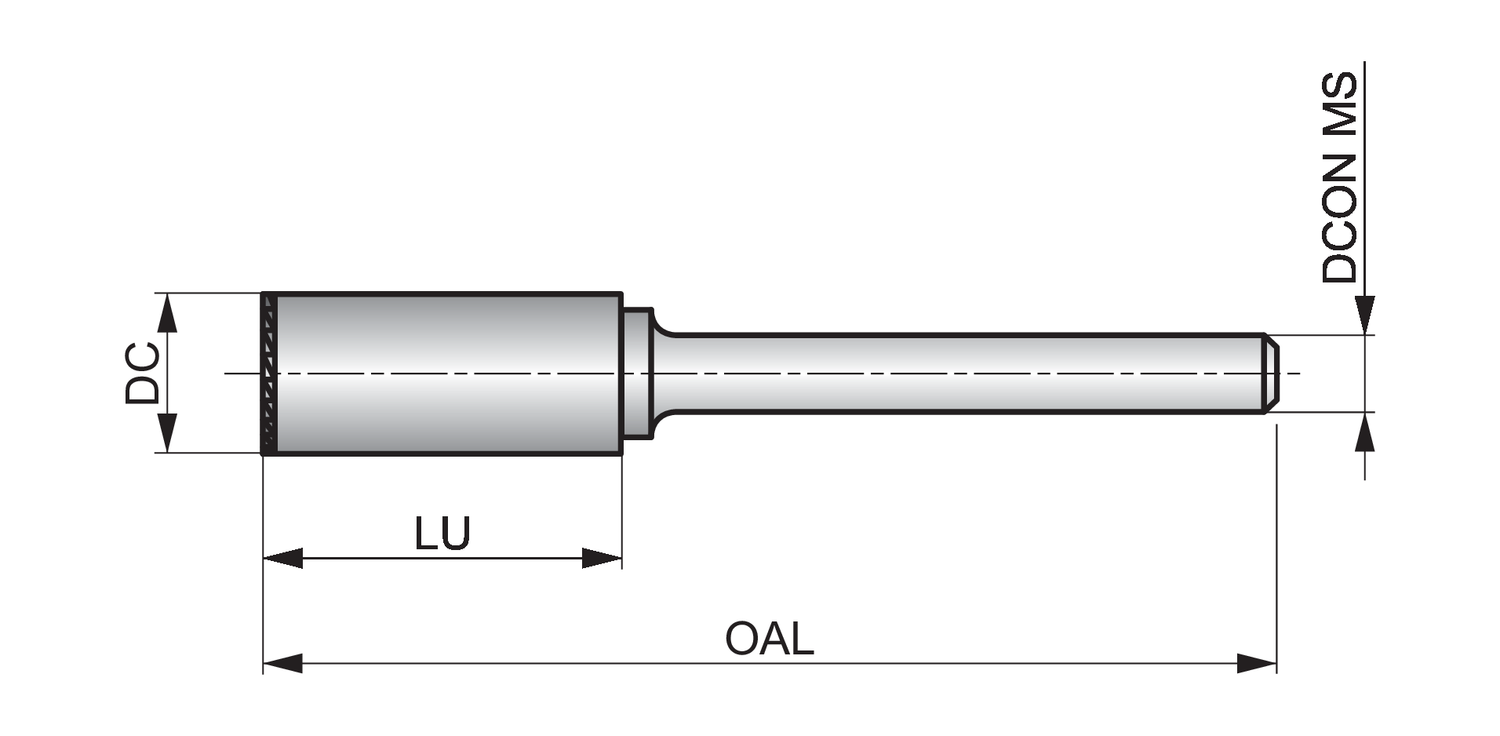

Bolt size
7/16-14; 20; M12
Burr Type Code (BTC)
Bolt Removal Cut Geometry
BurrEndShot_DICT_SEL
End Cut Burr End
Coating
Bright
Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Cutting diameter - inch (DC)
0.3661
Cutting diameter - millimeter (DC)
9.3
EDP number
7806114
Material
HM
Material application
M - Stainless steel, P - Steel and cast steel
MID number
7806114
Ordering code ANSI
P1009.3
Overall length - inch (OAL)
2.5591
Overall length - millimeter (OAL)
65
Shank
Cylindrical shank
Usable Length - millimeter (LU)
19
End cut burr, diameter 9.3mm with 65mm overall length and 6mm shank, carbide tipped with toughened and hardened steel shank and bright finish, single cut flute style with medium spaced edges for grinding the surface of a broken bolt flat in steel and cast steel and ferritic, martensitic and austenitic stainless steel
