Dormer Pramet P1014.9 7806116 rotary burr countersink with 150° point angle for bolt removing. Solid carbide construction for stainless steel and steel/cast steel applications. 6mm connection diameter shank. DORMER standard.
MODEL 7806116
$16.72 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningApplicationAngleIcon_DICT_SEL
Spotting 150°
Basic Standard
DORMER
Bolt size
1/4-20; 24; 28; M6
Burr Type Code (BTC)
Bolt Removal Cut Geometry
Coating
Bright

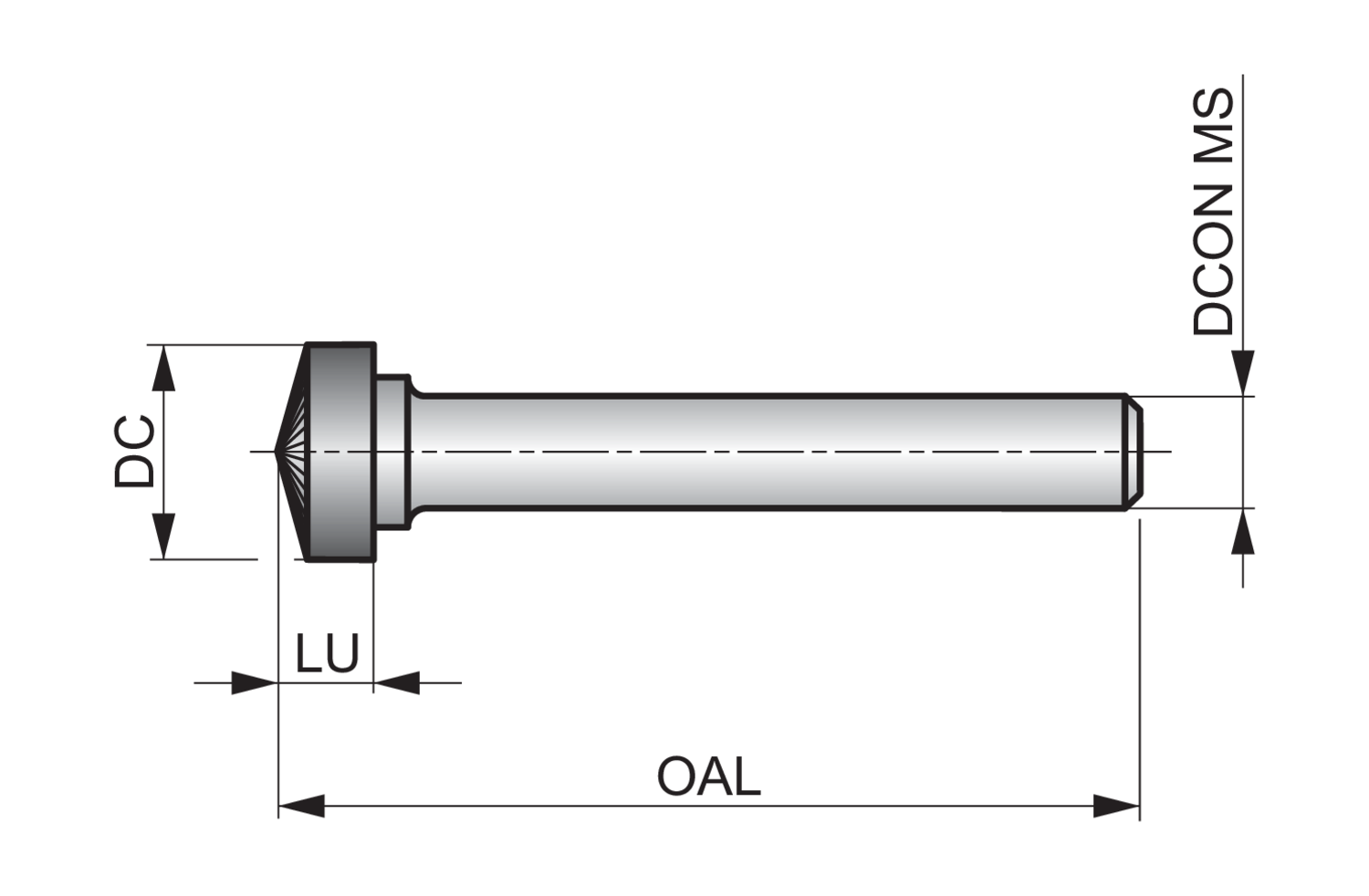

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Cutting diameter - inch (DC)
0.1929
Cutting diameter - millimeter (DC)
4.9
EDP number
7806116
Material
HM
Material application
M - Stainless steel, P - Steel and cast steel
MID number
7806116
Ordering code ANSI
P1014.9
Overall length - inch (OAL)
1.9685
Overall length - millimeter (OAL)
50
Point Angle (SIG)
150
Shank
Cylindrical shank
Usable Length - millimeter (LU)
20
150° Countersink burr, diameter 4.9mm with 50mm overall length and 6mm shank, solid carbide with bright finish, single cut flute style with medium spaced edges for grinding a countersink location into the flattened surface of a broken bolt in steel and cast steel and ferritic, martensitic and austenitic stainless steel
