Dormer Pramet P5113.0X3.0 7806104 ball nosed tree rotary burr, solid carbide (HM) for high-temperature alloys (S). 3mm shank diameter with h6 tolerance. DORMER standard. For deburring and finishing in demanding materials.
MODEL 7806104
$9.91 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
F - Ball Nosed Tree Shape
Burr Type Code (BTC)
Superalloy Cut Geometry
Coating
Bright

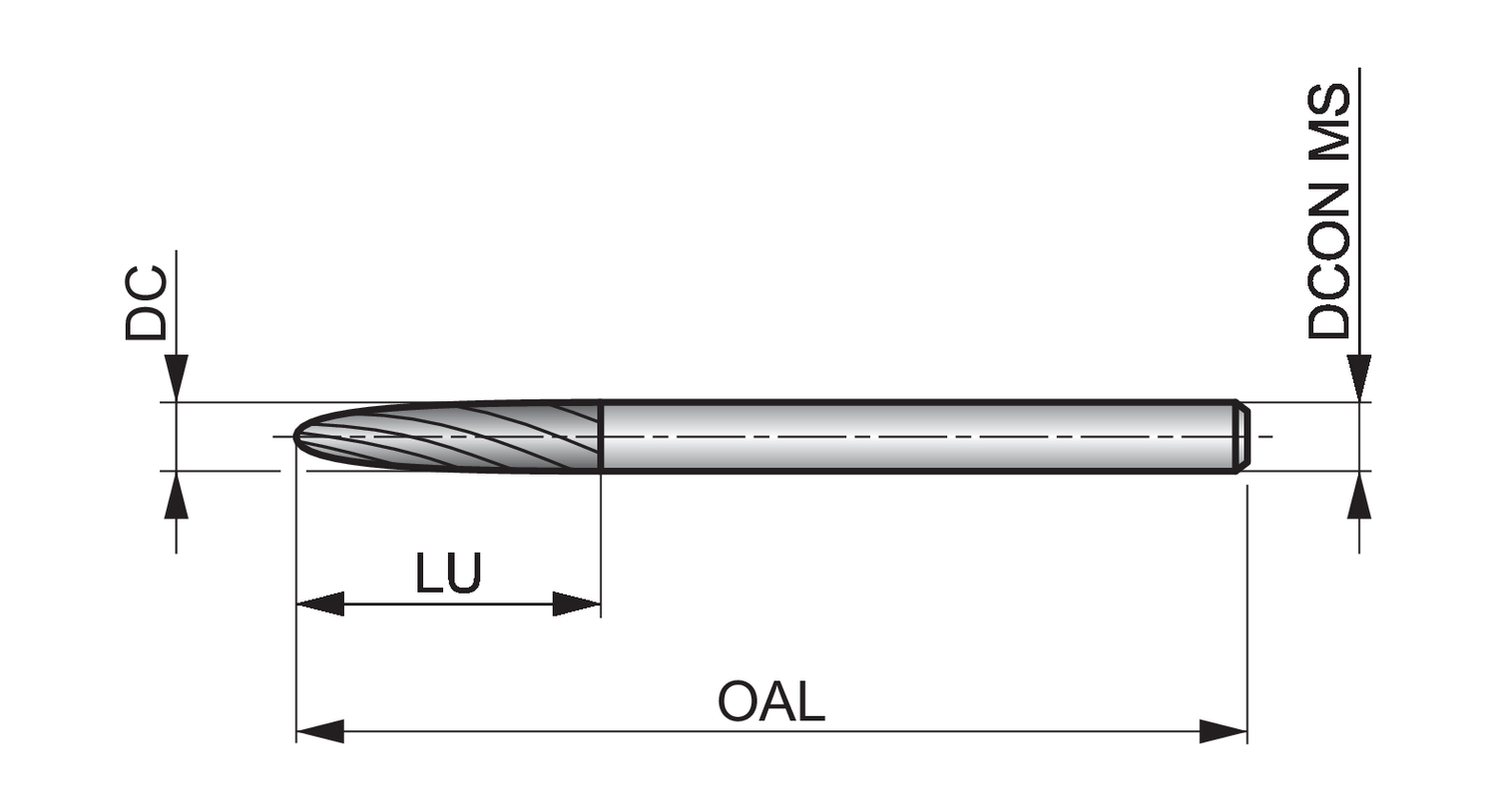

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
7806104
Material
HM
Material application
S - High-temperature alloys
MID number
7806104
Ordering code ANSI
P5113.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Shank
Cylindrical shank
Usable Length - millimeter (LU)
14
Rounded tree burr (F shape), diameter 3mm with 14mm length of cut, 38mm overall length and 3mm shank, solid carbide with bright finish, AS single cut flute style with light left-hand cross cut for multi-angle contouring, rounding of edges and cutting into hard to reach areas in high-temperature alloys
