Dormer P5233.0X3.0 7806109 Rotary Burr - Cone
MODEL 7806109
$9.91 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
M - Cone Shape
Burr Type Code (BTC)
Superalloy Cut Geometry
Coating
Bright

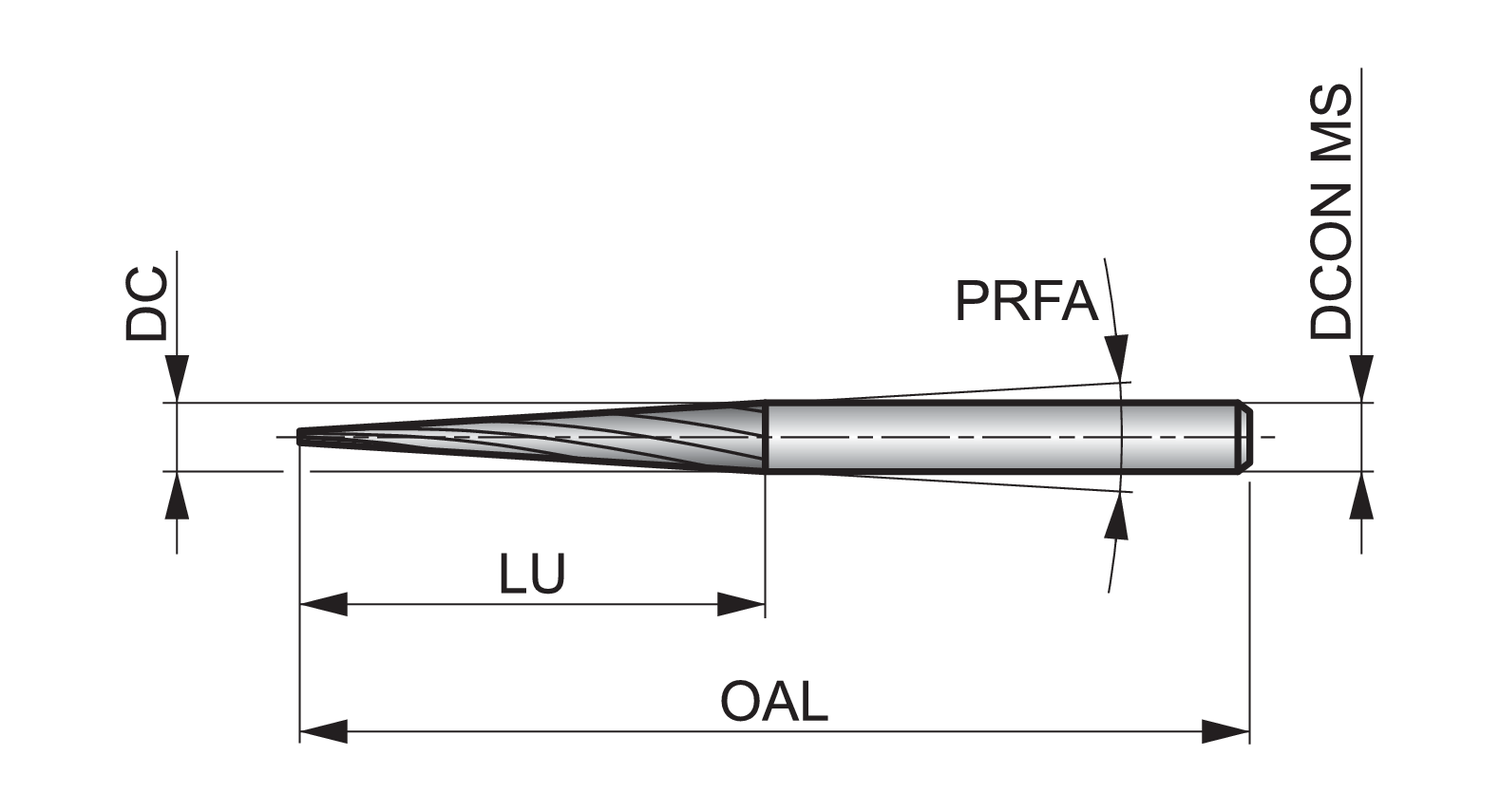

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
Cutting diameter tolerance class (TCDC)
h6
EDP number
7806109
Material
HM
Material application
S - High-temperature alloys
MID number
7806109
Ordering code ANSI
P5233.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Profile angle (PRFA)
7
Shank
Cylindrical shank
Usable Length - millimeter (LU)
15
Cone burr (M shape), diameter 3mm with 15mm length of cut, 38mm overall length and 3mm shank, solid carbide with bright finish, AS single cut flute style with light left-hand cross cut for enlarging holes, surface-finishing and cutting narrow angles in hard-to-reach areas in high-temperature alloys
