Dormer Pramet P6019.6X6.0 7059506 rotary burr, cylinder shape without endcut, 9.60mm cutting diameter, 6mm shank diameter, solid carbide (HM) construction for stainless steel applications. DORMER standard, h7 shank tolerance.

Name: Dormer Pramet P6019.6X6.0 7059506 rotary burr, cylinder shape without endcut, 9.60mm cutting diameter, 6mm shank diameter, solid carbide (HM) construc
Brand: Dormer Pramet
Price: 31.26 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 7059506

BRAND

Dormer Pramet

SKU

6083690

WEIGHT

0.073 lb

UOM

each

$31.26 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Burr Shape

A - Cylinder Shape without endcut

Burr Type Code (BTC)

Stainless Steel Cut Geometry

Coating

Bright

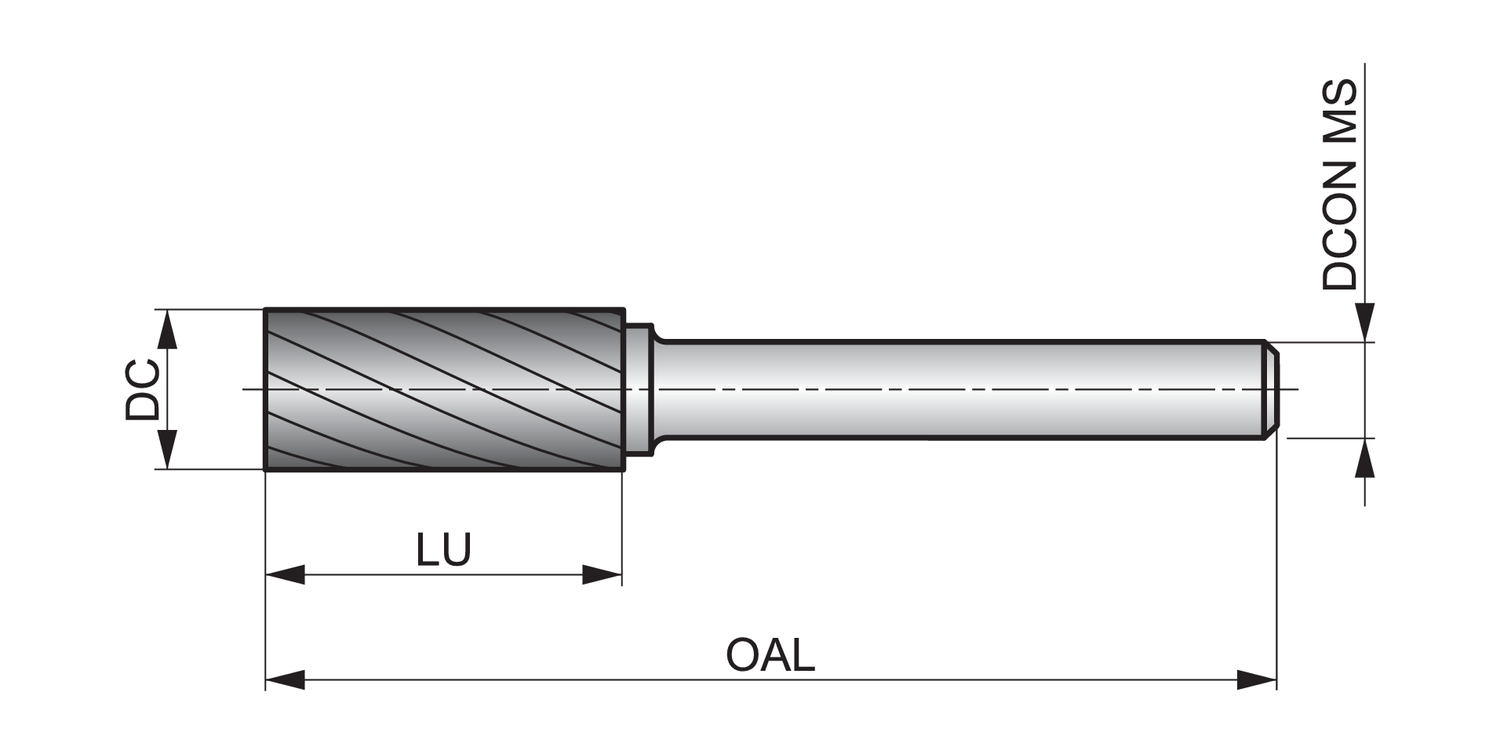

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cutting diameter - inch (DC)

0.378

Cutting diameter - millimeter (DC)

9.6

EDP number

47059506

Material

Material application

M - Stainless steel

MID number

7059506

Ordering code ANSI

P6019.6X6.0

Overall length - inch (OAL)

2.5197

Overall length - millimeter (OAL)

Shank

Cylindrical shank

Usable Length - millimeter (LU)

P601 Rotary carbide burrs from Dormer are made from premium carbide, giving excellent performance and extended tool life at high speeds.

The P601 is Shape A, cylinder without end cut, and is suitable for general plain surface de-burring.

The toughened and hardened steel shank provides rigidity and strength, decreasing vibrations and so extending the life of the tool.

The VA geometry of the P601 is designed to maximize material removal when machining stainless steels, whilst the bright finish prevents workpiece material from sticking to the cutting edges of the tool, so you get a clean finish
