Dormer P6158.0X6.0 7059533 flame rotary burr, 8.00mm cutting diameter, 6mm shank diameter, solid carbide construction for stainless steel applications. DORMER standard, h7 shank tolerance.

Name: Dormer P6158.0X6.0 7059533 flame rotary burr, 8.00mm cutting diameter, 6mm shank diameter, solid carbide construction for stainless steel applications
Brand: Dormer Pramet
Price: 35.72 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 7059533

BRAND

Dormer Pramet

SKU

6083717

WEIGHT

0.049 lb

UOM

each

$35.72 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Burr Shape

H - Flame Shape

Burr Type Code (BTC)

Stainless Steel Cut Geometry

Coating

Bright

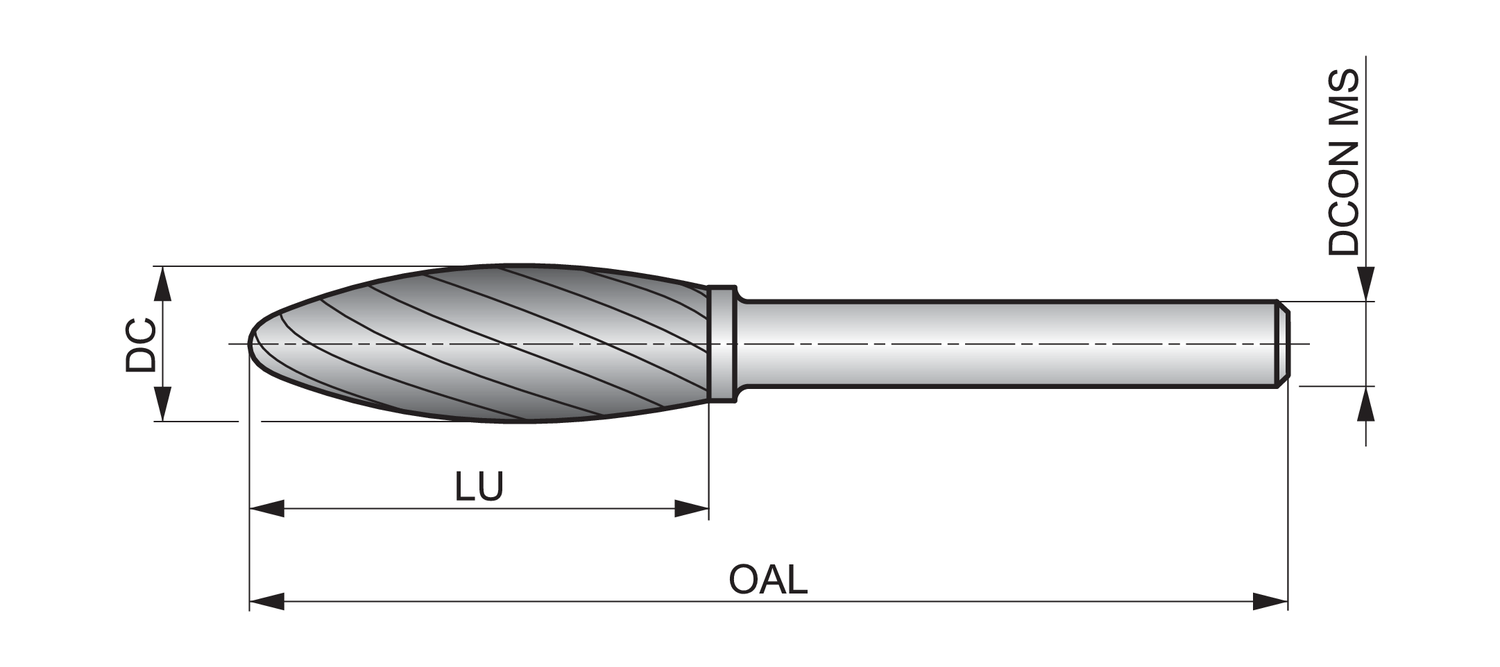

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cutting diameter - inch (DC)

0.315

Cutting diameter - millimeter (DC)

EDP number

47059533

Material

Material application

M - Stainless steel

MID number

7059533

Ordering code ANSI

P6158.0X6.0

Overall length - inch (OAL)

2.5197

Overall length - millimeter (OAL)

Shank

Cylindrical shank

Usable Length - millimeter (LU)

P615 rotary carbide burrs are manufactured from top grade carbide material, ensuring extended tool life and superior performance.

The VA geometry maximizes material removal in stainless steels and the flame shape (Shape H) with skip flute geometry provides effective de-burring on curved surfaces.

With a bright finish to prevent workpiece material from sticking to the cutting edges of the tool, so giving a clean result, the final feature of the P615 rotary carbide burr is the toughened and hardened steel shank which provides rigidity and strength to decrease vibration and increase too life
