Dormer P8033.0X3.0 6814098 Rotary Burr - Cylinder with endcut 3.00 mm x 3.0
MODEL 6814098
$8.37 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
B - Cylinder Shape with endcut
Burr Type Code (BTC)
Double Cut Geometry
BurrEndShot_DICT_SEL
End Cut Burr End
Coating
Bright

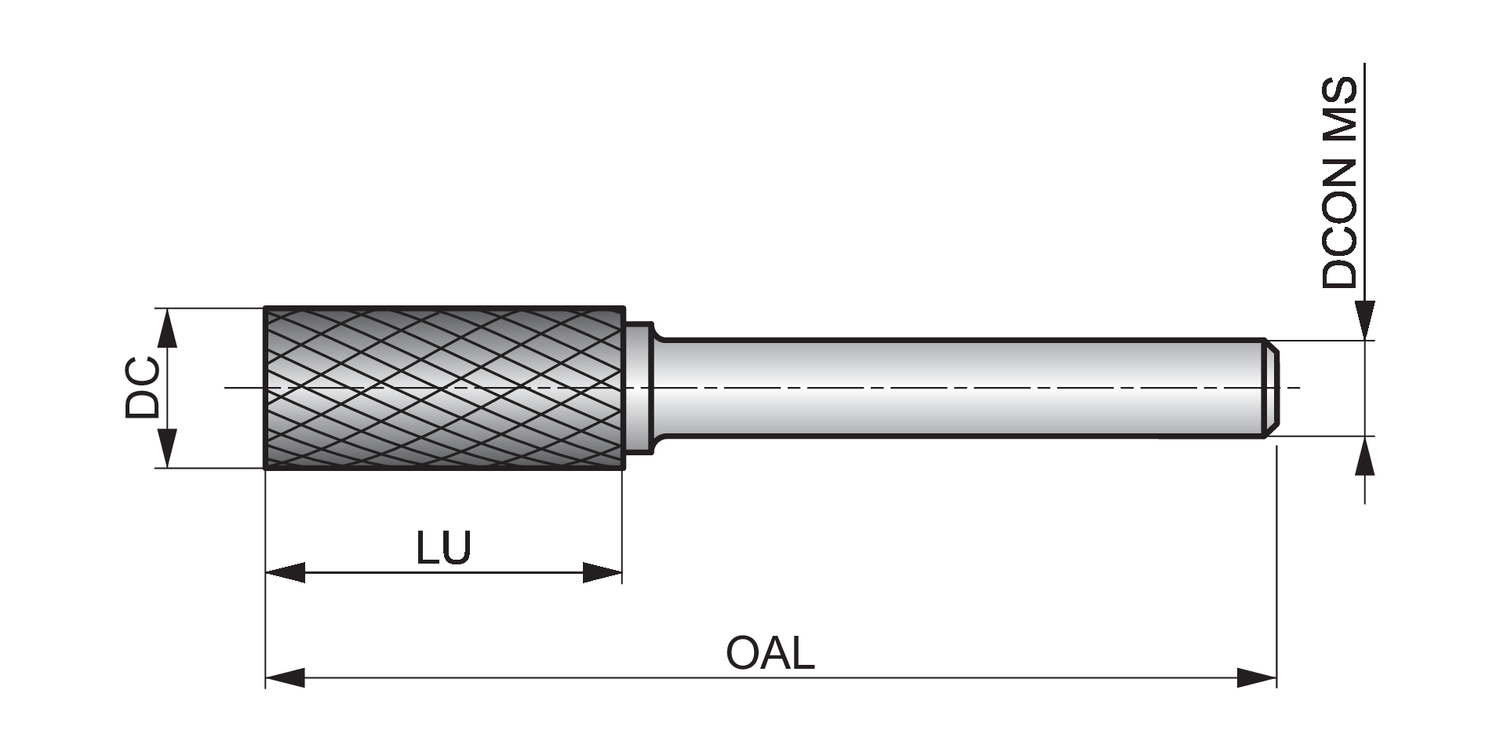

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
46814098
Material
HM
MID number
6814098
Ordering code ANSI
P8033.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Shank
Cylindrical shank
Usable Length - millimeter (LU)
14
P803 rotary carbide burrs have a DC geometry to break chips more efficiently and improve control when used by hand.
The burrs are designed for de-burring into 90 degree corners, being Shape B – cylinder with endcut.
With a bright finish to ensure good results by preventing workpiece material from sticking to the cutting surfaces of the tool, P803 rotary burrs are manufactured from premium carbide material to extend tool life and greatly improve performance at high speeds.
The toughened and hardened steel shank provides extra strength and rigidity to reduce vibrations and further improve tool life
