Dormer P803C3.0X3.0 6814105 Rotary Burr - Cylinder with endcut 3.00 mm x 3.0
MODEL 6814105
$13.03 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
B - Cylinder Shape with endcut
Burr Type Code (BTC)
Double Cut Geometry
BurrEndShot_DICT_SEL
End Cut Burr End
Coating
TiAlN
Coating property (CTP)
1

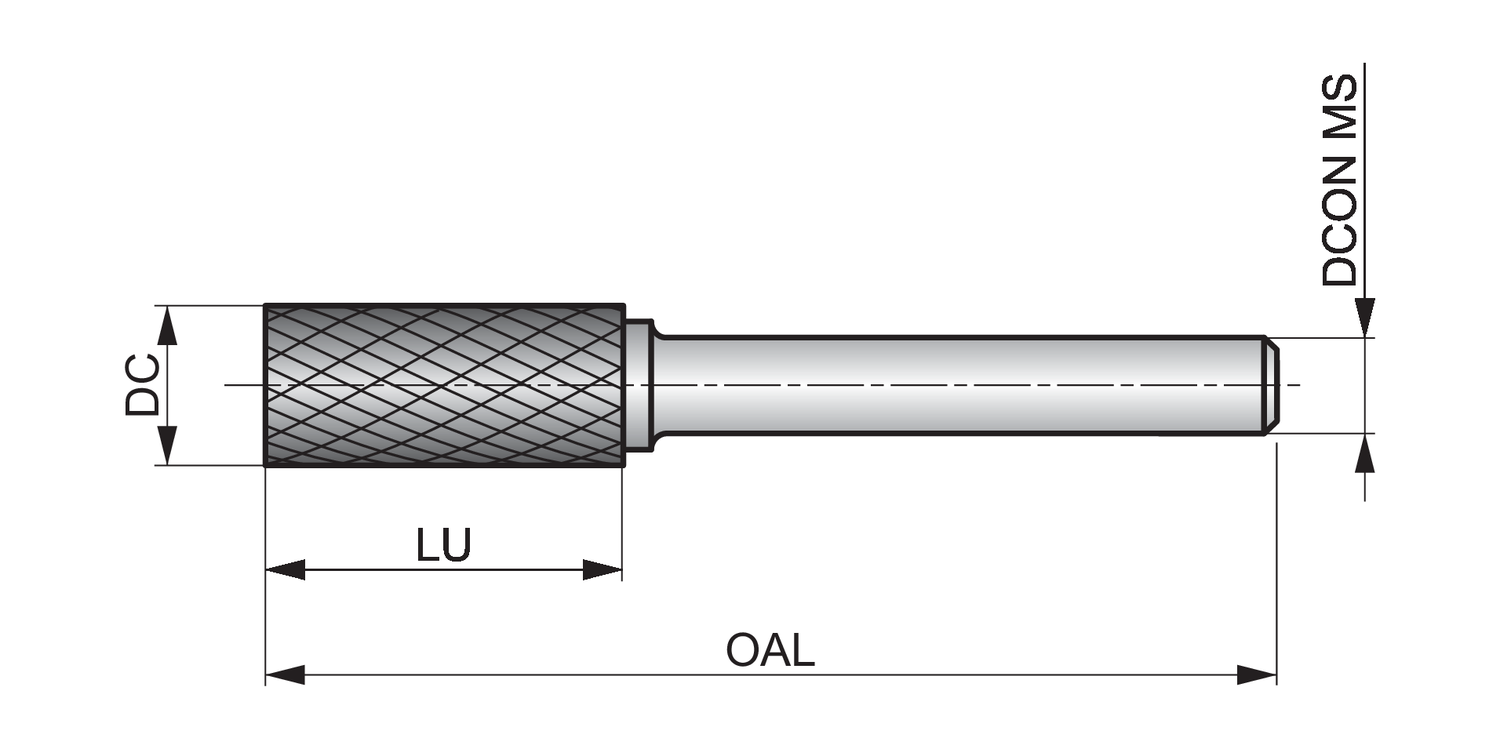

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
46814105
Material
HM
MID number
6814105
Ordering code ANSI
P803C3.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Shank
Cylindrical shank
Usable Length - millimeter (LU)
14
P803C rotary carbide burrs from Dormer come with a DC geometry for improved chip breaking, giving you more control when de-burring by hand.
The titanium aluminium nitride coating increases the service life of the burr and improves performance when used for longer periods at high speed, whilst the premium carbide material used in manufacture gives superior performance and further extends tool life at high speeds.
P803C rotary burrs are Shape B burrs – cylinder with endcut – for de-burring into 90 degree corners and have a toughened and hardened steel shank, providing extra strength and rigidity which decreases vibration and is a final aid to extended tool life
