Dormer Pramet P803C6.0X6.0 6814106 cylinder with endcut rotary burr, 6.00mm cutting diameter, solid carbide (HM) construction for long life in hard materials. Suitable for hardened steels, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. 6mm connection diameter with h6 shank tolerance.

Name: Dormer Pramet P803C6.0X6.0 6814106 cylinder with endcut rotary burr, 6.00mm cutting diameter, solid carbide (HM) construction for long life in hard ma
Brand: Dormer Pramet
Price: 26.45 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6814106

BRAND

Dormer Pramet

SKU

6083773

WEIGHT

0.055 lb

UOM

each

$26.45 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Burr Shape

B - Cylinder Shape with endcut

Burr Type Code (BTC)

Double Cut Geometry

BurrEndShot_DICT_SEL

End Cut Burr End

Coating

TiAlN

Coating property (CTP)

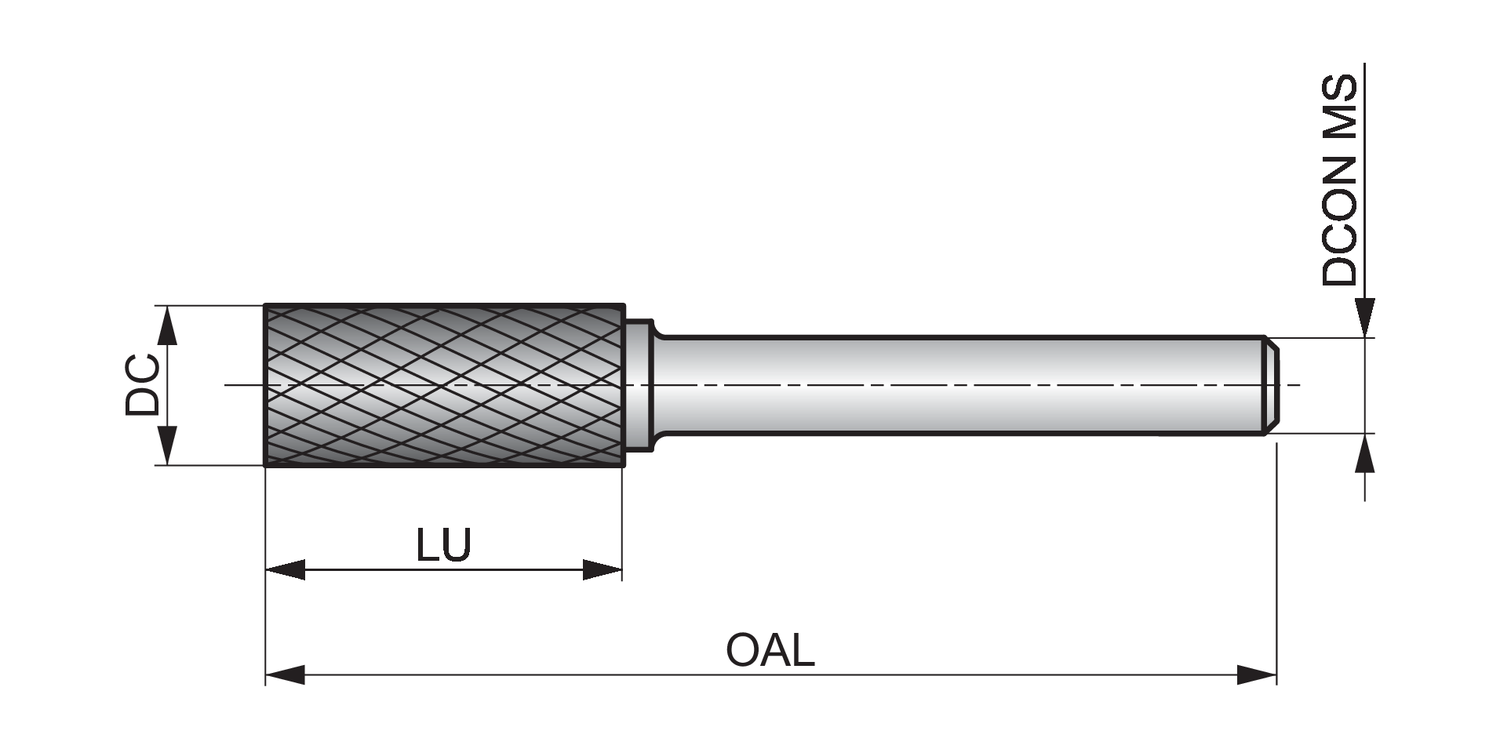

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cutting diameter - inch (DC)

0.2362

Cutting diameter - millimeter (DC)

EDP number

46814106

Material

MID number

6814106

Ordering code ANSI

P803C6.0X6.0

Overall length - inch (OAL)

1.9685

Overall length - millimeter (OAL)

Shank

Cylindrical shank

Usable Length - millimeter (LU)

P803C rotary carbide burrs from Dormer come with a DC geometry for improved chip breaking, giving you more control when de-burring by hand.

The titanium aluminium nitride coating increases the service life of the burr and improves performance when used for longer periods at high speed, whilst the premium carbide material used in manufacture gives superior performance and further extends tool life at high speeds.

P803C rotary burrs are Shape B burrs – cylinder with endcut – for de-burring into 90 degree corners and have a toughened and hardened steel shank, providing extra strength and rigidity which decreases vibration and is a final aid to extended tool life
