Dormer Pramet P805C8.0X6.0 6814119 ball nosed cylinder rotary burr, 8.00mm cutting diameter, 6.0mm shank diameter, solid carbide (HM) construction. Suitable for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard.
MODEL 6814119
$26.01 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
C - Ball Nosed Cylinder Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
TiAlN
Coating property (CTP)
1

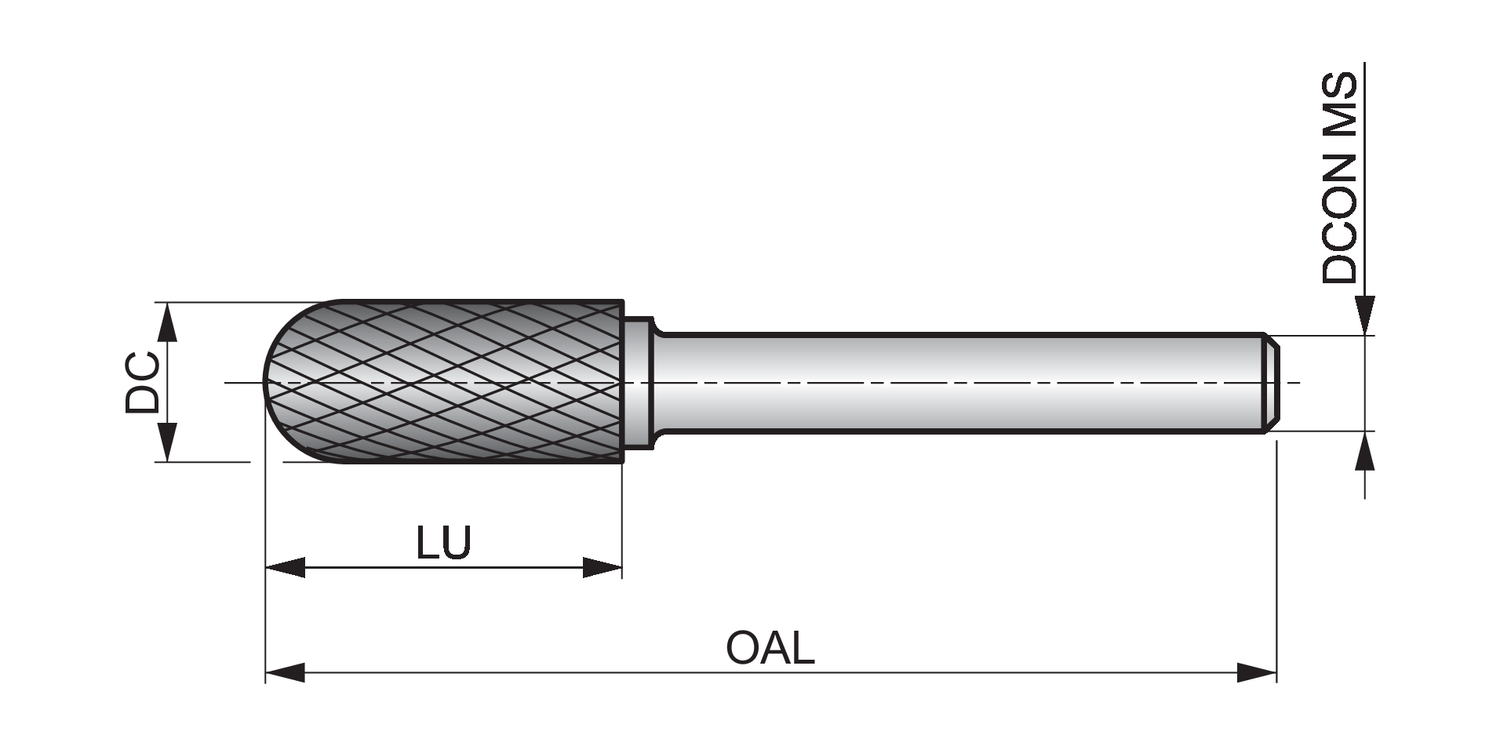

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h7
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
EDP number
46814119
Material
HM
MID number
6814119
Ordering code ANSI
P805C8.0X6.0
Overall length - inch (OAL)
2.5197
Overall length - millimeter (OAL)
64
Shank
Cylindrical shank
Usable Length - millimeter (LU)
19
P805C rotary carbide burrs have a titanium aluminium nitride coating to increase the service life of the burr and improve performance when in use at high speeds for extended periods.
The premium carbide material used in manufacture provides excellent performance and further extends tool life at high speeds.
With a DC geometry to break chips more effectively and improve control when used by hand, the tools have a toughened and hardened steel shank which reduces vibration by giving added rigidity and strength.
Yet another aid to increased tool life.
P805C rotary burrs have Shape C design (ball-nosed cylinder) with skip flute geometry and are perfect for de-burring in corners with a radius
