Image for Illustration purposes only. Actual product may vary

Dormer P8078.0X6.0 6814126 solid carbide rotary burr, ball shape, 8.00mm cutting diameter, 6mm shank with h7 tolerance. For hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard.

Name: Dormer P8078.0X6.0 6814126 solid carbide rotary burr, ball shape, 8.00mm cutting diameter, 6mm shank with h7 tolerance. For hardened materials, cast i
Brand: Dormer Pramet
Price: 21.3 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6814126

BRAND

Dormer Pramet

SKU

6083794

WEIGHT

0.038 lb

UOM

each

$21.30 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Burr Shape

D - Ball Shape

Burr Type Code (BTC)

Double Cut Geometry

Coating

Bright

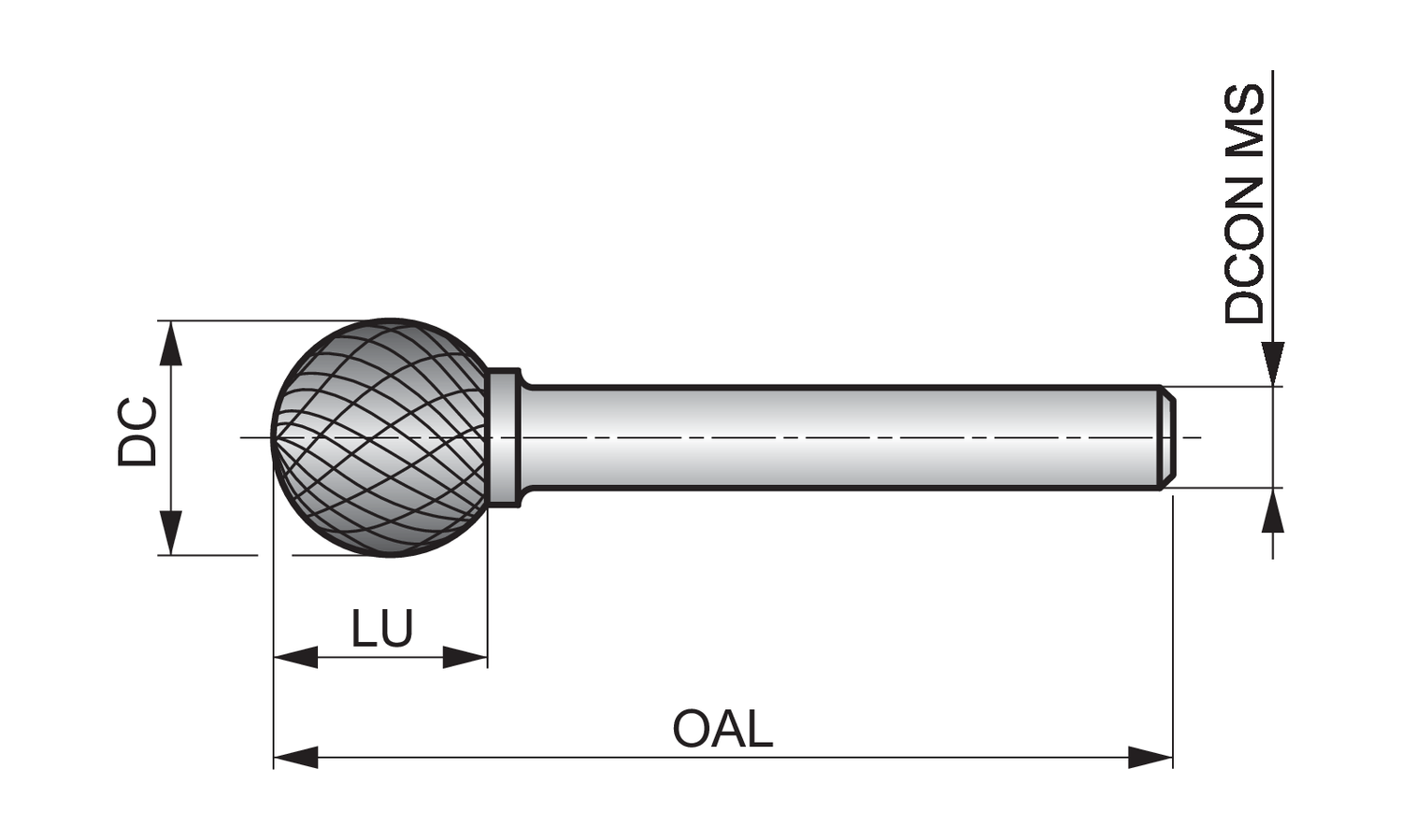

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cutting diameter - inch (DC)

0.315

Cutting diameter - millimeter (DC)

EDP number

46814126

Material

MID number

6814126

Ordering code ANSI

P8078.0X6.0

Overall length - inch (OAL)

2.0472

Overall length - millimeter (OAL)

Shank

Cylindrical shank

Usable Length - millimeter (LU)

P807 ball shaped (Shape D) rotary carbide burrs with skip flute geometry are designed for de-burring when used in slots or radius grooves.

Manufactured from premium carbide for extra performance and extended tool life at high speeds, they also have a steel shank which has been hardened and toughened for improved rigidity and strength, to decrease vibration and extends the life of the tool.

The tools all have a bright finish which prevents workpiece material from sticking to the cutting edges of the tool for a smoother, cleaner result.

To help break chips more efficiently and make it easier to control when using by hand, P807 rotary burrs have a DC geometry
