Dormer Pramet P8093.0X3.0 6814135 oval rotary burr, 3.00mm cutting diameter, solid carbide (HM) construction for extended tool life. Suitable for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, cast steel, and high-temperature alloys. 3mm connection diameter with h6 tolerance.
MODEL 6814135
$7.62 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER

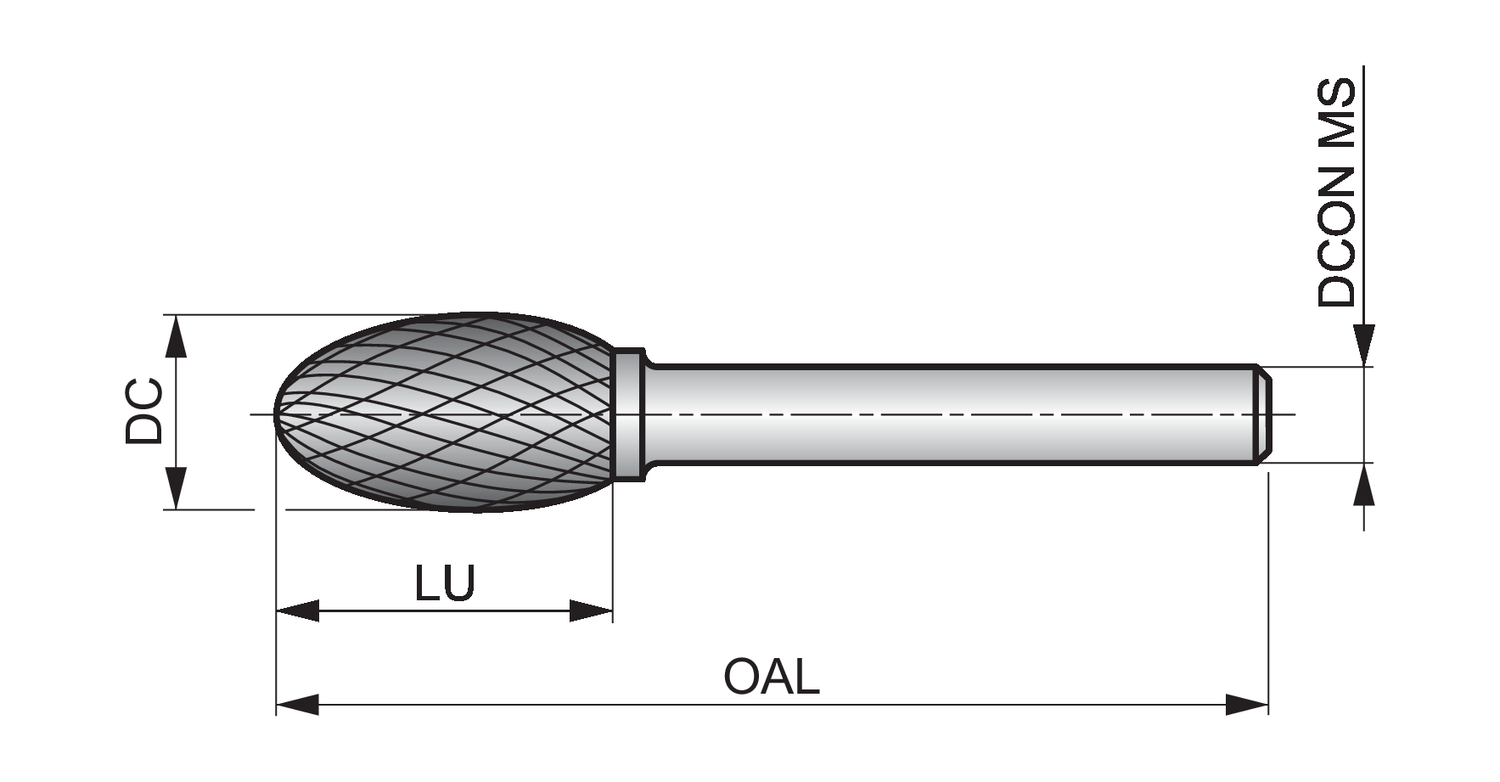

Burr Shape
E - Oval Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
Bright
Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
46814135
Material
HM
MID number
6814135
Ordering code ANSI
P8093.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Shank
Cylindrical shank
Usable Length - millimeter (LU)
6
P809 rotary carbide burrs, with a DC geometry to break ships more effectively and improve control by hand, are manufactured from premium carbide material which gives superior performance and extends tool life at high speeds.
Rigidity and strength which decreases vibration and further extends tool life is provided by the toughened and hardened steel shank.
P809 rotary burrs are oval shaped (Shape E) with skip flute geometry, enabling efficient de-burring when used in corners with radius.
For clean results after use, the burrs have a bright finish which prevents workpiece material from sticking to the cutting edges of the tool
