Dormer Pramet P8116.3X3.0 6814143 ball nosed tree rotary burr, 6.30mm cutting diameter, 3.0mm shank diameter, solid carbide (HM) construction. Suitable for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard.
MODEL 6814143
$17.74 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
F - Ball Nosed Tree Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
Bright

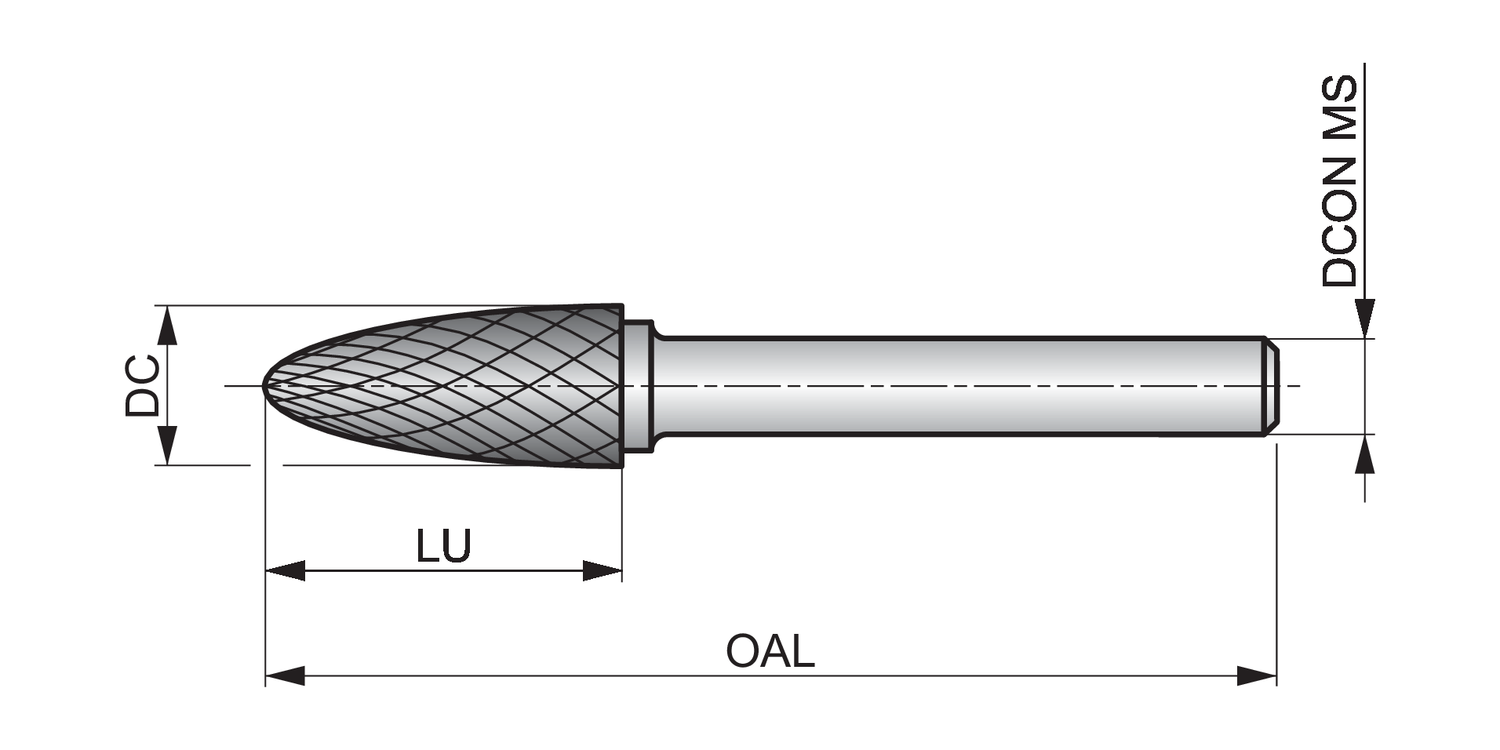

Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h7
Cutting diameter - inch (DC)
0.248
Cutting diameter - millimeter (DC)
6.3
EDP number
46814143
Material
HM
MID number
6814143
Ordering code ANSI
P8116.3X3.0
Overall length - inch (OAL)
1.7717
Overall length - millimeter (OAL)
45
Shank
Cylindrical shank
Usable Length - millimeter (LU)
12.7
P811 rotary carbide burrs from Dormer are ball-nosed tree shape with skip flute geometry (Shape F) for de-burring on curved surfaces.
The bright finish ensures clean results by preventing workpiece material from sticking to the cutting edges of the tool.
To extend tool life by reducing vibrations, the steel shanks is toughened and hardened for extra rigidity and strength.
DC geometry breaks the chips more effectively which improves control when used by hand.
P811 rotary burrs are manufactured from premium carbide material for excellent performance and extended tool life at high speeds
