Image for Illustration purposes only. Actual product may vary

Dormer Pramet P8139.6X6.0 6814157 pointed tree rotary burr, 9.60mm cutting diameter, 6mm shank with h7 tolerance. Solid carbide construction for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard.

Name: Dormer Pramet P8139.6X6.0 6814157 pointed tree rotary burr, 9.60mm cutting diameter, 6mm shank with h7 tolerance. Solid carbide construction for harde
Brand: Dormer Pramet
Price: 30.26 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6814157

BRAND

Dormer Pramet

SKU

6083825

WEIGHT

0.055 lb

UOM

each

$30.26 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Customers Also Bought

#132412

DODGE 128715 P2B-DL-200 2 BORE

Brand

Dodge

Model

P2B-DL-200

Add to cart to see price

Free shipping

#6076993

Dormer C24728.0 5984876 28mm slot drill, 6-flute, 30° helix, powder metallurgy cobalt HSS (HSS-E-PM), DIN 844 K standard. 25mm connection diameter, 45mm max depth of cut, 12° radial rake. For non-ferrous metals, steel, cast steel, and high-temperature alloys.

Brand

Dormer Pramet

Model

5984876

$219.36 Each

Free shipping

#6083764

Dormer P80312.7X6.0 6814103 cylinder with endcut rotary burr, 12.70mm cutting diameter, 6mm shank, solid carbide (HM). Suitable for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard.

Brand

Dormer Pramet

Model

6814103

$44.71 Each

Free Shipping orders over $100

#6083769

Dormer P8038.0X6.0 6814101 cylinder with endcut rotary burr, 8.00mm cutting diameter, 6.0mm shank diameter, solid carbide (HM) construction. Suitable for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. Cylindrical shape with endcut capability for deburring and finishing applications.

Brand

Dormer Pramet

Model

6814101

$26.63 Each

Free Shipping orders over $100

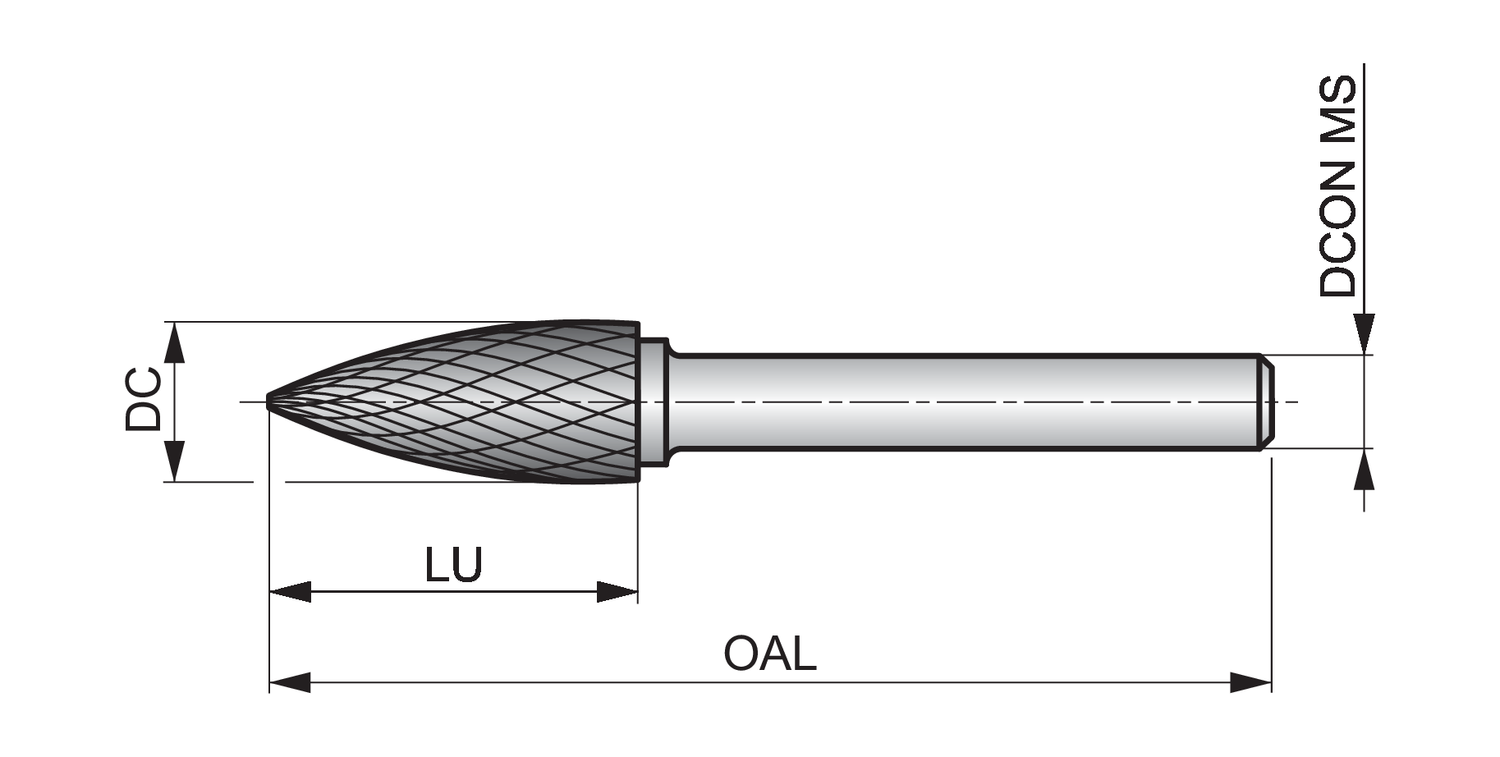

Basic Standard

DORMER

Burr Shape

G - Pointed Tree Shape

Burr Type Code (BTC)

Double Cut Geometry

Coating

Bright

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cutting diameter - inch (DC)

0.378

Cutting diameter - millimeter (DC)

9.6

EDP number

46814157

Material

MID number

6814157

Ordering code ANSI

P8139.6X6.0

Overall length - inch (OAL)

2.5197

Overall length - millimeter (OAL)

Shank

Cylindrical shank

Usable Length - millimeter (LU)

One of Dormer’s range of rotary carbide burrs, P813 rotary burrs are made from premium carbide material which will ensure a long tool life and great performance at high speeds.

They are designed with a pointed tree shape (Shape G) for de-burring in tight corners.

The DC geometry on the burr breaks chips more effectively and improves control when de-burring by hand, whilst the toughened and hardened steel shank makes the tool stronger and more rigid to reduce vibration and so extend the life of the tool.

Completing the main feature of P813 rotary burrs is the bright finish which stops workpiece material from sticking to the cutting surface of the burrs to give you a smoother, cleaner finish
