Dormer P813C3.0X3.0 6814160 pointed tree rotary burr, 3.00mm cutting diameter, solid carbide construction for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. 3mm connection diameter with h6 tolerance. DORMER standard.
MODEL 6814160
$11.78 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER

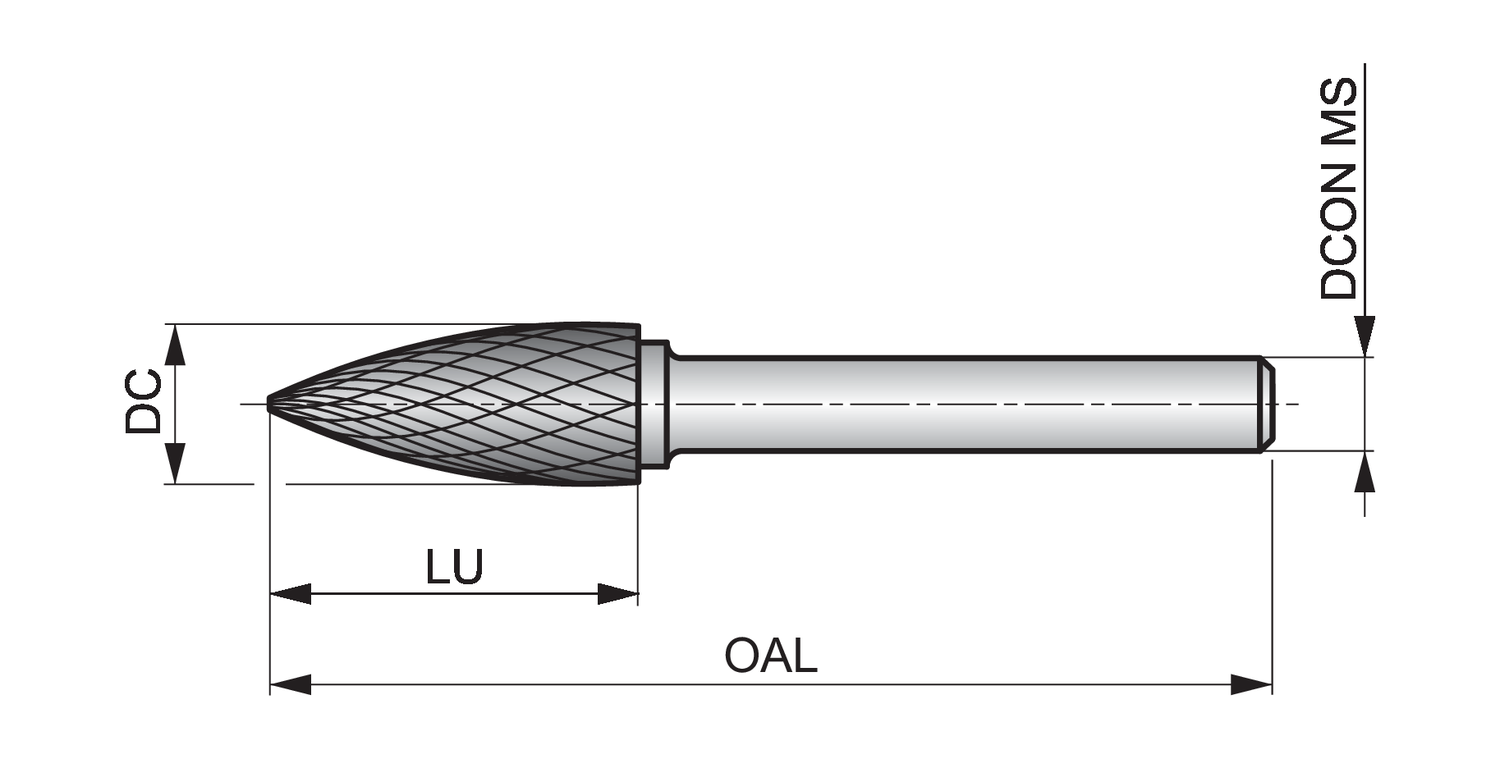

Burr Shape
G - Pointed Tree Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
TiAlN
Coating property (CTP)
1
Connection diameter - inch (DCON MS)
0.1181
Connection diameter - millimeter (DCON MS)
3
Connection diameter tolerance machine side (TCDCONMS)
h6
Cutting diameter - inch (DC)
0.1181
Cutting diameter - millimeter (DC)
3
EDP number
46814160
Material
HM
MID number
6814160
Ordering code ANSI
P813C3.0X3.0
Overall length - inch (OAL)
1.4961
Overall length - millimeter (OAL)
38
Shank
Cylindrical shank
Usable Length - millimeter (LU)
14
P813C rotary carbide burrs have a pointed tree shape (Shape G) which allows you to access tight corners for effective de-burring.
Manufactured from premium carbide material, the burrs will give you great performance with extended tool life at high speeds, whilst the toughened, hardened steel shank improves strength and rigidity so you get less vibration which, in turn, means the tool will last longer.
P813C rotary burrs have a titanium aluminium nitride coating to further improve service life and give better performance when using for longer periods at high speeds, and a DC geometry which breaks chips more efficiently, giving you greater control when de-burring by hand
