Dormer Pramet P813C6.0X6.0 6814161 pointed tree rotary burr, 6.00mm cutting diameter, 6mm shank, Solid Carbide. For hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard.

Name: Dormer Pramet P813C6.0X6.0 6814161 pointed tree rotary burr, 6.00mm cutting diameter, 6mm shank, Solid Carbide. For hardened materials, cast iron, sta
Brand: Dormer Pramet
Price: 29.25 USD
Availability: InStock
Rating: 5.0 (3 reviews)

MODEL 6814161

BRAND

Dormer Pramet

SKU

6083828

WEIGHT

0.043 lb

UOM

each

$29.25 Each

Prices are subject to change

FREE SHIPPING ON ORDERS OVER $100

Select Quantity

GET A QUOTE

Typically Ships in: 1 day

Returnable: Yes

Basic Standard

DORMER

Burr Shape

G - Pointed Tree Shape

Burr Type Code (BTC)

Double Cut Geometry

Coating

TiAlN

Coating property (CTP)

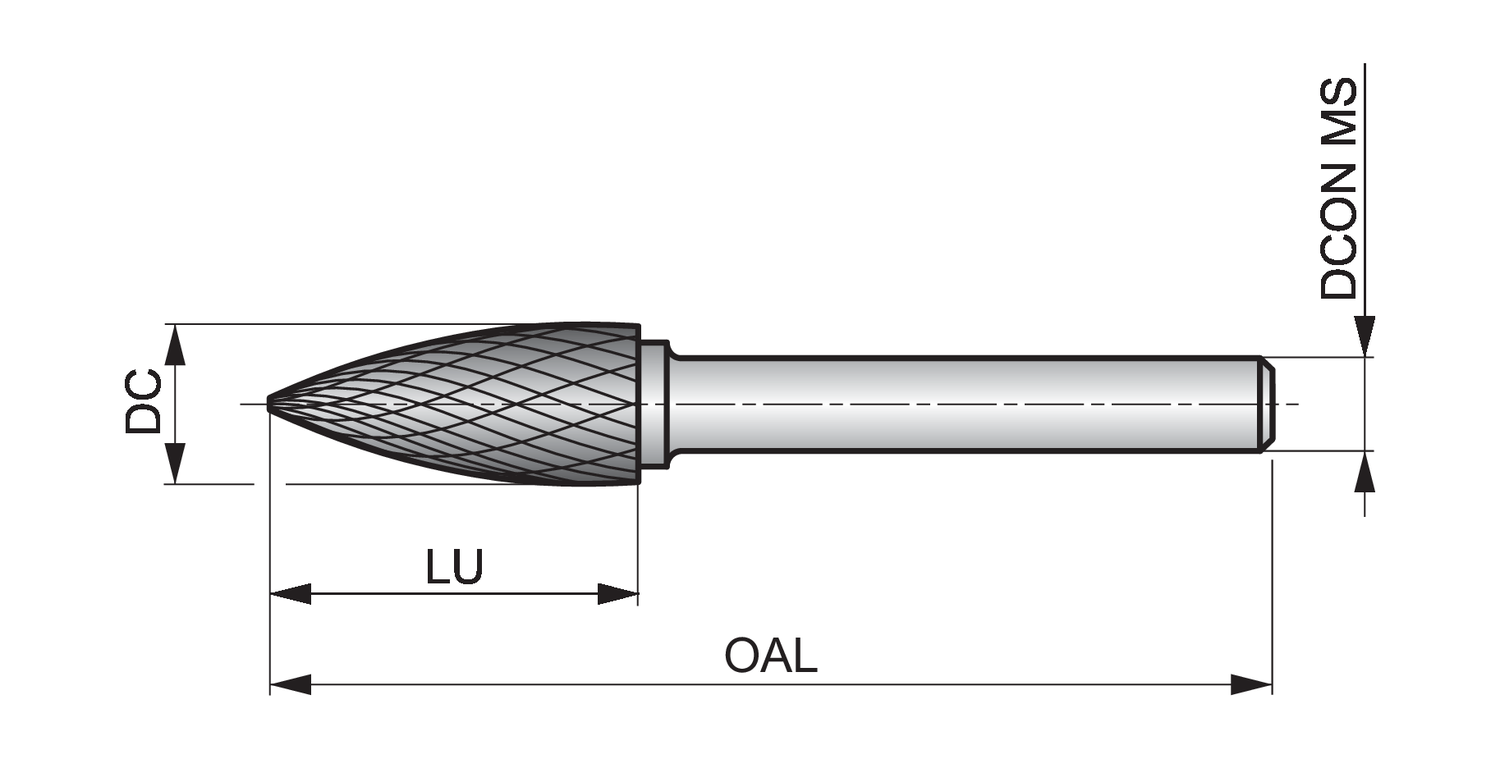

Connection diameter - inch (DCON MS)

0.2362

Connection diameter - millimeter (DCON MS)

Connection diameter tolerance machine side (TCDCONMS)

Cutting diameter - inch (DC)

0.2362

Cutting diameter - millimeter (DC)

EDP number

46814161

Material

MID number

6814161

Ordering code ANSI

P813C6.0X6.0

Overall length - inch (OAL)

1.9685

Overall length - millimeter (OAL)

Shank

Cylindrical shank

Usable Length - millimeter (LU)

P813C rotary carbide burrs have a pointed tree shape (Shape G) which allows you to access tight corners for effective de-burring.

Manufactured from premium carbide material, the burrs will give you great performance with extended tool life at high speeds, whilst the toughened, hardened steel shank improves strength and rigidity so you get less vibration which, in turn, means the tool will last longer.

P813C rotary burrs have a titanium aluminium nitride coating to further improve service life and give better performance when using for longer periods at high speeds, and a DC geometry which breaks chips more efficiently, giving you greater control when de-burring by hand
