Dormer Pramet P815C8.0X6.0 6814170 flame-shaped rotary burr, 8.00mm cutting diameter, 6.0mm shank diameter, solid carbide (HM) construction. Suitable for hardened materials, cast iron, stainless steel, non-ferrous metals, steel, and high-temperature alloys. DORMER standard, h7 shank tolerance.
MODEL 6814170
$29.42 Each
Prices are subject to change
FREE SHIPPING ON ORDERS OVER $100
Select Quantity
Typically Ships in: 1 day
Returnable: Yes
California Prop 65 warningBasic Standard
DORMER
Burr Shape
H - Flame Shape
Burr Type Code (BTC)
Double Cut Geometry
Coating
TiAlN
Coating property (CTP)
1

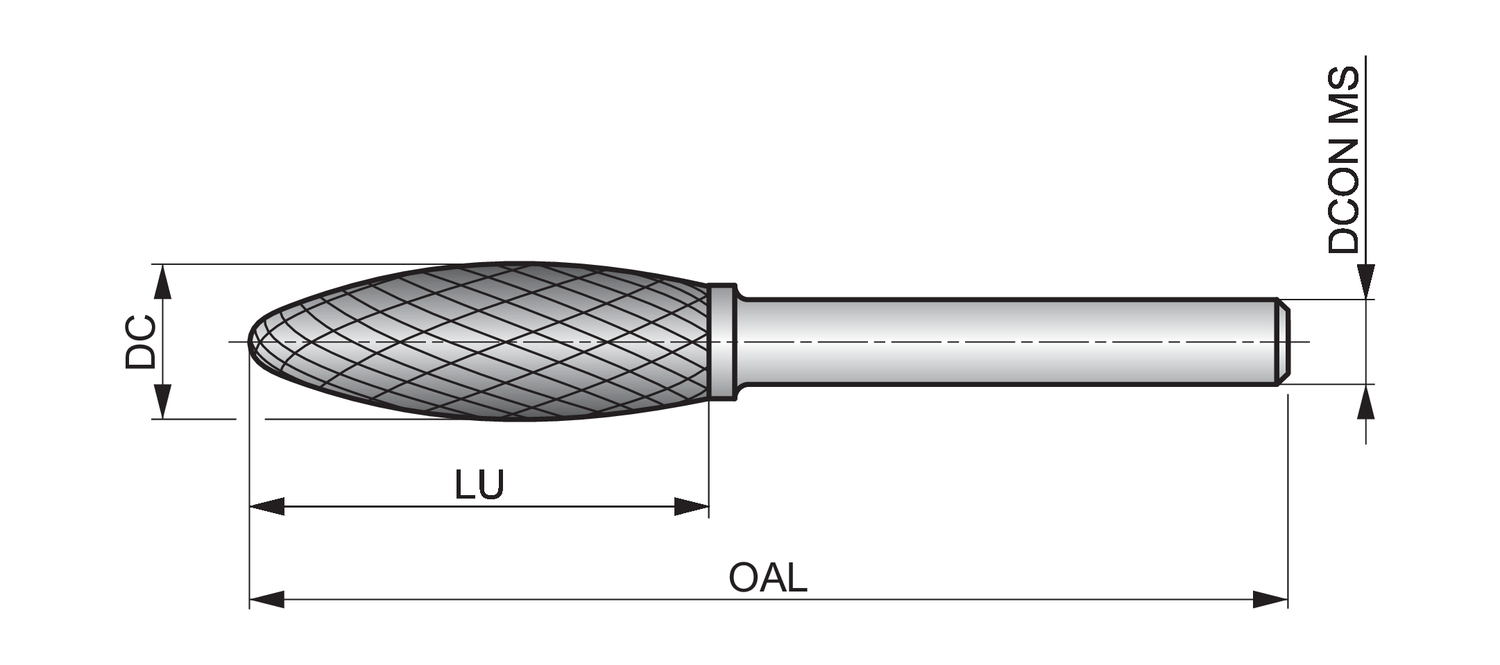

Connection diameter - inch (DCON MS)
0.2362
Connection diameter - millimeter (DCON MS)
6
Connection diameter tolerance machine side (TCDCONMS)
h7
Cutting diameter - inch (DC)
0.315
Cutting diameter - millimeter (DC)
8
EDP number
46814170
Material
HM
MID number
6814170
Ordering code ANSI
P815C8.0X6.0
Overall length - inch (OAL)
2.5197
Overall length - millimeter (OAL)
64
Shank
Cylindrical shank
Usable Length - millimeter (LU)
19
P815C rotary carbide burrs come with a toughened and hardened steel shank for extra rigidity and strength, which reduces vibration so the tool lasts longer.
Cut to a DC geometry, the burrs will give you efficient chip breaking to improve control when using by hand, whilst the titanium aluminium nitride coating increases the life of the burrs and improves performance when used at high speeds for long periods.
Manufactured from premium carbide material, they provide superior performance and further enhanced tool life at high speeds.
P815C rotary burrs, with skip flute geometry and Shape H (flame shape), will efficiently de-burr curved surfaces
